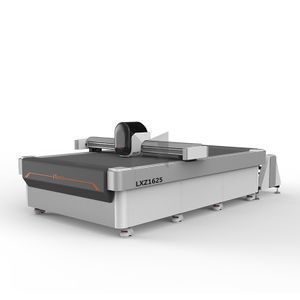

Germany Vibrating Knife packaging cutting machine Oscillating Blade Leather Cutter

Supplier: Jinan Lxshow Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Vivian Xie
Price: $10100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	2 years;	Packaging Detail:	Strong plywood;
Safety device:	Using infrared sensors, responsive, safe and reliable.;	Power(W):	11KW;
Automatic Grade:	Automatic;	After-sales Service Provided:	Online support,Video technical support;
Tool configuration:	Multiple cutting knives;	Port:	Qingdao;
Cutting materials:	Leather, cloth,leather,pvc,Silicon,rubber etc.;	Cutting speed:	200-800mm/s(according to different cutting materials);
Brand Name:	UNICHCNC;	Rated power:	11KW;
Weight:	1600kg;	name:	oscillating knife cutting machine;
Certification:	CE;	Payment Terms:	L/C,T/T,Western Union;
Condition:	New;	translational velocity:	800-1200mm/s;
Working area:	2500*1600mm;	Voltage:	380V±10%/220v/110v;
Type:	Cutting Machine;	Supply Ability:	150 Set/Sets per Month oscillating knife cutting machine;
Dimension(LWH):	215035001350mm;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Farms,Home Use,Construction works ,Energy & Mining,Advertising Company;
Place of Origin:	Shandong China;	flat plate table:	flat plate table;
Repeated accuracy:	≤0.1mm;

Germany Vibrating Knife packaging cutting machine Oscillating Blade Leather Cutter

Product Advantages

Samples

Digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board,rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Product Description

Features :

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

Model	LXZ1625	LXZ1816-A		LXZ1625-A
Working area	1600×2500mm	1800*1600mm		1600×2500mm
Machine size (mm)	215035001350	240021501350		220035001350
Rated power	11KW	11KW		11KW
Fixed mode	flat plate table	flat plate table		Auto feeding type table
Multifunctional head	Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.
Tool configuration	Multiple cutting knives
Safety device	Using infrared sensors, responsive, safe and reliable.
Translational velocity	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickness	≤22mm(according to different cutting materials)
Cutting materials	Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy	≤0.1mm
Capacity	2GB
Transmission system	imported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction system	HP-GL compatible format

Voltage	380V±10%
Other configuration	Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump (We can customized machine production as your requirements)
Machine Weight:KG	1600		1600	1800

Company Information

JINAN UNICH MACHINERY CO.,LTD

Is established in July 2004 ,owns more than 500 square meters of researching and office space,

more than 32000 square meters factory.All machines ,passed the European Union CE authentica-tion,American FDA certificate and are certified to ISO 9001. Products are sold to USA, South

east Asia,Europe,Canada, Australia, Africa etc,more than 120 countries and areas, and supply

OEM service for more than 30 manufactures.

Our Products includes All kind of

1. Cnc oscillating knife cutting machine.

2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.

3. Fiber cutting machine.

4. Plasma cutting machine.

5. Cnc router machine.

6. Co2 laser machine and so on.

We can also customized non-standard assist equipment as your detailed work requirements.

FAQ

1).Q: I am not sure if this machine suitable for my work?

A: Don't worry, just tell me your working materials, max working area and
cutting thickness, then I will recommend you the most suitable machine for you.
2).Q:I am worrying about the service and operation of your machine?
A: Don't worry, if there is anything wrong with your machine within the
guarantee time, we will change a new one for you. And we will provide with the
English operation manual and video for your reference.
3).Q: How much will it cost shipping to my country?
A:Please tell me your nearest port or your location,then i will confirm to our forwarder.
Then I can tell you how much it will cost.
4).Q: Are you factory or trading company?
A:We are factory, which manufactures, with 14 years experience in this area.
Welcome to visit our factory whenever.
