60 tons single side automatic feeding hydraulic round bubble cleaning/leather/sponge scrubbing/pad/die cutting machine

Product details
Showroom location:not anyPackaging Details:Inner packing: Stretch film packing Outer packing: Wooden box packing
Name:Die cutting machineVoltage:380v
Health status:newbrand:ding dong
type:Cutting Machinepayment terms:L/C, T/T
Marketing Type:2019 Hot ProductsSupply capacity:100 sets per month
Origin:Guangdong, ChinaWork area:1600*800mm
Warranty:2 yearsport:Foshan Port/Guangzhou Port
stroke:40-190mmApplicable industries:manufacturing plant
Mechanical test report:not availableAutomatic level:automatic
Core components:enginePackage preview:
Dimensions (L*W*H):2300*2350*1500Package Size:2400*2450*1700
Video shipment inspection:ifstrength:5.5
Core component warranty:2 yearsOil capacity:350L
weight:3800 kg
Product Description

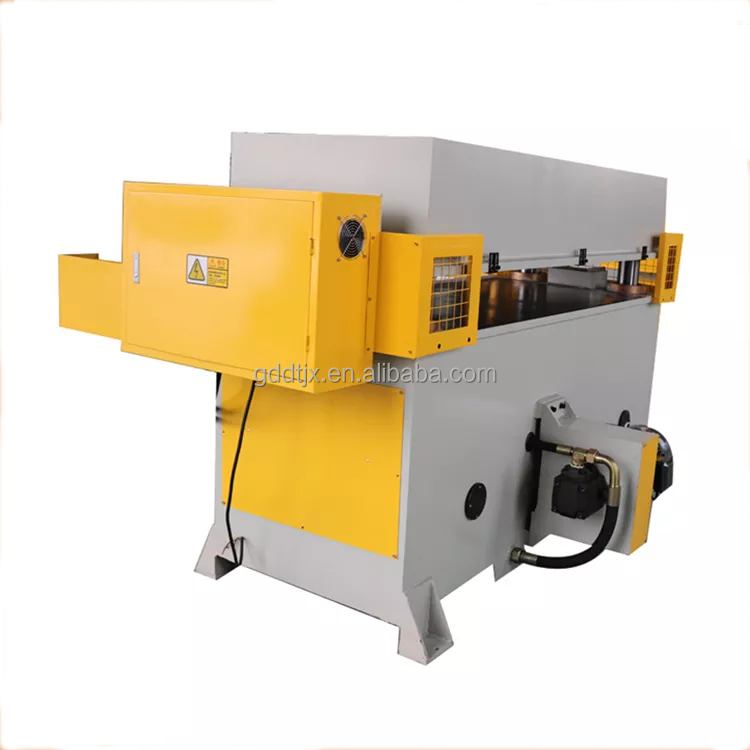

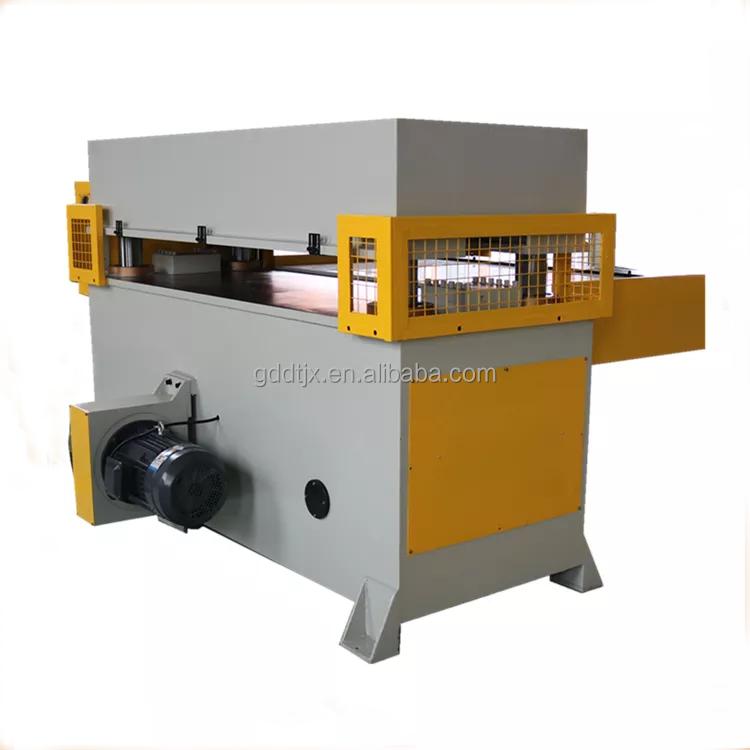

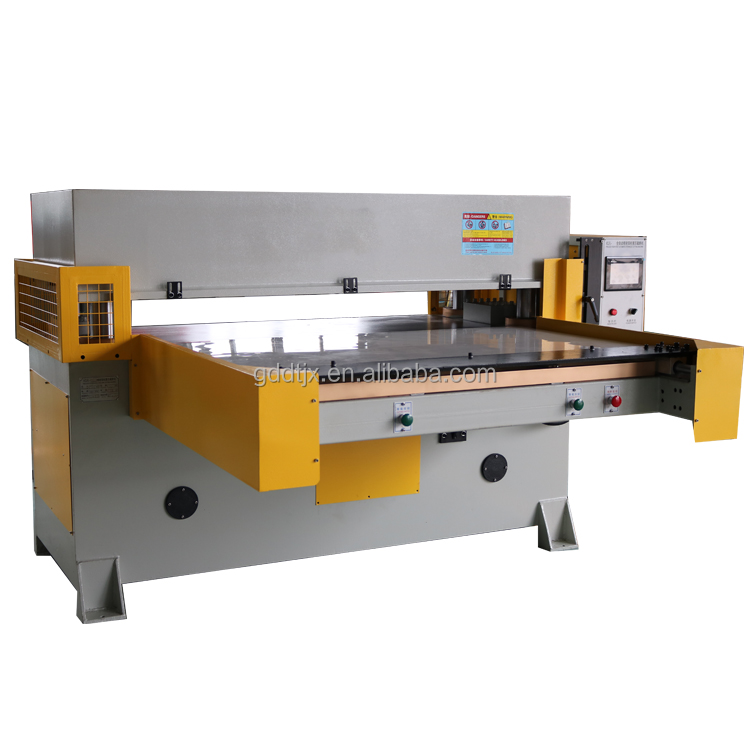

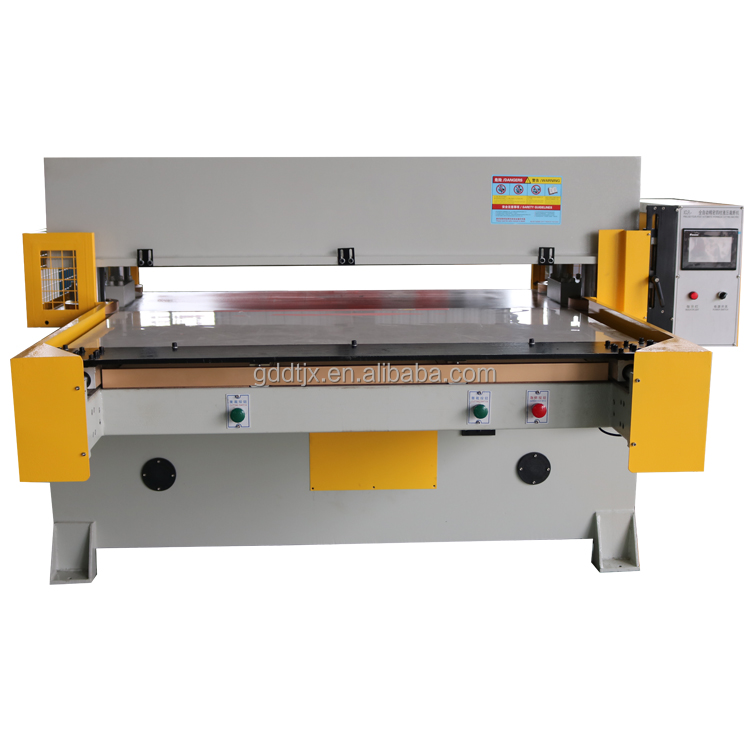

DT-761 single-sided hydraulic automatic feeding die-cutting machine
Function:
The single-sided automatic feeding cutting machine is widely used in clothing, shoemaking, leather, sponge, bags, car decoration, hats, plastic packaging, packaging, toys, stationery, polyurethane, processing and air conditioning and refrigeration, etc.

feature:
1 It is widely used in forming molds in various industries, and is used for cutting processing of various non-metallic materials. 2. The central oil supply automatic lubrication system for all sliding parts ensures the life and precision of the machine. 3. The unique setting structure, with cutter and cutting depth setting, makes stroke adjustment simple and accurate. 4. The installation of unilateral automatic feeding device greatly improves the production efficiency of the whole machine and makes the operation easier. 5. Double cylinders, precision four-column double-crank connecting rod balance structure to ensure the same cutting depth at each cutting position. 6. During slow cutting, the pressure plate is in contact with the cutter, so that there is no size error between the upper and lower parts of the cut material.
Technical Parameters
Model
DT-761
Name
Single side die cutting machine
machine weight
3500KG
package weight
3800 kg
Machine size
2300*2350*1500
Package Size
2400*2450*1700mm
stroke
0-130mm
Work area
1600*800mm
cutting force
60 tons
oil capacity
350L
Voltage
380V/50Hz
strength
5.5kw
