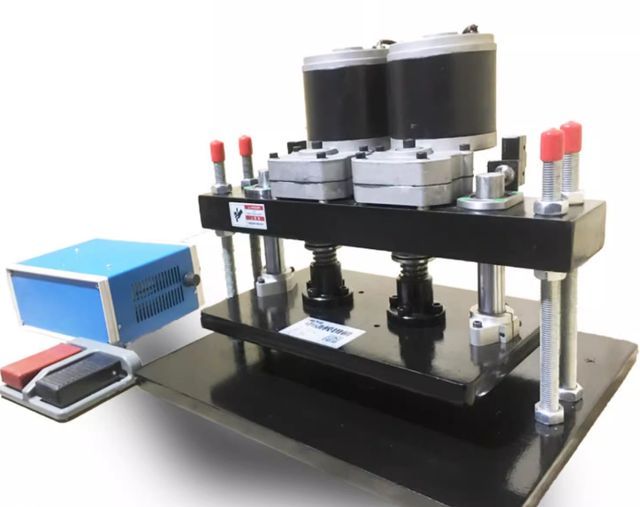

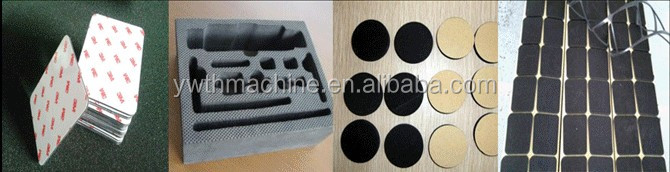

It is a multifunctional punch that can be used for punching leather, cloth, rubber, plastic, cardboard and other materials.
A more user-friendly design to meet the needs of different groups of people!
feature
1. Durable, made of high quality steel.

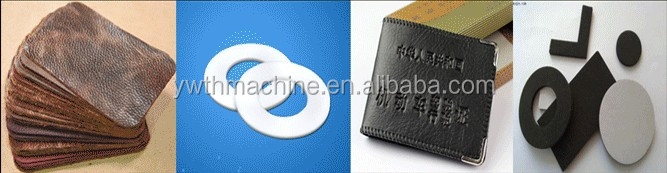

2. Very suitable for cutting and embossing leather, paper, PU, and fabric.
3. Two motors can generate a huge pressure of 4.5 tons.
4. Maximum pressure plate is 350*220mm.
5. The height of the pressing space can be changed by adjusting the screw.
6. There is no length limit on the shape of the mold, and shapes of any length can be made.
Upper platen size | 350*220mm |
Upper platen stroke | <40mm |
Adjustable spacing Upper and lower pressure plates |
<100mm |
Feed opening width | 390 mm |
Output pressure | 4.5 tons |
Control method | Button/foot pedal optional |
input voltage | 220V/110V optional |
Motor power | 1600W |
Movement speed | 6mm/sec |
Packing size | 65*40*40cm |
northwest | 77kg |
