ATOM Hydraulic Shoe Press Swing Arm Cutting Machine

Product details
net weight:880 kgAfter warranty service:Video technical support, online support
Cutting pressure:25 tonsproduct name:Swing Arm Atom Cutter
State of health:usedVoltage:220v/380v
strength:1 HPpayment terms:T/T, Western Union, MoneyGram
Mechanical test report:ifplace of origin; place of origin:Guangdong, China
Gross weight:900 kgweight:880KGS
brand:atomShowroom location:not any
Local service location:not anyyear:2013
Supply capacity:10 groups per weekMarketing Type:normal product
Video shipment inspection:ifWarranty:1 month
Core components:motor, water pumpApplicable industries:Shoes, Belts, Bags
Packaging Details:Pallets/Plywood BoxesCore component warranty:1 month
Types of:Cutting MachineCertification:Isto
Stoke:90mmArm Width:37cm
After-sales service provided:Online support, video technical supportCutting table:900x450mm
Automatic level:semi-automaticDimensions (L*W*H):100X100X150CM
Package preview:size:100x100x150cm
strength:1 HPport:Shenzhen, China

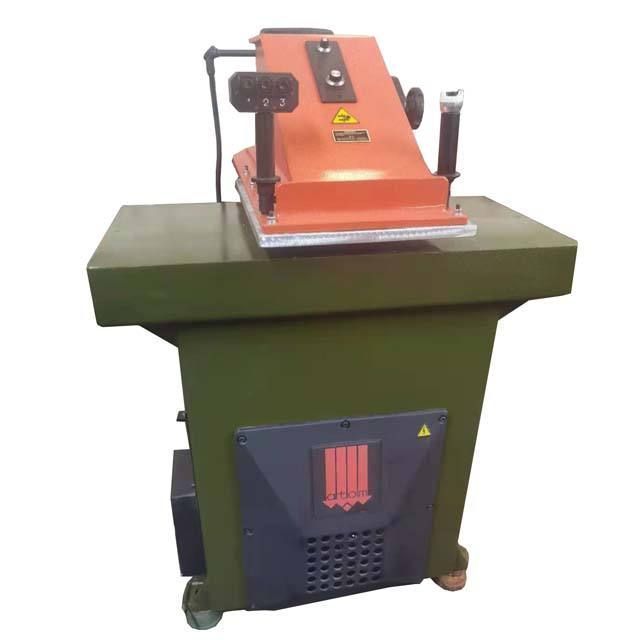

Used Shoe ATOM Hydraulic Press Swing Arm Cutting Machine

Product Description



Brand: Atom

Model: VS925



The remodeled machine is in excellent working condition.

The swing beam cutting machine is extremely easy to use, the cutting stroke is easy to adjust, and the operator can switch between multiple height cutting dies without any settings or adjustments.

Control buttons are ergonomic for operator comfort. The buttons are controlled by a two-hand safety relay, which means the buttons need to be activated 5/10 sec/sec between each other to allow the cutting stroke to activate, and need to be continuously activated to maintain the cutting stroke.

Cutting power can be easily adjusted if desired by movement of a simple potentiometer on the cutting beam.



Specification



Technical data:

Model: VS925

Cutting table (mm)

900x450mm
Arm width(mm) 37cm
maximum. cutting force 25
maximum. stroke 90mm
Motor Power 1 HP
Voltage 380V/220V, three-phase
weight 880 kg
size 100x100x150cm



detailed image





Other models: VS922
