MachineryOffers

Double shaft paddle dry mortar mixer for Automatic dry mortar line

Product details
Warranty:1 year;Port:Qingdao port;
Paddle blade quantity:2*14;Certification:ISO/CE;
Supply Ability:200 Set/Sets per Month dry mortar mixer;Packaging Detail:1.20GP,40HQ standard exporting container 2.FCL:Wire cables are used for fastening the machine on the trailer or inside the container. Cork wood are placed in front or behind the machine to protect it.;
Power(W):15kw;After-sales Service Provided:Online support,Video technical support;
product type:dry mortar mixer;Motor power (kw):15 kw;
Weight:1500kg;Features:Biax Paddle Structure;
Dimension(L*W*H):1850*1950*1180mm;Local Service Location:None;
Payment Terms:L/C,T/T,Western Union;After-sales Service Provided:Engineers available to service machinery overseas;
Total weight (kg):1500 kg;Application:Dry Mator Production Line;
Rotate speed (r/min):43 r/min;Applicable Industries:Manufacturing Plant,Construction works ;
Voltage:AC380V;Mixing cycle time (s):0.5-2.5mins;
Showroom Location:None;Condition:New;
Place of Origin:Henan China;Discharge capacity (ton/batch):1 m3/batch;
Brand Name:DiHai;After Warranty Service:Video technical support,Online support,Spare parts;
Key Selling Points:Automatic;

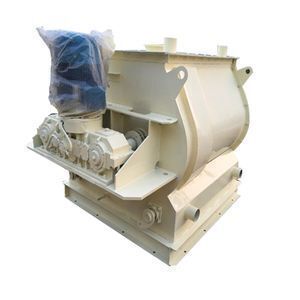

  Double shaft paddle dry mortar mixer for Automatic dry mortar line



Product Description





1.Description of dry mortar mixer

dry mortar mixer adopts the paddle structure. There materials can lose weight instantly at the critical parabolic rotate speed so that the best mixing effect can be achieved, and also the violent turnover speed shortens them mixing time to large the extent. This machine is widely applied in the equipments of unitized mass production lines.

 2.Main parameters of dry mortar



Item

DWZ1500

Discharge capacity

1.5 m3/batch

Mixing time

0.5-2.5mins

Motor power

15 kw

Shaft rotate speed

43 r/min

Coefficient of Variation(CV)

≤5%

Paddle blade type

Detachable

Paddle blade quantity

2*14=28pcs

Total weight

1500 kgs

Overall dimension (L*W*H) (mm)

1850*1950*1180

Remarks

Mixing cycle time depend on the material, if there is fiber in

raw material ,then mixing time should be about 3 minutes







3.Application of dry mortar

 This machine is upgraded based on the traditional dual axle mixer to produce dry mortar. Zero gravity mixer mainly used in the producing of cracking mortar, insulation mortar, binding mortar, plaster mortar, floor mortar, medium and high-grade putty powder etc.

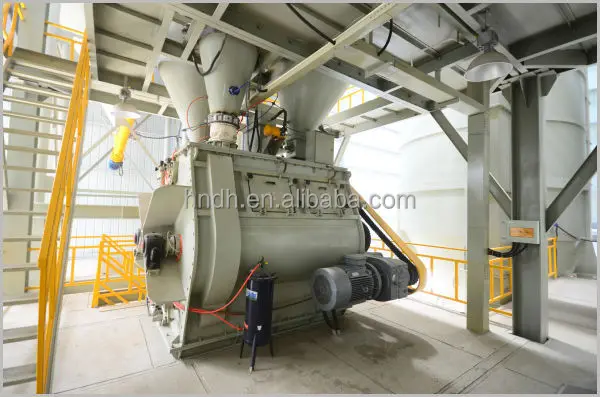

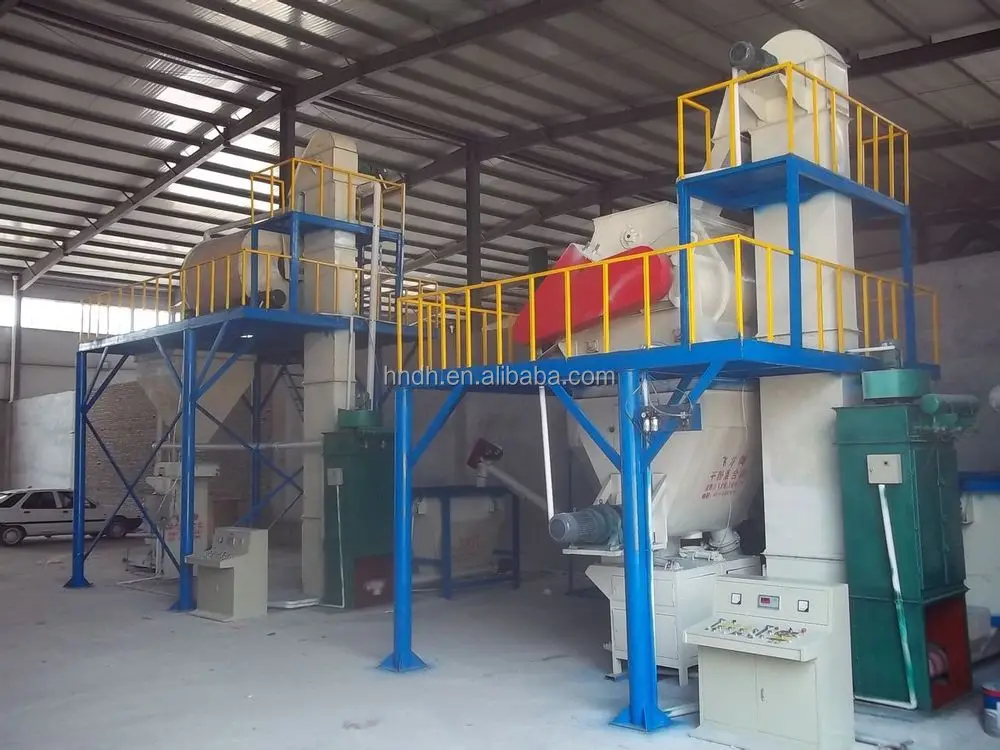

Worksite

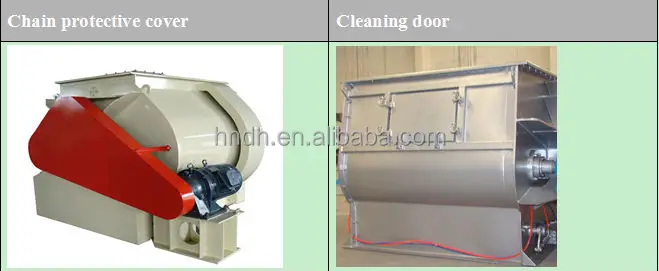

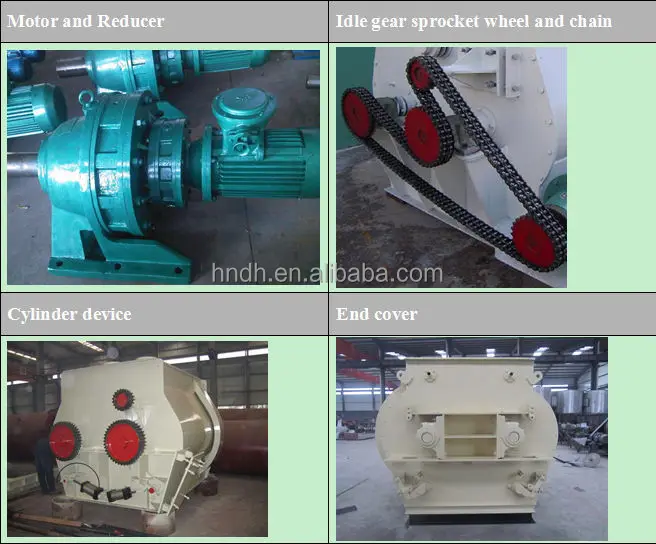

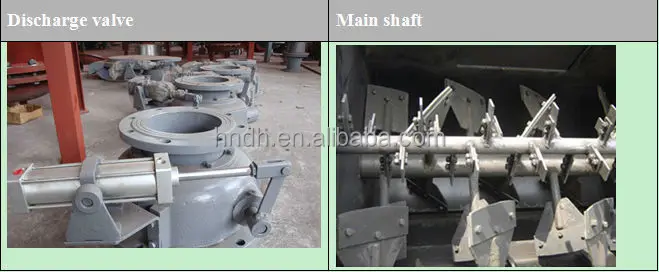

Detailed pictures





Our Services





1.According to your inquiry, We will reply to you in 24 hours.

2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.

3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.

4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
