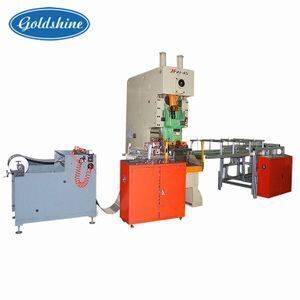

electrical china aluminium foil container making machine for whole line service
-
Supplier: Zhangjiagang Goldshine Aluminium Foil Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Sam Chow -
Price: $25000.00 /set -
Min. Order: 1 set
| Application: | aluminum foil container tray cap; | Condition: | New; |
| Power Source: | Hydraulic; | Name: | high quality china aluminium foil container making machine; |
| Supply Ability: | 100 Set/Sets per Month for china aluminium foil container making machine; | Port: | Shanghai; |
| Payment Terms: | L/C,D/P,T/T,Western Union,for china aluminium foil container making machine; | Certificate: | CE, ISO9001; |
| Packing: | Wooden; | Place of Origin: | Jiangsu China; |
| OEM: | YES; | Dimension(L*W*H): | 1550*1150*2500mm; |
| Manufacturer: | yes; | width of roll: | 280-460mm; |
| Warranty: | 1 Year; | Weight: | 3800-4500; |
| Brand: | Goldshine; | CNC or Not: | CNC; |
| Keyword: | china aluminium foil container making machine; | Machine type: | 25t/ 45t/ 63t/ 80t/ 110t; |
| Power(W): | 5.5kw; | Certification: | CE ISO; |
| Voltage: | 380V/220V Optional; | Packaging Detail: | wooden packing for aluminum foil container making machine; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Brand Name: | Goldshine; |

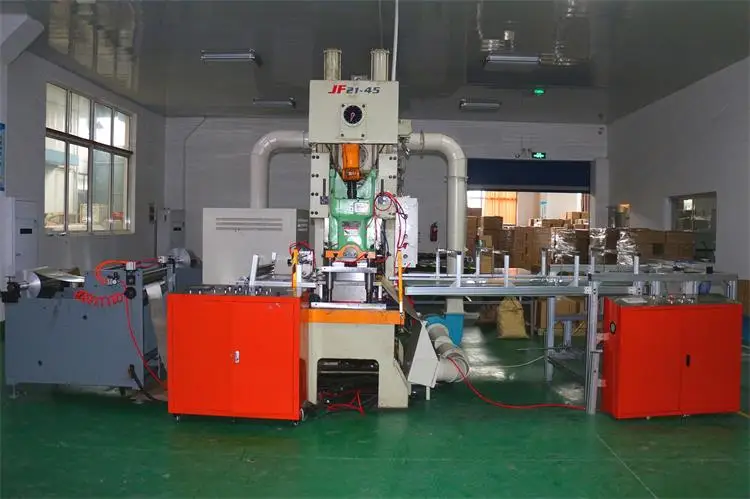

china aluminium foil container making machine
Performance Characteristic
1. This machine adopts Siemens CPU216 programmable logic container(PLC) as the controlling system. It is reliabale. The feeding length, producing speed and other parameter are easily set. It is integration of Gas & Electrical, centralized control, automated production.
2. Feeding, punching, scrap collecting is running automatically.
3.The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.
4. Feeding is controlled by stepper system, the feeding length is accurate and can be adjusted from 20mm to 999mm.
Main specifications and technical parameters
1.Feeding machine
2.High Accuracy Press
Model | JF21-45 | JF21-63 | JF21-80 | JF21-110 |
Nominal Pressure (KN) | ||||
Slide Block Strok (mm) | 100-260mm | 120-260mm | 140-260mm | 150-260mm |
Slide Stroke Per Minutes(/min) | 70-50 | |||
Maximum Die Set Height(mm) | 270-400 | 310-450 | 325-450 | 345-500 |
Die Set Height Adjustment(mm) | 60mm(2.36) | 70mm(2.76) | 80mm(3.15) | 90mm(3.54") |
Slide Bottom Size (mm) | 410*340mm | 480*400mm | 560*460mm | 630*520mm |
Stemhole Size(mm) | φ60*60mm | φ60*65mm | φ60*75mm | φ60*85mm |
Bolster Surface Size (mm) | 810*440/990*750mm | 870*520/1000*800 | 1000*600/1200*800 | 1100*680/1300*800mm |
Total Power (KW) | 5.5 | 5.5-7.5 | 7.5-11 | 11-15 |
Weight(kg) | 3800-4500 | 5500-6300 | 8000-9000 | 11000-12000 |
Overall Dimension Before Changed(mm) | 1440*1080*2300mm | 1610*1200*2500mm | 2000*1300*2900mm | 2030*1500*3130mm |
Overall Dimension After Changed(mm) | 1550*1150*2500mm | 1800*1300*2700mm | 2200*1450*3100mm | 2300*1600*3300mm |
3.Mould
4.Scrap Collrcting Device
If this product is not what you need, please do not worry.
We can design according to customer's size, style, logo ect.

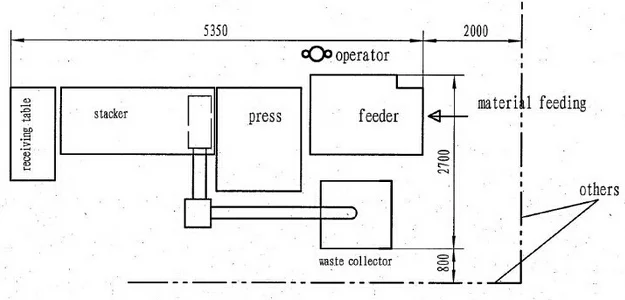

Machine Process
Aluminum Foil Raw Material-----Feeding----Lubrication----Punching(Mould)----Scrap Collecting----
Products Collecting----By Hands Or Stacker----Packaging
Film packaging
Wooden box packaging
Goldshine is China's outstanding OEM and ODM
Established in 2005

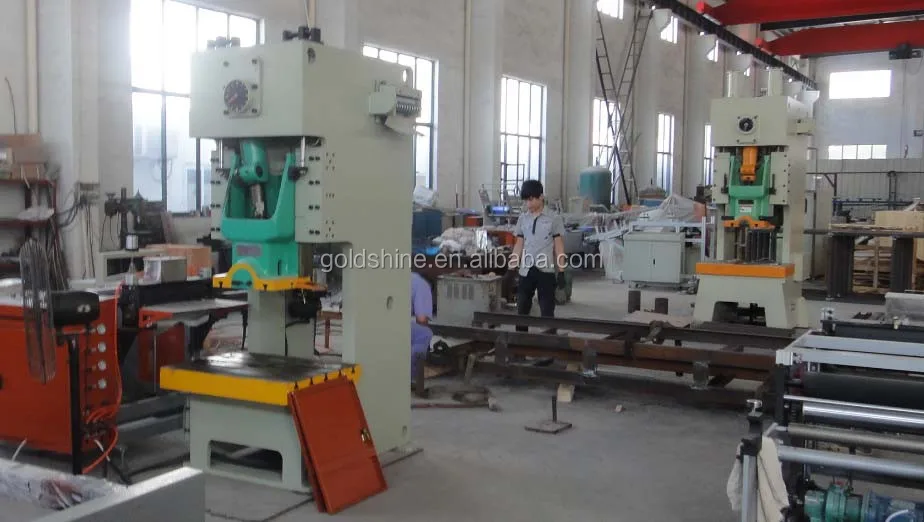

Welcome to visit our factory.
Zhangjiagang goldshine aluminum foil co.,ltd. is a leading company engaged in the research, development, production and sale of aluminum foil and aluminum foil relevant products, established in 2005,located in Zhangjiagang City.
Our company has a plant area of over 20000 square meters, the superior geographical environment and convenient traffic conditions make goldshine aluminum foil quickly into the international market.
Our company's products are exported to U.S., EU, Japan, Australia and more than 70 countries and regions, enjoy a good reputation in the international market with best service and high quality products.
The main products: aluminum foil jumbo roll, aluminum foil, aluminum foil container, aluminum foil roll machine, POP-UP foil sheets and so on.
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 15-35 days, it is according to your quantity.
Q: Can you do the machines' appearance design for us?
A:Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.
Q: What is your terms of payment ?
A: L/C,D/A,D/P,T/T,Western Union.
Q:Can you do the machines' appearance design for us?
A:Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.
Q:What's your after-sale service?
A:Our own engineers could be asked by you overseas for your serve. You can also ask your staff or yourself to our factory to learn.
If you have any questions, please do not hesitate to contact us.
-
