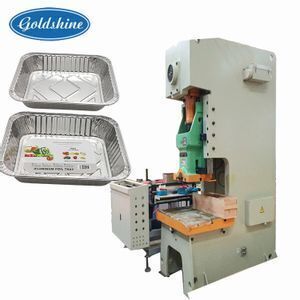

Aluminum foil dishes container takeaway containers making machine used

Supplier: Zhangjiagang Goldshine Aluminium Foil Co., Ltd.
Region: Jiangsu, China
Contact: Mr Sam Chow
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core Components:	PLC;	Sells:	Over 100 sets in Middle East;
Marketing Type:	New Product 2020;	Name:	Aluminum Foil Container Making Machine;
Certification:	CE;	OEM:	yes;
Port:	shanghai;	Voltage:	220v,380v or cutomized;
Supply Ability:	50 Set/Sets per Month;	CNC or Not:	Normal;
Payment Terms:	L/C,D/P,T/T,Western Union;	Key Selling Points:	Multifunctional;
Die Set Height Adjustment:	70mm;	Brand Name:	Goldshine;
Motor Power (kW):	8;	After Warranty Service:	Video technical support,Online support;
Nominal PRESSURE:	630KN;	Warranty of core components:	1 Year;
Nominal Force (kN):	60;	Maximum Die Set Height:	310~450mm;
Machine Type:	Punching Machine;	Warranty:	12 month;
Local Service Location:	None;	Packaging Detail:	Wooden box for China Manufacturer Disposable Aluminum Foil Container Making Machine;
Showroom Location:	None;	Power Source:	Hydraulic;
Color:	As customer required;	Applicable Industries:	Hotels,Restaurant,Home Use,Food Shop;
Model Number:	JF-21;	Power:	5.5~7.5KW;
Video outgoing-inspection:	Provided;	Weight (T):	9;
Machinery Test Report:	Provided;	Dimension(LWH):	according to each model machine;
ODM:	yes;	Condition:	New;
Item:	Aluminum Foil Container Making Machine;	Place of Origin:	Jiangsu China;

Product Description

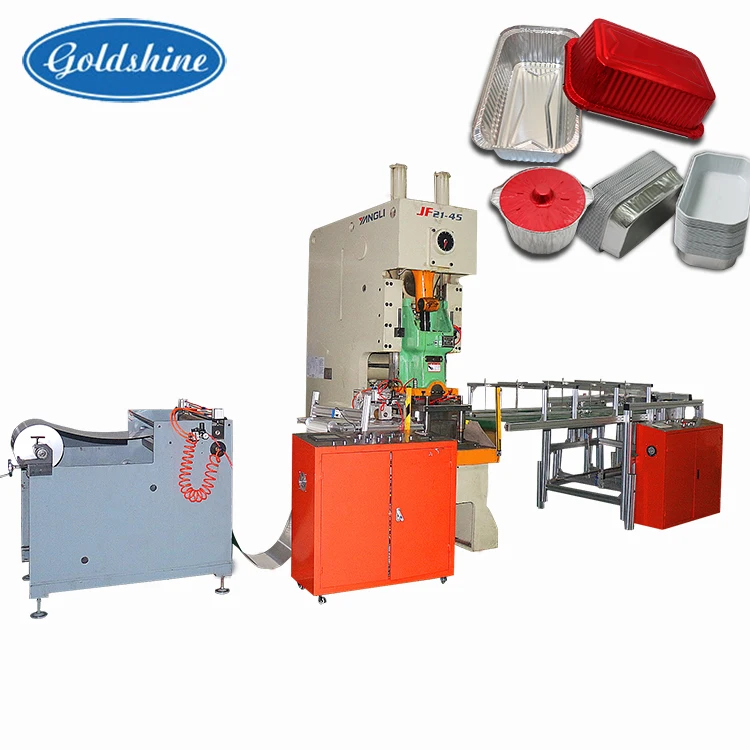

Aluminum foil dishes container takeaway containers making machine used

Feature of aluminum foil container machine:

1. This machine adopts Siemens CPU216 programmable logic container(PLC) as the controlling system. It is reliabale. The feeding length, producing speed and other parameter are easily set. It is integration of Gas & Electrical, centralized control, automated production.

2. Feeding, punching, scrap collecting is running automatically.

3.The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.

Product Parameters of aluminum foil container machine

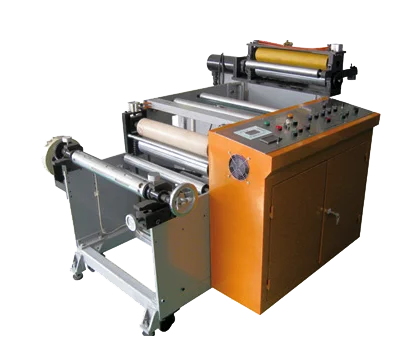

1.feeding machine of aluminum foil container machine

Model	XWSL-40	XWSL-55	XWSL-70	XWSL-80
Max.Width of Roll (mm)	350mm(13.78")	500mm(19.68")	650mm(25.59")	750mm(29.52")
Max.Unwind Roll Diameter(mm)	φ600mm(23.62")	φ600mm(23.62")	φ600mm(23.62")	φ600mm(23.62")
Feeding Speed (m/min)	0-35	0-35	0-35	0-35
Feeding Length (mm)	20-999	20-999	20-999	20-999
Feeding Accuracy (mm)	±0.3	±0.3	±0.3	±0.3

It can realize automatic oiling,automatic feeding ,automatic tracking features,automatically fedding 20-999mm in length.

2.High Accuracy Press of aluminum foil container machine

Model	JF21-45	JF21-63	JF21-80	JF21-110
Nominal Pressure (KN)	450	630	800	1100
Slide Block Strok (mm)	100-260mm	120-260mm	140-260mm	150-260mm
	(3.94"-10.24")	(4.72"-10.24")	(5.51"-10.24")	(5.91"-10.24")
Slide Stroke Per Minutes (/min)	70-50	70-50	60-45	50-40
Maximum Die Set Height (mm)	270-400	310-450	325-450	345-500

3.Mold of aluminum foil container machine

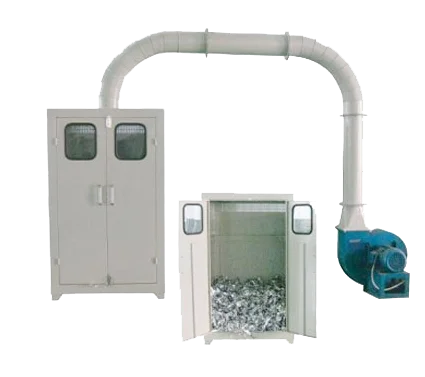

4.Scrap Collrcting Device of aluminum foil container machine

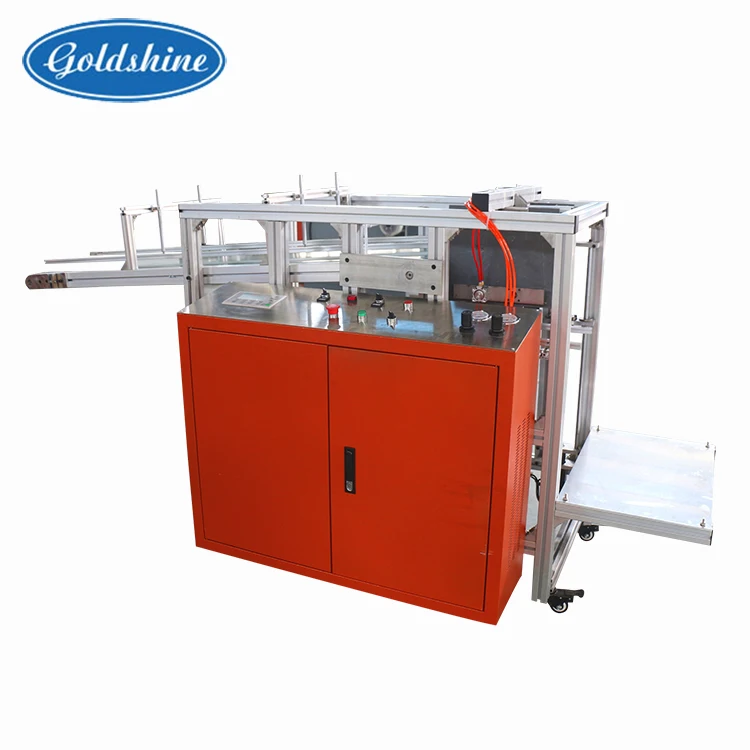

5.Auto Stacker of aluminum foil container machine

Certifications

ABOUT US

Goldshine is a leading company engaged in the research, development, production and sale of aluminum foil and aluminum foil relevant products, established in 2005,located in Zhangjiagang City. It has a plant area of over 20000 square meters, our products are exported to U.S., EU, Japan, Australia and more than 70 countries and regions.

FAQ

Q Are you trading company or manufacturer?

A Yes, and we are established in 2005.

Q What is your terms of payment ?

A L/C,D/A,D/P,T/T,Western Union.

Can you do the machines' appearance design for us?

A Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.

Q What's your after-sale service?

A Our own engineers could be asked by you overseas for your serve. You can also ask your staff or yourself to our factory to learn.
