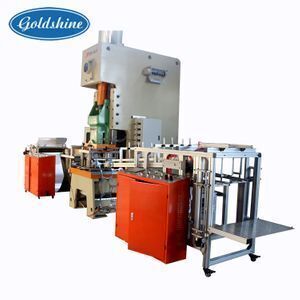

Goldshine Take away aluminum foil food container making machine

Supplier: Zhangjiagang Goldshine Aluminium Foil Co., Ltd.
Region: Jiangsu, China
Contact: Mr Sam Chow
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine Part 4:	Belt conveyor;	Driven Type:	Electric and pneumatic;
Place of Origin:	Jiangsu China (Mainland);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Condition:	New;	Packaging Detail:	Wooden box,film packaging for Goldshine Take away aluminum foil food container making machine;
Certification:	CE;	Machine Part 5:	Mould;
Machine Part 2:	High Accuracy Press;	Automatic Grade:	Automatic;
Machine Part 1:	Feeding Machine;	Model Number:	GS-AC-JF;
Supply Ability:	5 Set/Sets per Month Goldshine Take away aluminum foil food container making machine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	Goldshine;	Delivery Detail:	Shipped in 60 days after payment;
Machine Part 3:	Scrap Collecting Machine;	Control System:	Siemens CPU216 Programmable Control System;
Port:	Shanghai;

Product Description

Performance Characteristic

1. This machine adopts Siemens CPU216 programmable logic container(PLC) as the controlling system. It is reliabale. The feeding length, producing speed and other parameter are easily set. It is integration of Gas & Electrical, centralized control, automated production.
2. Feeding, punching, scrap collecting is running automatically.
3.The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.
4. Feeding is controlled by stepper system, the feeding length is accurate and can be adjusted from 20mm to 999mm.

Main specifications and technical parameters

1.Feeding machine

Model	XWSL-40	XWSL-55	XWSL-70	XWSL-80
Max.Width of Roll (mm)	350mm(13.78)	500mm(19.68)	650mm(25.59)	750mm(29.52)
Max.Unwind Roll Diameter(mm)	φ600mm(23.62)	φ600mm(23.62)	φ600mm(23.62)	φ600mm(23.62)
Feeding Speed (m/min)	0-35	0-35	0-35	0-35
Feeding Length (mm)	20-999	20-999	20-999	20-999
Feeding Accuracy (mm)	±0.3	±0.3	±0.3	±0.3
Working Voltage (V)	380/220	380/220	380/220	380/220
Weight of machine (Kg)	700	850	1000	1150
Dimension (mm)	2000x1150x900	2000x1300x900	2000x1450x900	2000x1550x900
Optional: inflatable shaft 75mm, 150mm			embossing shaft

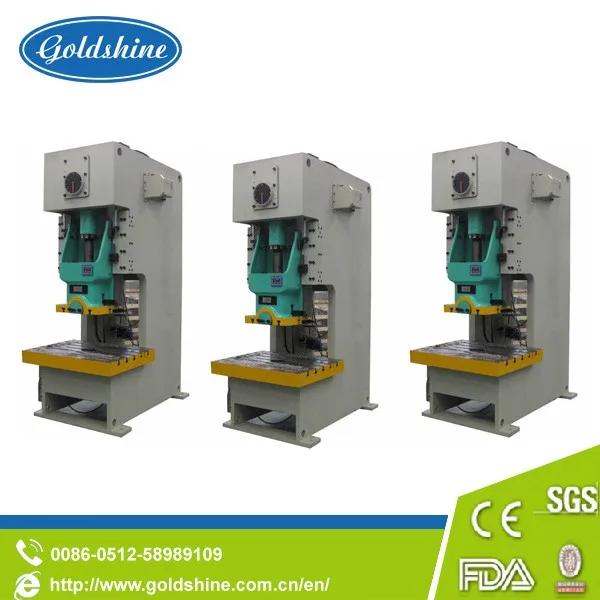

2.High Accuracy Press

Model	JF21-45	JF21-63	JF21-80	JF21-110
Nominal Pressure (KN)	450	630	800	1100
Slide Block Strok (mm)	100-260mm	120-260mm	140-260mm	150-260mm
Slide Stroke Per Minutes(/min)	70-50	70-50	60-45	50-40
Maximum Die Set Height(mm)	270-400	310-450	325-450	345-500
Die Set Height Adjustment(mm)	60mm(2.36)	70mm(2.76)	80mm(3.15)	90mm(3.54")
Slide Bottom Size (mm)	410*340mm	480*400mm	560*460mm	630*520mm
Stemhole Size(mm)	φ60*60mm	φ60*65mm	φ60*75mm	φ60*85mm
Bolster Surface Size (mm)	810440/990750mm	870520/1000800	1000600/1200800	1100680/1300800mm
Total Power (KW)	5.5	5.5-7.5	7.5-11	11-15
Weight(kg)	3800-4500	5500-6300	8000-9000	11000-12000
Overall Dimension Before Changed(mm）	144010802300mm	161012002500mm	200013002900mm	203015003130mm
Overall Dimension After Changed(mm）	155011502500mm	180013002700mm	220014503100mm	230016003300mm

3.Mould

4.Scrap Collrcting Device

Detailed Images

Machine Parts

Name: Automatic feeding device

Brand: Goldshine

It can realize automatic oiling,automatic feeding ,automatic tracking features,automatically fedding 20-999mm in length.

Main Parts

Name: press parts
Flatten aluminum foil to make aluminum foil better fit the mold.

Machine Parts

Name: Control system
Brand: PLC
Duplex safety valve are used to achieve emergent stop,inching,sing action and continuous operation. Electric adjustment of mould load height is adoped,enabling eady operation.

Main Parts

Name: Mould
The mould adopts aeroelasticily resilience device,and our advantages of the mould have kong shelf life,stable quality,high precision and resaonable desigh.
