small size 3 1/2 digit dc ammeter
-
Supplier: Shaanxi Xieli Photo Electric Instrument Co., Ltd. -
Region: Shaanxi, China -
Contact: Mr Philip Chen -
Price: $6.00 / >=10 pieces -
Min. Order: 10 pieces
| Model Number: | XL3600A; | Measuring Range: | +/-199.9uA~+/-199.9mA; |
| Display Type: | Digital Only; | Port: | XI'AN, China; |
| Packaging Detail: | 500 units/carton; | Dimensions: | w50*h26*d23.5mm; |
| Certificate: | CE/EMC; | Supply Ability: | 1000 Piece/Pieces per Day; |
| Brand Name: | XIELI; | ODM: | provide customized products; |
| Display: | 0.36" red/blue LED; | Accuracy Class: | +/-0.5%; |
| Payment Terms: | T/T,Western Union,paypal; | Place of Origin: | Shaanxi China; |
| Supply Voltage: | 5v/12vdc, 8-24vdc; | Operating Temperature: | 0~50; |

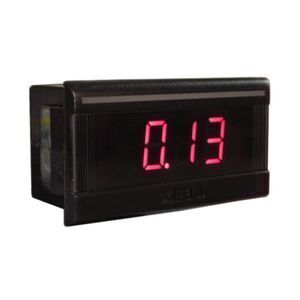

XL3600 Series mini DC ammeter 3 1/2 digit, 0.36” LED display
Model | Range | Accuracy | Resolution | Impedance | Momentary Max. Input | Power Supply |
XL3600A-1 | ±199.9uA | ±0.5%+1digit | 100uA | 1KΩ | ±15mA | 5v/12vdc, 8-28vdc |
XL3600A-2 | ±1.999mA | ±0.5%+1digit | 1uA | 100Ω | ±50mA | 5v/12vdc, 8-28vdc |
XL3600A-3 | ±19.99mA | ±0.5%+1digit | 10uA | 10Ω | ±150mA | 5v/12vdc, 8-28vdc |
XL3600A-4 | ±199.9mA | ±0.5%+1digit | 100uA | 1Ω | ±500mA | 5v/12vdc, 8-28vdc |
* Data transfer display: Input 75mV/5v/10v volt, or 4-20mA, 1A/5A amp signal display appointed value, max. 1999
XL3600, XL3DC99V series Meter Dimension: w50x h26x d23mm
Panel mounting size: w47x h23mm Mounting method: Snap-in
XIELI Ltd has been founded SINCE 1994, at beginning she is a military products manufactuer, now has developed into a high & new technology enterprise which manufacture various digital panel meters for Civilian instrument & Military.
We have more than 80 employees, and the R&D team have 8 members, include ONE electronic subject Doctor.
We can provide ODM service according to your equipment/project requirement
Please don't hesitate contact me freely :-). Philip
-
