Place of Origin: | Jiangsu China; | Package Type: | Carton Box / Wooden case package for complete freewheel clutch unit fnd; |
Brand Name: | SUMA; | Seals Type: | Sealed; |
Selling Units: | Single item; | Precision Rating: | P6; |
Delivery time: | 1 day for sample, 5-7 days for big order; | Type: | roller; |
Product name: | complete freewheel clutch unit fnd; | Package: | Carton Box; |
Material: | ST14; | Model Number: | FND 459 M; |
Outer diameter: | 7.15-33.338; | Single gross weight: | 0.8 KG; |
Package Preview: | https://sc02.alicdn.com/kf/HTB1LhndcSWD3KVjSZSgq6ACxVXaU.jpg_640x640.jpg; | Inner diameter: | 3.175-25.4mm; |
Thickness: | 6.35-15.88; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining; |
Torque capacity: | 0.32-49.6Nm; | Single package size: | 19X18X10 cm; |
Weight: | 2-44.8g; |

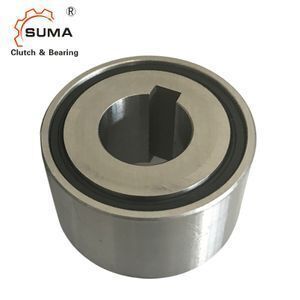

FND459Z Complete Freewheel Clutch Unit One Way Sprag Clutch FND 459 Z
Features of FND Complete Freewheel Clutch Unit
Characteristics
Width:34 mm
Operating temperature:max. 100° C
Lubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft h5; hub H6
Catalogue of FND Complete Freewheel Clutch Unit for your choice
Designation | d | D | W | Tnom | nmax | Cdyn. | Cstat. | Weight | b | t | Item no. |
[mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | [mm] | [mm] | ||
FND 437 M | 15 | 41 | 34 | 176 | 1,700 | 8,962 | 8,661 | 0.24 | 5 | 2.3 | 300737 |
FND 437 Z | 15 | 41 | 34 | 161 | 1,700 | 8,962 | 8,661 | 0.24 | 5 | 2.3 | 300738 |
FND 442 M | 20 | 46 | 34 | 223 | 1,500 | 10,247 | 10,708 | 0.28 | 6 | 2.8 | 300743 |
FND 442 Z | 20 | 46 | 34 | 208 | 1,500 | 10,247 | 10,708 | 0.28 | 6 | 2.8 | 300744 |
FND 453 M | 25 | 58 | 34 | 343 | 1,200 | 11,417 | 13,577 | 0.46 | 8 | 3.3 | 300751 |
FND 453 Z | 25 | 58 | 34 | 314 | 1,200 | 11,417 | 13,577 | 0.46 | 8 | 3.3 | 300752 |
FND 459 M | 30 | 64 | 34 | 411 | 1,100 | 12,691 | 16,320 | 0.55 | 8 | 3.3 | 300758 |
FND 459 Z | 30 | 64 | 34 | 381 | 1,100 | 12,691 | 16,320 | 0.55 | 8 | 3.3 | 300760 |
FND 463 M | 35 | 68 | 34 | 462 | 1,100 | 13,070 | 17,063 | 0.6 | 10 | 3.3 | 306528 |
FND 463 Z | 35 | 68 | 34 | 428 | 1,100 | 13,070 | 17,063 | 0.6 | 10 | 3.3 | 306529 |
FND 470 M | 40 | 75 | 34 | 550 | 1,000 | 14,050 | 19,840 | 0.69 | 12 | 3.3 | 300765 |
FND 470 Z | 40 | 75 | 34 | 509 | 1,000 | 14,050 | 19,840 | 0.69 | 12 | 3.3 | 300766 |
FND 473 M | 45 | 78 | 34 | 588 | 1,000 | 14,128 | 19,896 | 0.73 | 14 | 3.8 | 306532 |
FND 473 Z | 45 | 78 | 34 | 543 | 1,000 | 14,128 | 19,896 | 0.73 | 14 | 3.8 | 306533 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack the goods?
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
