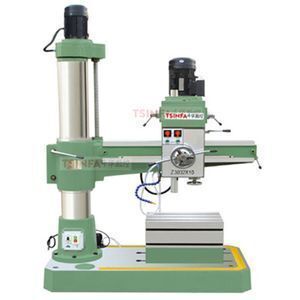

China Automatic Feed Metal THZ3040x10 Vertical Radial Drilling Machine Price

Application

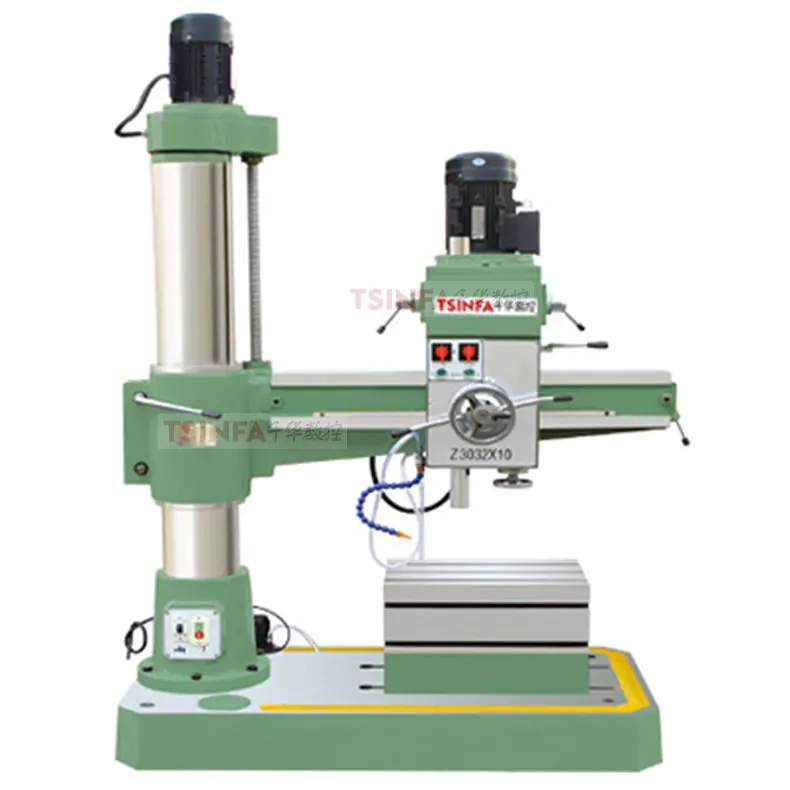

Radial drilling machine is mainly composed of base, inner column, outer column, rocker arm, spindle box and worktable. The inner column is fixed at one end of the base, and the outer column is sheathed outside, and the outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve, which is set to move up and down the outer column. Because the screw and the outer pillar are connected together, and the lifting nut is fixed on the rocker arm, the rocker arm cannot rotate around the outer column, and can only be rotated with the outer column. The spindle box is a compound part, which is composed of main drive motor, spindle and spindle transmission mechanism, feed and speed changing mechanism, and operation mechanism of machine tool. The spindle box is mounted on the horizontal guide rail of the rocker arm and can be operated by the Handwheel to move along the rocker arm in the horizontal guide rail.

Motion Form:

When processing, by the special tightening device will be fastened to the spindle box on the rocker arm guide, the outside column fastening inside the column, the rocker arm fastening on the outer column, and then drilling processing.
When drilling, the bit is rotated and the side is vertically advanced, the movement is as follows:

(1) The main movement of the radial drilling machine is the rotational motion of the spindle
(2) The longitudinal feed motion of the spindle
(3) auxiliary movement is: The rocker arm moves vertically along the outer column, and the spindle box moves along the direction of the rocker arm length, The rotary motion of the rocker arm and the outer column around the inner column.

Main Feature

1. The use of hydraulic preselection transmission mechanism can save the auxiliary time.

2. Spindle positive and negative turn, parking (braking), variable speed, empty files and other movements, with a handle control, light manipulation.

3. Spindle box, rocker arm, inside and outside the cylinder using the hydraulic driven diamond-shaped block clamping mechanism, clamping reliable.

4. Rocker-Arm guide, outer cylindrical surface, spindle, spindle sleeve and inner and outer column Rotary Raceway are all quenched, which can keep the stability of machine tool precision for a long time and prolong the service life.

5. Have perfect safety protection device and outer pillar protection.

6. In the structural design and in the manufacturing process, also took a series of effective measures to make the precision of the machine tool durability and the life of the whole machine is a large extension.

Specification

Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines, radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural mechanization equipment and so on. .

Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving, high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.

Q:Your company's delivery time?

A:Universal milling machine is batch production, goods can be sent within 10-50days.

If your order more than 100 sets please contact our support team for confirmation.

Q:Your payment?

A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.

Q:How do we get the training for the machines?

A:You can send your people to our factory and we will offer traing free of charge.

Q:How about the quality?

A:First we choose best material for the processing.

Being and after processing, we will inspect the finished parts by professional quality inspector.

Q:Your after-sales service?

A:1. Technician available for training and installation at customer’s company

    2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.

    3. Internet service by sending emails and videos, communicating online or calling.
