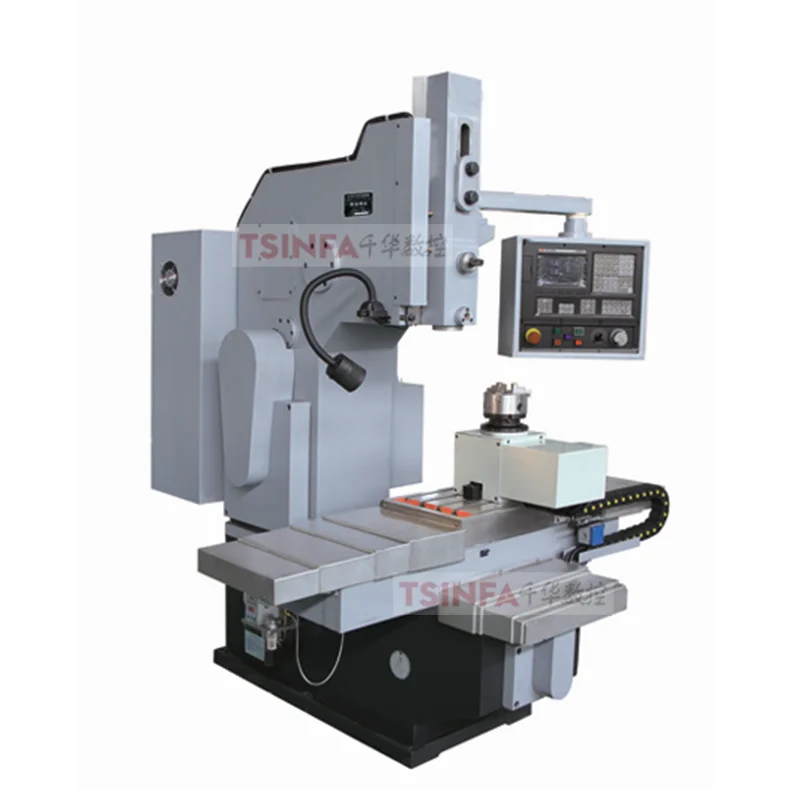

China automatic vertical CNC slotting machine price BK5018 on sale
-
Supplier: Shandong Tsinfa CNC Equipment Co., Ltd. -
Region: Shandong, China -
Contact: Mr Vincent Hua -
Price: $12000.00 /set -
Min. Order: 1 set
| Warranty: | 1 year; | Supply Ability: | 500 Set/Sets per Year; |
| Power(W): | 1.5/2/2.2KW; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Construction works ,Energy & Mining; | COLOR: | Customized Option; |
| Controlling Mode: | CNC Control; | Certification: | CE; |
| Weight: | 1500kg; | Key Selling Points: | Easy to Operate; |
| Voltage: | 380V; | Brand Name: | Tsinfa; |
| Condition: | New; | After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service; |
| Place of Origin: | Shandong China; |
Application
This machine tool is used for cutting plane, forming surface and keyway, and can insert working objects such as dies with inclination of 10 degrees. It is suitable for single or small batch production enterprises.
Main Feature
The table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining.
Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
Specification
| specification | Units | BK5018 |
| Ram maximum slotting length | mm | 180 |
| Ram stroke adjustment | mm | 80 |
| Ram movenent times | N/min | 46/60/90 |
| Work table size | mm | 600X320 |
| Trael of table(X,Y) | mm | 460X320 |
| The knife head supporting hole axis to column forarm distance | mm | 400 |
| The knife head supporting hole end to table working distance | mm | 480 |
| X to the motor torque | N.M | 6 |
| Y to the motor torque | N.M | 6 |
| Fast moving | X(m/min) | 5 |
| Y(m/min) | 5 | |
| Ball screw X | FFZD3205-3/P4 | |
| Ball screw Y | FFZD3205-3/P4 | |
| The main motor power | kw | 1.5/2/2.2 |
| Machine weight | kg | 1500 |
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines, radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving, high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
Q:Your company's delivery time?
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
-
