swc-bh metal telescopic universal joint shaft coupling for printing machine steel work equipment

Supplier: Nanpi County Jude Transmission Equipment Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Ms Sarah Ren
Price: $40.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	JUDE;	Structure:	Double;
Place of Origin:	Hebei China;	Body Material:	45# Steel;
Port:	Univesal joint shaft coupling shipping to Tianjin port;	Product name:	Cardan Shaft;
Color:	Custom Requirement;	Packaging Detail:	about our large univesal joint shaft coupling ,Wooden Box Or Customized;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Supply Ability:	200 Set/Sets per Month;	MOQ:	1 Set;
Material:	Alloy Steel;

Introduction Of SWC Universal Joint Coupling

Product Description

The SWC universal joint coupling is a structure without bolts. The bearing is fixed without bolts. It avoids the weak links damaged by bolt shearing, prolongs the service life and is convenient for maintenance. It is suitable for rolling machinery, lifting and transportation machinery and other heavy machinery. It connects two transmission shafts with different axes, the rotation diameter is 100 to 620mm, the nominal torque is 1.25 to 1000kN m, and the axis angle is 15 to 25 degrees.

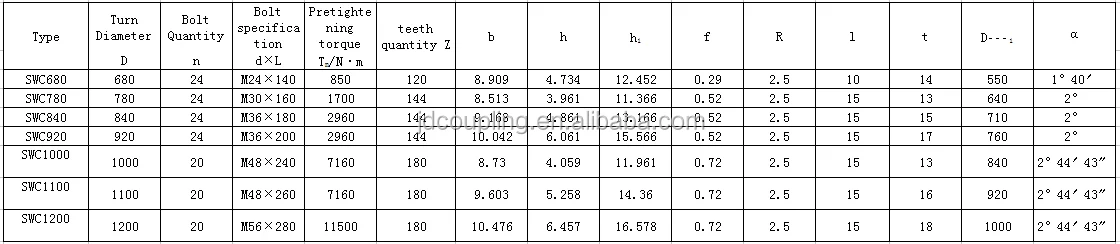

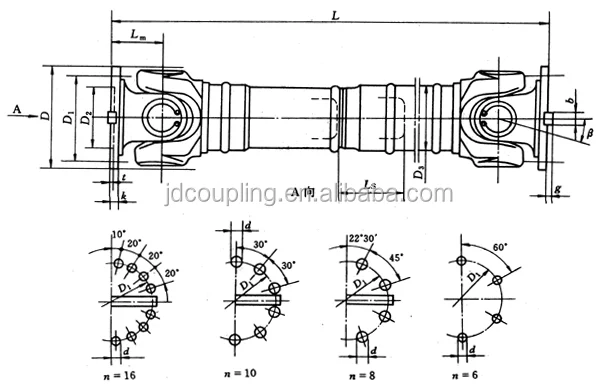

Structure & Parameter Of SWC - BH Standard Telescopic Welded Universal Joint Coupling

Note: 1.Tf is the torque allowed under the alternating load according to the fatigue strength.

2.Lmin is the minimum length after shortening.

3.L is the installation length and is determined as required

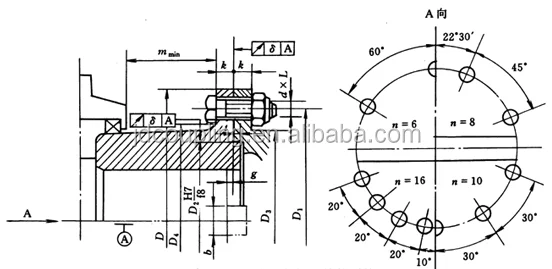

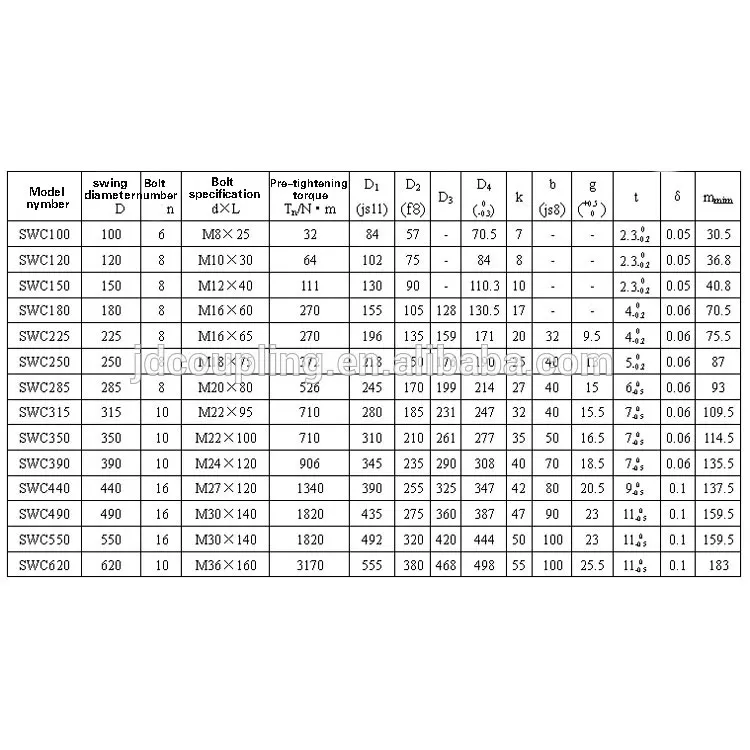

Connection of SWC type cross shaft universal joint coupling and its parts

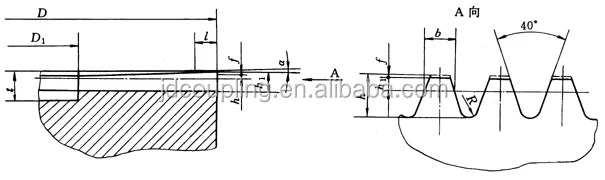

The SWC type universal joint coupling connects the flanges at both ends to other fittings through high strength bolts and nuts. The large size SWC universal joint coupling is connected to the other parts by the flange of the end tooth, high strength bolt and nut.
