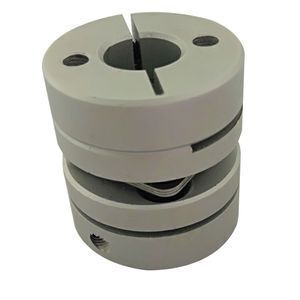

Stainless Steel Diaphragm Flexible Coupling For sale

Supplier: Nanpi County Jude Transmission Equipment Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Ms Sarah Ren
Price: $18.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product name:	Stainless Steel Diaphragm Flexible Coupling For sale;	Package Preview:	https://sc02.alicdn.com/kf/H68838b90233e44d7a37dff5545718ad1E.jpg_640x640.jpg;
OEM & ODM:	Acceptable;	Application:	Industrial Equipment;
Flexible or Rigid:	Flexible;	Place of Origin:	Hebei China;
Weight:	11-1560 g;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;
Standard or Nonstandard:	Standard;	custom:	yes;
Diaphragm material:	304 stainless steel;	Diameter:	19-126 mm;
Material:	Stainless Steel;	Brand Name:	Jude;
Body Material:	Steel or Alumunium;	Structure:	Disc;
Supply Ability:	5000.0 Piece/Pieces per Week;	Features 1:	Zero backlash,suit for servomotor step motor;
Length:	20-78 mm;	Packaging Detail:	Carton, Wooden Box Or Customized;
Port:	Tianjin;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;

Stainless Steel Diaphragm Flexible Coupling For sale

Product Description

Features:

1. The shaft sleeve is made of high strength aluminum alloy

2. The diaphragm adopts 304 stainless steel

3. Strong torque rigidity, accurate control of shaft rotation, and high precision control

4. Designed for servo, step motor

5. No gap between shaft and sleeve connection, suitable for positive and negative rotation

6. Low inertia, suitable for high-speed operation

7. Clamping screw fastening method

Product introduction:

The diaphragm coupling consists of at least one diaphragm and two bush.The diaphragm is fastened to the sleeve by pins and generally does not loosen or cause recoil between the diaphragm and the sleeve.In addition to the single diaphragm, there are two, three diaphragm coupling, with one or two rigid elements in the middle, both sides are connected to the shaft sleeve.Diaphragm coupling is often used in servo systems. Diaphragm is very torque rigid and can withstand deviations up to 1.5 degrees, but less so than the bellows coupling.

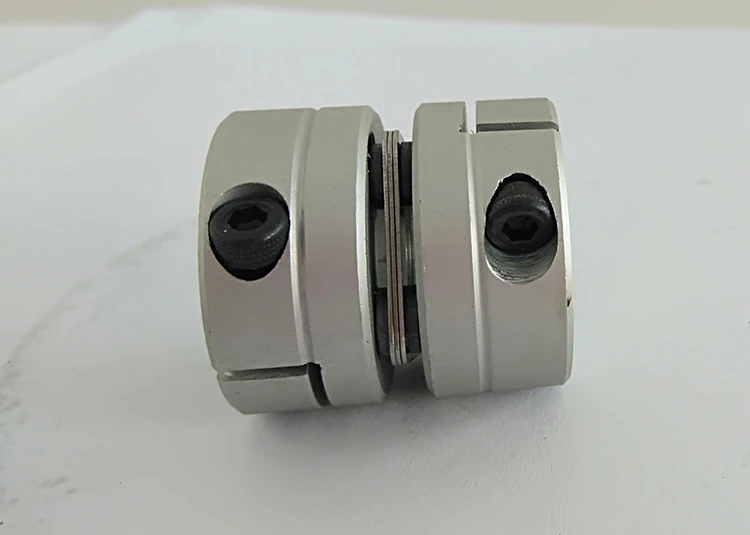

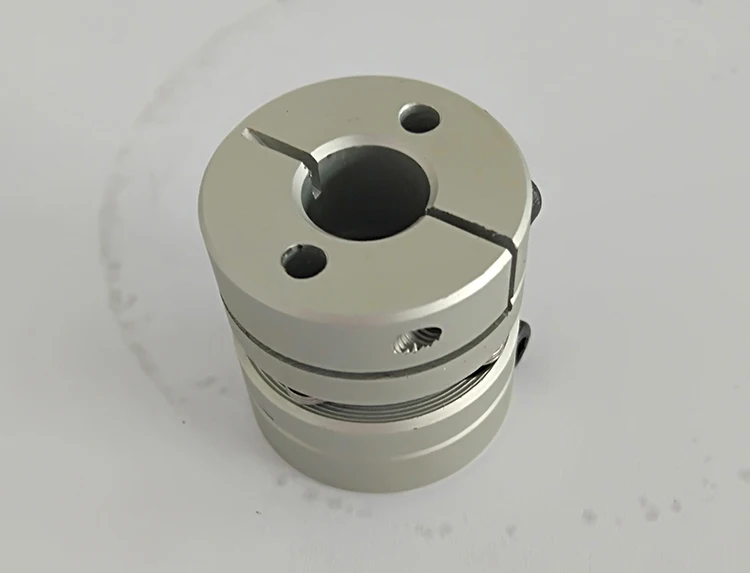

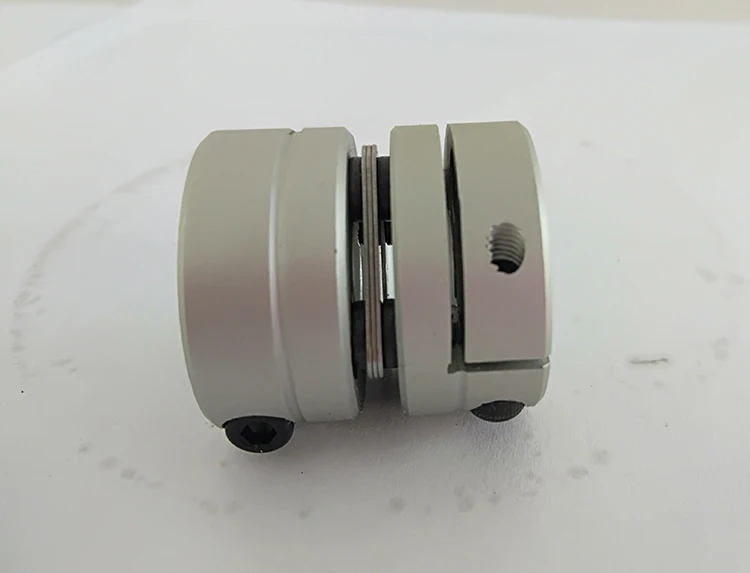

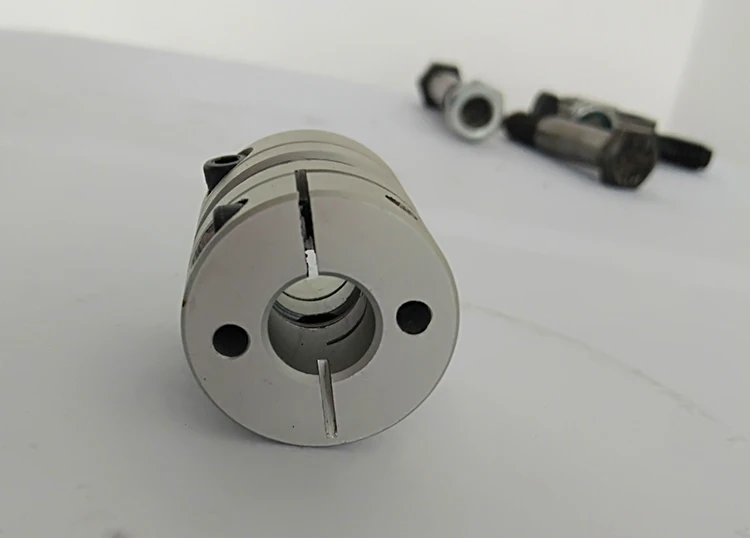

products images

Application

Packaging & Shipping

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2:Do you provide samples ? is it free or extra ?

A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q3: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.

Q4:How long is your warranty?

A: Our Warranty is 12 month.

Q5 :Do you have inspection procedures for coupling ?

A:100% self-inspection before packing

Q6. What’s your payment?

A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
