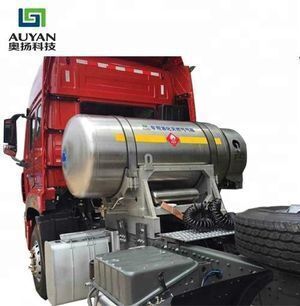

Cryogenic Cylinder for Truck Vehicle LNG Pressure Vessel

Supplier: Shandong Auyan New Energy Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Echo Wong
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Length:	1833 mm;	Material:	Stainless steel;
After-sales Service Provided:	Engineers available to service machinery overseas;	Diameter:	708 mm;
Volume:	500L;	After-sales Service Provided:	Online support;
Weight With LNG:	930--936 kg;	Condition:	New;
Packaging Detail:	Conventional packaging: iron frame, wooden box, carton, protective film package for High quality 500L-I lng vehicle pressure vessel truck bus cylinder;	Name:	High quality 500L-I lng vehicle pressure vessel truck bus cylinder;
Continuation of Journey:	955-1100 Km;	System Assembly Weight:	About equal to1232 Kg;
Brand Name:	AUYAN;	Supply Ability:	50000 Set/Sets per Year;
Port:	Qingdao;	Max Filling Weight:	382 kg;
Place of Origin:	Shandong China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,High quality 500L-I lng vehicle pressure vessel truck bus cylind;
Dimension(LWH):	708x708x1833 mm;	Applicable Industries:	Energy & Mining;
Weight:	530-534 kg;	Warranty:	1 year;
Capacity:	500L;

High quality 500L-I lng vehicle pressure vessel truck bus cylinder

Product display

V(l)	500L	500L-I	750L	850L	995L	995L-I
OD(mm)	φ658	φ708	φ858	φ858	φ858	φ908
L(mm)	2102	1833	1902	2106	2329	2168
NW(Kg)	530-534	548-554	400-403	440-443	490-493	490-493
Max Filling Weight(Kg)	382	382	250	282	330	330
Weight With LNG(Kg)	912--916	930-936	650-653	722-725	820-823	820-823
Continuation of Journey(Km)	955-1100	955-1100	710-780	800-880	940-1000	940-1000
System Assembly Weight(Kg)	≈1387	≈1232	≈918	≈987	≈1082	≈1082
Notes	High capacity LNG gas cylinder can meet the limited weight requirements for heavy truck

Product advantages:
1.Long term heat preservation: high vacuum degree, low exhaust frequency, two years vacuum guarantee, better
than competitors

2.High Safety: There is no leakage while using. It is not dangerous when being baked in fire for 40 mins, dropping down from 10 m height, hit by 100km/h. The gas cylinder frame fit the special installation requirements of the LNG
automobiles and adapt to any complex conditions.

3.High stability: The gas cylinder output pressure in the gas supply system and matching degree of the valves is more stable

FAQ

If you have questions about AUYAN® products, here's where you can find the answers. If you don't find the answer to your question here, feel free to contact us by telephone, email.

Q:Application of insulated welded cylinders (Dewars)?
A:AUYAN supplies dewars to safely contain liquefied gases such as nitrogen, oxygen, argon and carbon dioxide, which are for industry and commerce use. These gases are stored at extremely low temperatures and in a liquid state.

Q:How many different specifications of insulated welded cylinders (Dewars) does AUYAN have?
A:We produce Insulated Welded Cylinders (Dewars) with 6 different specifications: 175 L (Net Capacity 161 L, 67 kg*), 195 L (Net Capacity 179 L, 75 kg*), 210 L (Net Capacity 193 L, 81 kg*), 410 L (Net Capacity 377 L, 158 kg*), 450 L (Net Capacity 414 L, 173 kg*), 499 L (Net Capacity 459 L, 192 kg*)

*The weights above are counted under the circumstance that the density of cryogenic liquid is 0.42 kg/L.

Q:What is the ideal working pressure of LNG Vehicle cylinder?
A:The ideal working pressure is 0.8 Mpa - 1.2 Mpa, while the nominal working pressure is 1.59 Mpa.

Q:What is the warranty of your Products?
A:The warranty for the vacuum of equipment is 3 years from the date of sale.
All components come with a limited 1 year manufacturer warranty on defects in material or workmanship from the date of purchase to the original owner.

Q:What trade terms can you apply in the contract?
A:EXW, FOB and CIF are the regular terms we use.

Q:What are some methods of payment?
A:T/T, L/C, as well as Paypal are supported.
