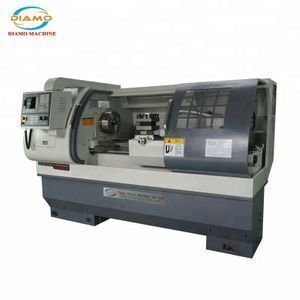

Good quality new CNC Lathe price with Fanuc control CK6140

Click here to contact

Product details

Voltage:	Customer's Requirement;	Automatic Grade:	Automatic;
Supply Ability:	200 Set/Sets per Month;	Power(W):	5.5KW;
Type:	Horizontal;	Dimension(LWH):	2150/2400X1400X1750;
Max. Swing Diameter:	400mm;	Max.Swing on slide:	245mm;
Max. Machining length:	750 / 1000mm;	CNC or Not:	CNC;
Spindle speed:	150-2500rpm;	Condition:	New;
Packaging Detail:	Wooden case;	Brand Name:	Diamo;
After-sales Service Provided:	Engineers available to service machinery overseas;	Weight:	2000kg;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	Qingdao/Shanghai;
Chuck size:	250mm;	Certification:	CE ISO9001;
Place of Origin:	Shandong China (Mainland);	Name:	CNC LATHE;

CNC LATHE CK6140A

CNC LATHE Standard Configuration

GSK, Siemens, FANUC, KND CNC controller

Manual 3 jaw chuck, Manual tailstock

4 position electrical turret

Automatic lubration, Lighting system, Cooling system.

Voltage: 3 phase 380V 60HZ

Lathe Options:

Hydraulic chuck ( Solid or Hollow) and tailstock, Pneumatic chuck and tailstock

6 position electrical turret

Voltage: As customer’s request, like 3 phase 220V /400V etc.

Product Description

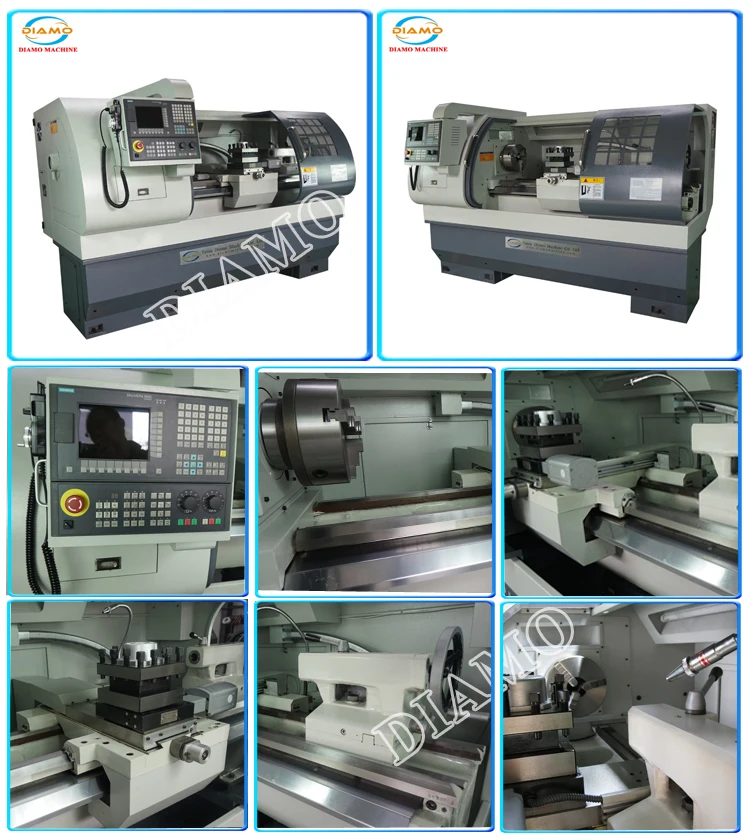

CNC Lathe CK6140 details :

CNC Lathe CK6140A parameters

Items	Unit	Specifications
Max. Swing dia. on bed	mm	Φ400
Max.swing dia. on cross slide	mm	Φ245
Max. Machining length	mm	750 and 1000
Main drive form		Independent spindle
Spindle speed regulation		Frequency stepless speed
Spindle speed	r/min	200-2500rpm
Spindle head form		6-A2
Spindle bore dia.	mm	Φ60
Spindle bore taper		MT6
Chuck size	mm	250
Tool post / Turret		4/6/8 position turret
Turret Max. travel / stoke	mm	X : 260 Z : 760/1020
Fast moving feed	m/min	X : 6 Z : 8
Positioning accuracy	mm	X: 0.01 Z : 0.015
Repeat positioning accuracy	mm	0.008
Tailstock quill dia.	mm	Φ60
Tailstock taper		MT4
Tailstock sleeve travel	mm	120
Motor power	KW	5.5
Max.size of tool holder	mm	25X25
Machine size	mm	2150/2400×1400 ×1750
Net weight	KGS	1800/2000
