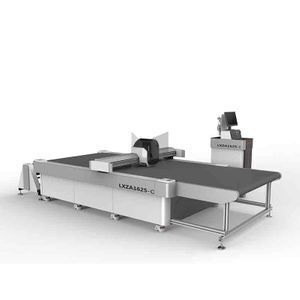

Factory industrial 1625 1816 foam cloth leather cutting machine oscillating knife cutting plotter fur with stretching device

Supplier: JINAN LXSHOW MACHINERY CO.,LTD
Region: Shandong, China
Contact: Mr Kim Lee
Price: $13500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Repeated accuracy:	≤0.1mm;	Rated power:	11KW;
Power(W):	11KW;	Type:	Cutting Machine;
name:	oscillating knife cutting machine;	Condition:	New;
Place of Origin:	Shandong China;	Weight:	1600kg;
Cutting materials:	Leather, cloth,leather,pvc,Silicon,rubber etc.;	Safety device:	Using infrared sensors, responsive, safe and reliable.;
Working area:	2500*1600mm;	After-sales Service Provided:	Online support,Video technical support;
flat plate table:	flat plate table;	Voltage:	380V±10%;
Certification:	CE;	Automatic Grade:	Manual;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Home Use,Construction works ,Energy & Mining,Advertising Company;	translational velocity:	800-1200mm/s;
Dimension(LWH):	215035001350mm;	Brand Name:	UNICHCNC;
Warranty:	2 years;	Supply Ability:	100 Set/Sets per Month oscillating knife cutting machine;
Packaging Detail:	Strong plywood;	Tool configuration:	Multiple cutting knives;
Cutting speed:	200-800mm/s(according to different cutting materials);	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Port:	Qingdao;

Factory industrial 1625 1816 foam cloth leather cutting machine oscillating knife cutting plotter fur with stretching device

Product Advantages

Samples

<<<<<<<<<<<<<<>>>>>>>>>>><<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board,rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Product Description

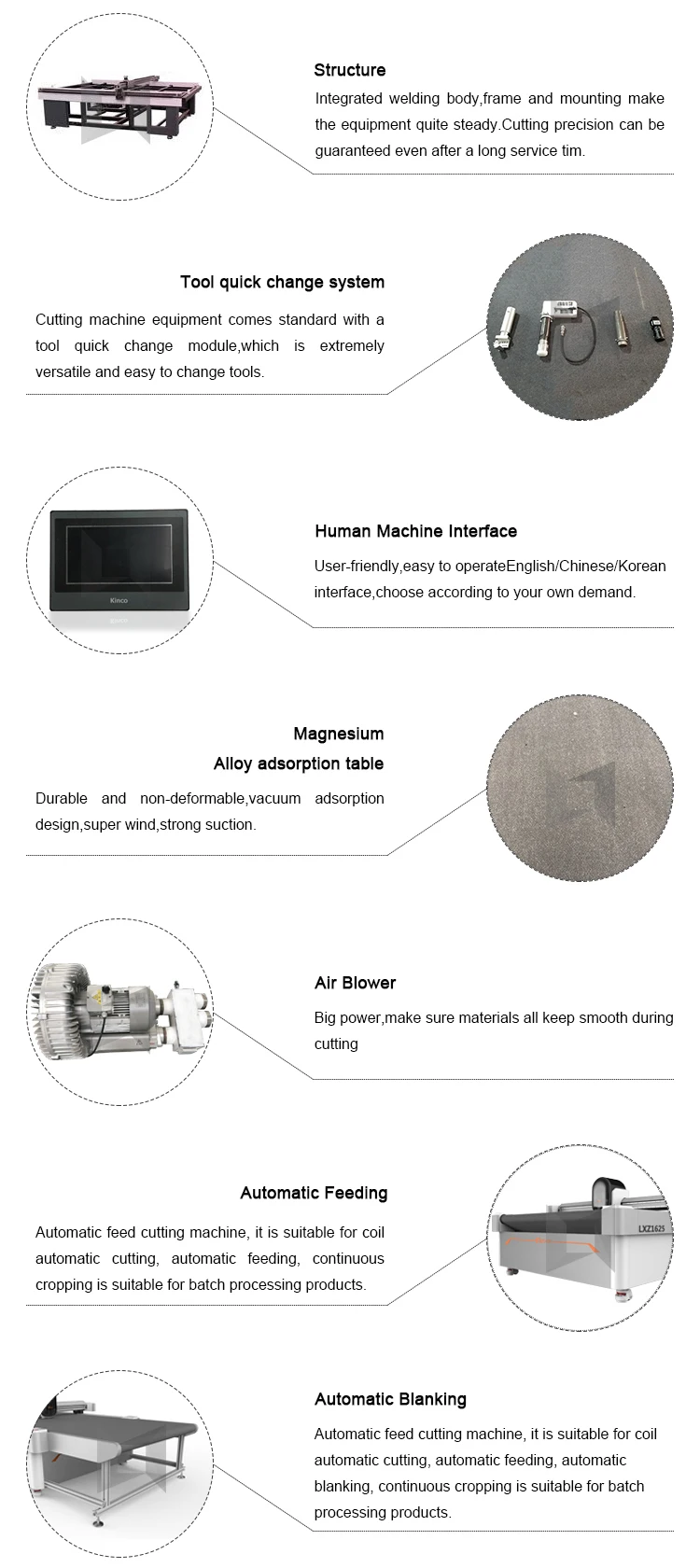

Features :

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

7.Automatic feed cutting machine, it is suitable for coil automatic cutting, automatic feeding, automatic blanking, continuous cropping is suitable for batch processing products.

Model	LXZ1625	LXZ1816-A		LXZ1625-A
Working area	1600×2500mm	1800*1600mm		1600×2500mm
Machine size (mm)	215035001350	240021501350		220035001350
Rated power	11KW	11KW		11KW
Fixed mode	flat plate table	flat plate table		Auto feeding type table
Multifunctional head	Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.
Tool configuration	Multiple cutting knives
Safety device	Using infrared sensors, responsive, safe and reliable.
Translational velocity	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickness	≤22mm(according to different cutting materials)
Cutting materials	Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy	≤0.1mm
Capacity	2GB
Transmission system	imported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction system	HP-GL compatible format

Voltage	380V±10%
Other configuration	Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump (We can customized machine production as your requirements)
Machine Weight:KG	1600		1600	1800

Company Information

JINAN UNICH MACHINERY CO.,LTD

Is established in July 2004 ,owns more than 500 square meters of researching and office space,

more than 32000 square meters factory.All machines ,passed the European Union CE authentica-tion,American FDA certificate and are certified to ISO 9001. Products are sold to USA, South

east Asia,Europe,Canada, Australia, Africa etc,more than 120 countries and areas, and supply

OEM service for more than 30 manufactures.

Our Products includes All kind of

1. Cnc oscillating knife cutting machine.

2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.

3. Fiber cutting machine.

4. Plasma cutting machine.

5. Cnc router machine.

6. Co2 laser machine and so on.

We can also customized non-standard assist equipment as your detailed work requirements.
