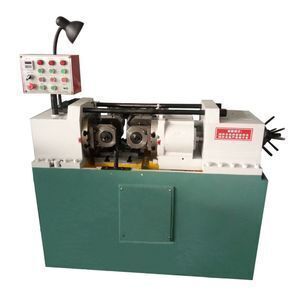

Thread rolling machine rebar coupler Cemented Carbide Thread

Supplier: Hebei Yahan Machine Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Mr pete Wang
Price: $4200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	3-380V 50HZ;	Applicable Industries:	Construction works ;
After-sales Service Provided:	Video technical support;	Certification:	ISO CE;
Hydraulic power:	1.5kw-4;	Place of Origin:	China;
Port:	TianJin;	Product name:	Cnc Thread Rolling Machine;
Application:	Reinforcing steel processing;	Max thickness of roller:	100mm;
Color:	Customizable;	Brand Name:	YaHan;
Spindle center distance:	120-240mm;	Warranty:	1 year;
After-sales Service Provided:	Engineers available to service machinery overseas;	Weight:	1000kg±50kg;
Packaging Detail:	machine is covered with standard wooden box case;	Dimension(LWH):	148015001050mm;
Length:	Unlimited;	Supply Ability:	15 Set/Sets per Month;
Power(W):	4.0kw-4;	Production Capacity:	34,43, 57,72(r/min);
Cooling power:	90w;	Thread Pitch:	2-8mm;
Payment Terms:	L/C,T/T,Western Union;	Condition:	New;
Axis tilt angle:	±5°;

Thread rolling machine rebar coupler Cemented Carbide Thread

Product Description

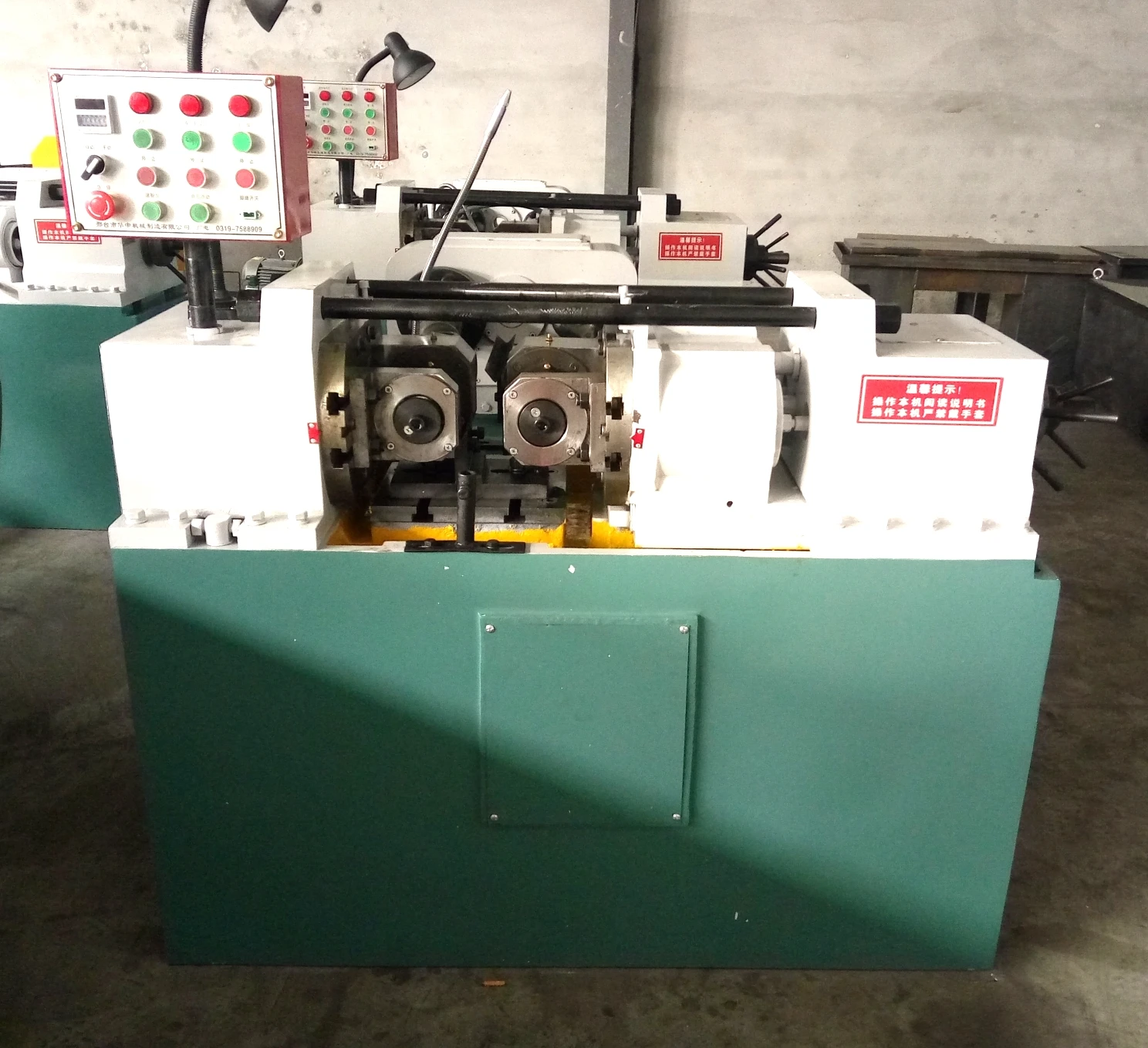

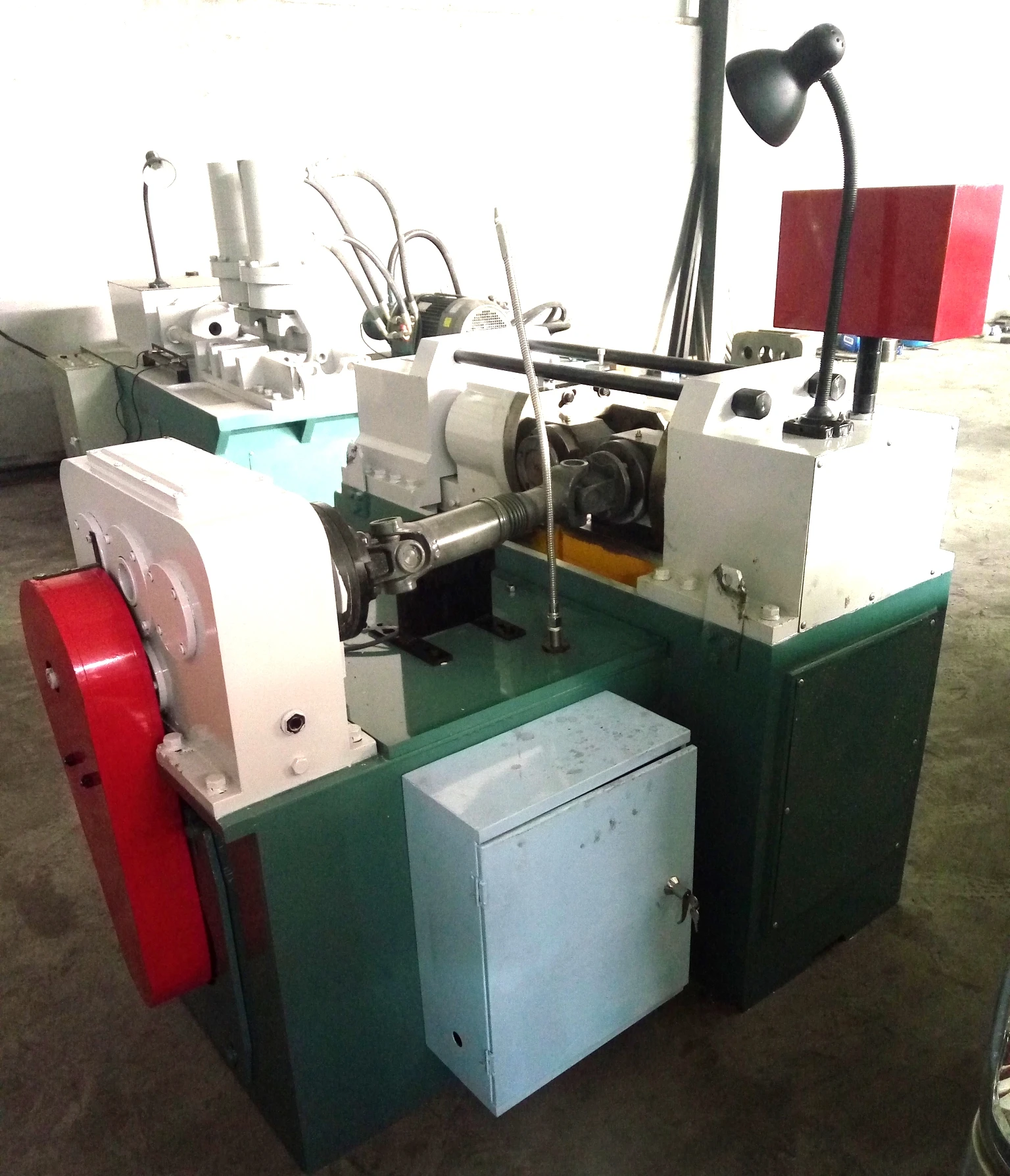

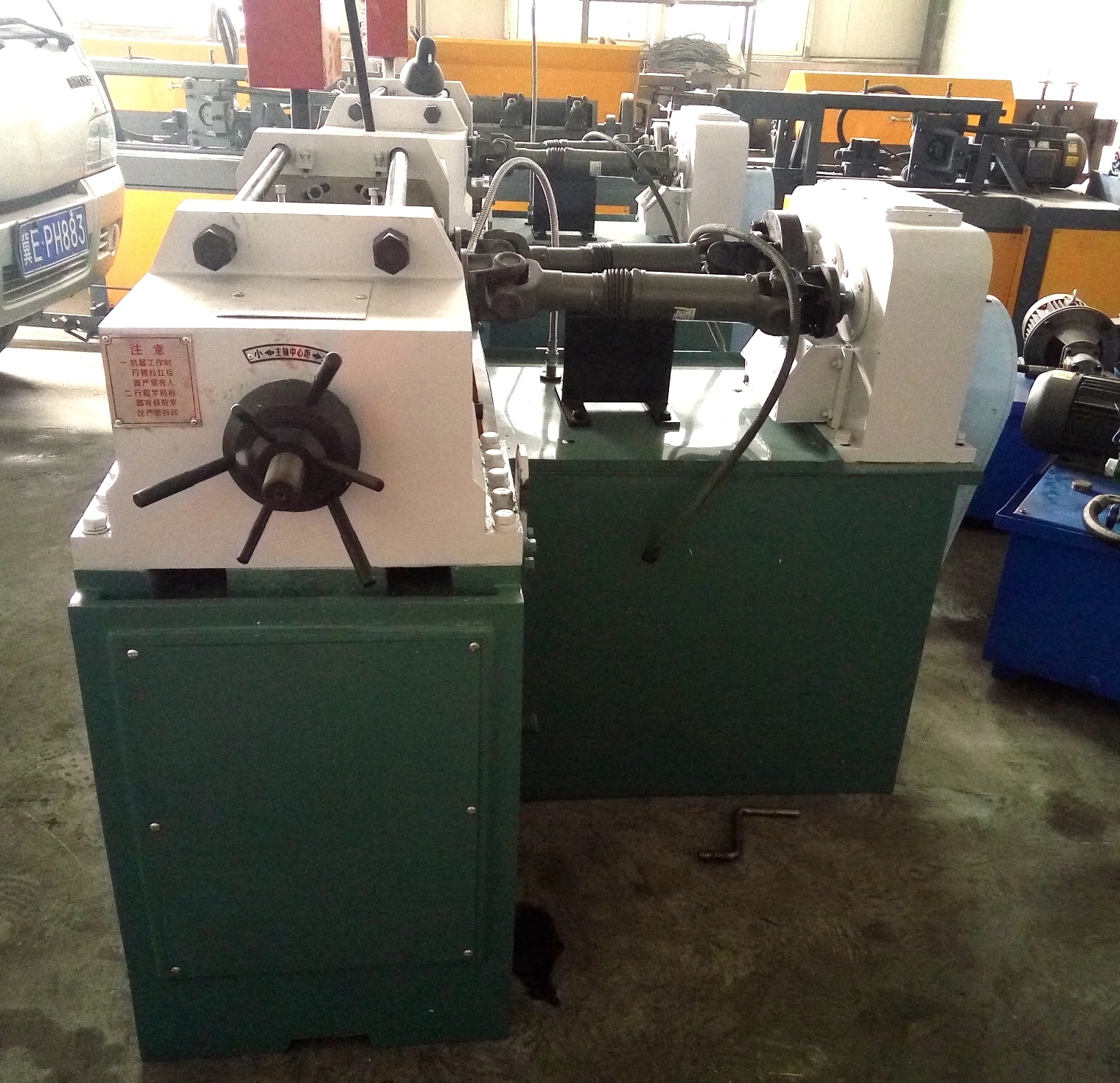

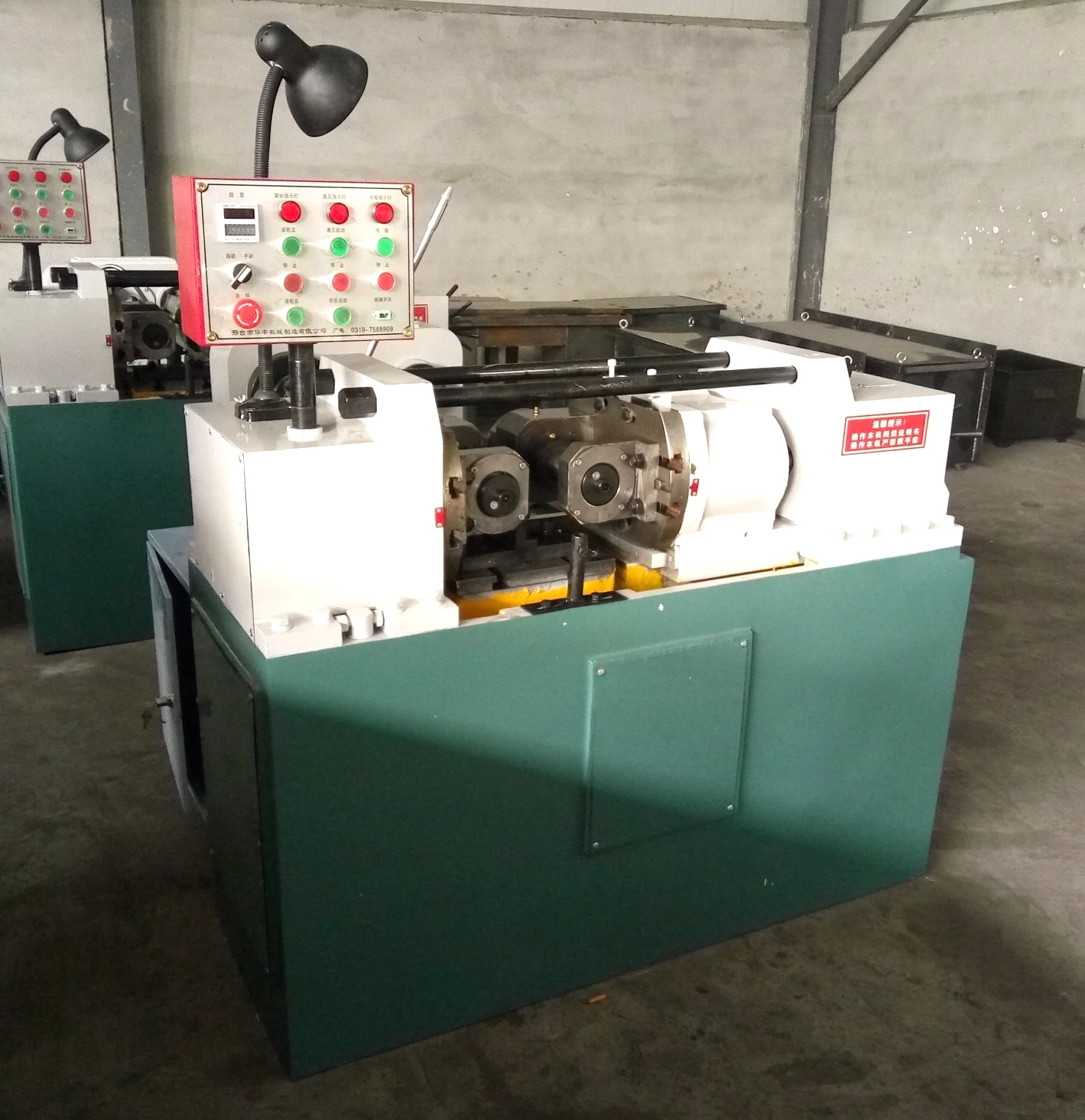

Thread Rolling machine main organism, rotating box, fixed spindle seat, movable spindle seat, hydraulic system and electrical components. The two main axes of the thread rolling machine are synchronized and rotate in the same direction. The right spindle is fed in the horizontal direction driven by the rolling pressure, and the two rolling rollers roll the workpiece to make the desired thread and other shapes. Fixed spindle seat and movable spindle seat is mainly used for installing roller wheel and rolling wheel tooth position adjustment.

Max rolling pressure	80KN		Length	Unlimited
Rolling material diameter range	Radial feed	Φ5-Φ30mm	Spindle speed	34,43, 57,72(r/min)
	Axial feed	Φ5-Φ22mm

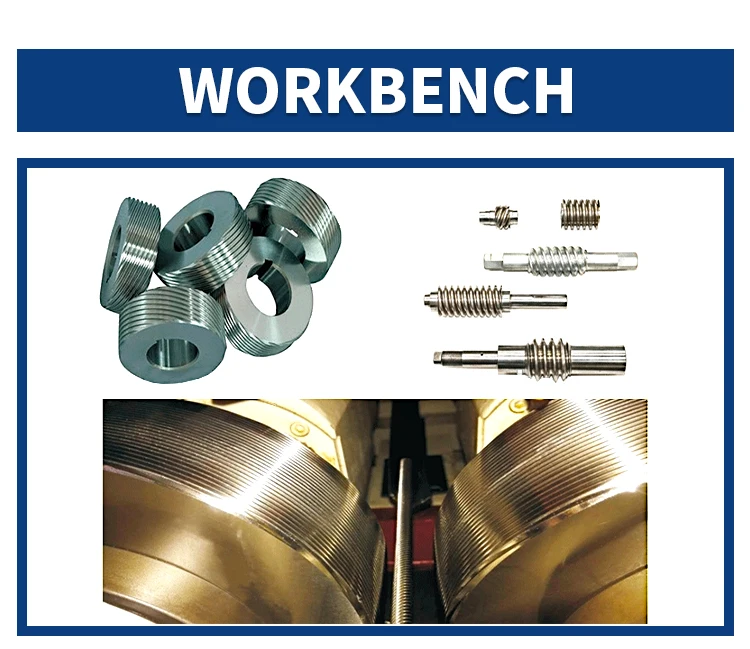

Thread roller	Outer roller diameter	Φ120-Φ170mm	Active power	4.0kw-4
	Inner roller diameter	Φ54mm	Hydraulic power	1.5kw-4
	Max thickness of roller	100mm	Cooling power	90w
Axis tilt angle	±5°		Weight	1000kg±50kg
Spindle center distance	120-240mm		Dimensions	1480×1500×1050mm

Hydraulic system is the machine's feed power, it is mainly to move the spindle seat for feeding and return movement. During the rolling, the feed amount per axis of the workpiece can be determined according to the parameters of the workpiece and the mechanical properties of the workpiece material. Thread Rolling machine two spindle center distance adjusted for the two spindle seat were adjusted to the center, that is, when the workpiece is in the center of the machine rolling, the rolling long workpiece and through the machine more aspects. The angle between the spindle axis and the table surface can be adjusted between ± 3 °.

Packaging & Shipping

Express logistics can be transported according to customer's requirements as long as you pay for it.

Our Services

Pre-sale Service
1.Supply item design,process design.

2.Help you to chose the fitest machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
