small chicken cattle fish pet food poultry feed manufacturing machine plant mini complete animal feed pellet production line

Supplier: Anyang Gemco Energy Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Crystal Qin
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Feed Pellet Machine;	Place of Origin:	Henan China;
Weight:	2464 kg;	Price level:	Low Cost;
Applicable Industries:	Farms,Home Use,Food Shop,Food & Beverage Shops,Making animal feed pellets;	Payment Terms:	L/C,T/T,Credit Card;
Year of manufacture:	New animal feed pellet production line;	Application:	manufacturing plant for animal feed;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Condition:	New;
Voltage:	220V/380V;	Pellet Capacity:	80-2000 kg/h wood pellets;
Dimension(LWH):	1500040004500mm;	Motor choice:	Diesel engine pellet machine;
Warranty:	1 year;	Showroom Location:	Egypt,Canada,United States,Italy,Viet Nam,Philippines,Pakistan,South Korea,Chile,Nigeria,Japan,Malaysia,Australia;
Packaging Detail:	Don't hesitate to contact us And we will do our best to meet your demand on the packaging of the small animal feed pellet machine All our wood pellet machines are packaged seriously with strong frame and wood cases to ensure you get the small pellet machine in perfect state Besides, if you have any other requirement on the animal feed pellet machine package;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Nigeria,Uzbekistan,Tajikistan;
Length:	1000 mm;	Port:	Qingdao;
Usage:	Small manufacturing plant for animal feed;	Key Selling Points:	High Productivity;
Certification:	CE ISO SGS;	Type:	small scale animal feed pellet production line;
Brand Name:	GEMCO;	After Warranty Service:	Online support;
Spare parts of wood pellet machine:	Roller,die,electric-starter;	Pellet diameter:	4-12mm Feed Pellets;
Supply Ability:	100 Unit/Units per Month;

Small chicken cattle fish pet food poultry feed manufacturing machine plant mini complete animal feed pellet production line

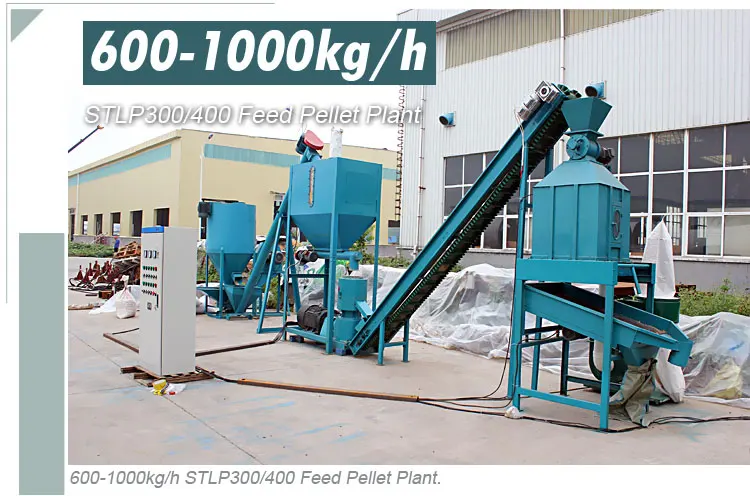

This STLP300/400 animal feed pellet production line can be used for processing livestock, poultry and aquatic feed pellets, which is specially suitable for medium feed factory, breed farm or aquatic base. It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broomcorn, wheat, beans, oil seed meal and other materials . And also, this manufacturing plant for animal feed has the features of low energy consumption and high production efficiency for larger profits. We provide free charge of installation, and training, factory designing, and timely after-sale service.

Technical parameters of manufacturing plant for animal feed

Model	Power (Kw)	Capacity (kg/h)	Weight (kg)	Dimension (mm)
STLP300	45.7	600-800	2464	1500040004500
STLP400	61.2	800-1000	2902	1500040004500

Click Now for Catalogs & Factory Price!

Small animal feed pellet production line features

This flat die small animal feed pellet production line belongs to manufacturing plant for animal feed because of its capacity (under 800kg/h), it is applicable for making chicken feed pellets, goat feed pellets, cattle feed pellets, rabbit feed pellets, fish feed pellets, dog feed pellets, etc.

Small animal feed pellet production line makes 2-8 mm diameter animal feed pellets 600-800kg/h. Such as 2-4mm diameter chick feed pellets and pig feed pellets. 1.5-3mm fish feed pellet, 2-5mm rabbit feed pellet, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.

Small Gemco manufacturing plant for animal feed line contains crushing, mixing, pelletizing, cooling, screening and packing pellets parts. Full line machines contain crusher, mixer, pellet machine, cooler, crumbler, screener, silos packing machine and conveyors ect. We will design the full pellet line Flow chart according to your raw materials dimension and specific requirement.

Small animal feed pellet production line key pellet machine can produce large pressure and make materials fully cured. Machine key parts are made by our CNC system, through high technical heat treatment, which is high precision and quality,

Small animal feed pellet production line key pellet machine list as below: Please choose your ideal model and then we will design the full line flow chart accoridng to specific materials details.

Production Flow Chart of This animal feed pellet prodction line

As shown in the above Figure, the maize and soya bean meal (store & directly feed on ground) is sucked into the Grinding Machine 101 and crushed into fine powder. Any other powder/soft materials, such as wheat bran, bone meal, microelement, vitamin, etc, which don't need to be crushed, they can directly feed into the Vertical Mixing Machine 201 from its feeding port. All materials are mixed uniformly and discharged into the hopper of Screw Conveyor 301 then feed into Temporary Storage Silo 302 by screw conveyor. By Screw Feeder 303, the mixed materials are uniformly and continuously feed into the Pellet Mill 304 then produced into feed pellets. The pellets are discharged into the hopper of Belt Conveyor 401 then feed into the Pellet Cooling Machine 403 through Air Lock 402. With the cooling process, the fresh & hot pellets are cooled, the pellet temperature is not more 5 than the room temperature. The cooled pellets are screened by the Vibrating Screen 404, then they can be packaged.

Main raw materials and finished products of small animal feed pellet production line

Click Now for Catalogs & Factory Price!

Performance of small manufacturing plant for animal feed

Compact structure, occupying small area, low requirement on workshop conditions, low investment.

Easy to install, no need for civil engineering or welding at project site. All machines can be used directly after finish the connection, lower the installation cost.

Continuous production, easy operation, less operator required, this line only needs 1-2 operators, with less labor works. So the operation cost is lower which enlarge your pure profit by lower the production cost.

Wide application, it can produce various feed pellets for poultry, livestock, fish, etc, it's suitable for small and medium feed production.

GEMCO Feed Pellet Mill Factory Photographs Show

How do we pack the poultry feed machine?

Click Now for Catalogs & Factory Price!

GEMCO is a professional manufacturer of animal feed pellet prodcution line including poultry feed pellet making machine, chicken feed pellet machine, cattle feed pellet machine and poultry feed machine, catfish feed pellet machine. GEMCO has been devoted to manufacturing plant for animal feed for more than 10 years. Till now our animal feed pellet making machines have exported to over 65 countries and regions all over the world, which including Russia, USA, Australia, Malaysia, Chile, Portugal, etc. We also have rich experiences in turnkey feed pellet making projects, do overall onsite commissioning and offer aftersales service.
