small scale saw dust pellet making uses wood granulator pell

Product details
Single package size:1240X580X1000 cm;Place of Origin:Henan China (Mainland);
Certification:CE ISO SGS;After-sales Service Provided:Engineers available to service machinery overseas;
After-sales Service Provided:Online support;Capacity of saw dust pellet making:160-250 kg per hour;
Weight:340;Power(W):15kw;
Delivery Detail:0 days after payment;Pellet diameter:2-12mm;
Dimension(L*W*H):1240*580*1000mm;Voltage:380V;
Brand Name:GEMCO;Countries:South Africa, Russia, America;
Name:Wood granultor pellet machine;Warranty:1 Year;
Advantages:heating, industrial electricity and others;Selling Units:Single item;
Usage:making biomass energy;Condition:New;
Motor of wood pellet machine:electric motor;Shape:Length of the pellets can be adjustable by control the cutting knife;
Package Type:All wood granulator packed with plywood case, also can be customized as your requirement.;Single gross weight:340 KG;
Material:straw, hay, wood, sawdust.etc;

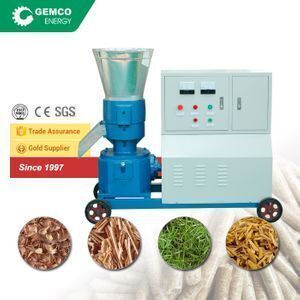

small scale saw dust pellet making uses wood granulator pellet making machine for sale
small scale saw dust pellet making uses wood granulator pellet making machine for sale

small scale saw dust pellet making uses wood granulator pellet making machine for sale

Small scale wood granulator is also called flat die wood pellet machine, which is a small type saw dust pellet making machine with small capacity. This wood granulator has two types, D-type and R-type. The two type flat die wood pellet machine are all good at making wood pellets. Relatively speaking, the yield of D-type is less than R-type. So it is more suitable for processing soft wood raw materials ( like saw dust ). Besides, the investment is lower. R-type is more suitable for harder wood raw materials ( like Oak wood ). From the aspect of structure, the roller of D-type wood granulator is fixed on the upper machine and the die rotates with the main shaft. R-type is contrary to D-type, the die of R-type is fixed while the roller rotates.


GEMCO D-Type C model wood granulator pellet machines

small scale saw dust pellet making uses wood granulator pellet making machine for sale

ModelPower(kw)Output(kg/h)Weight(kg)Packing Size(mm)
ZLSP-D 150C3phase 5.560-110105/1251000*480*780
ZLSP-D 200C3phase 7.580-120210/2301050*550*830
ZLSP-D 230C3phase 11120-200290/3201200*560*950
ZLSP-D 260C3phase 15160-250340/3701240*580*1000
ZLSP-D 300C3phase 22250-400425/4651300*620*1100

small scale saw dust pellet making uses wood granulator pellet making machine for sale

Click Now for Catalogs & Factory Price!








Main structure in wood pellet machine

small scale saw dust pellet making uses wood granulator pellet making machine for sale

There are two major parts of the wood granulator, roller and pellet die. They are the key parts during the saw dust pellet making machine and they decide the quality of pellets.


Wood granulator roller with a cylinder shape is large which increases the contact area between roller and materials, that improves the yield, rate of pellet making, and pellet density.
The wood pellet machine pellet die is a round plate with many holes, and the materials are pressed by the roller into those pellet die holes forming cylindrical rods.

Click Now for Catalogs & Factory Price!







The wood granulator making flow chart

small scale saw dust pellet making uses wood granulator pellet making machine for sale

Click Now for Catalogs & Factory Price!








Application of wood granulator


Flat die saw dust pellet making machine for sale is suitable for home use, small plant production and farm. The end products can be used for household heating, cooking, horse bedding, sometimes for industrial boiler heating, for its highest yield can be up to 500kg/h.
GEMCO Machinery offers all kinds of wood granulator for you.

Advantages of wood granulator pellet machine

The wood pellet machine is easy to operate and move.
Small wood granulator takes small place to put.
Small volume makes the saw dust pellet making machine easy to maintain and change spare parts.
The small scale wood granulator is cost-effective for the low price.
Flat die wood pellet machine is with CE certification, which makes sure the stable running and high performance.
The wood granulator consume lower energy producing more profits.
The end products are of high density and hardness.



Material of wood pellet machine

small scale saw dust pellet making uses wood granulator pellet making machine for sale

Click Now for Catalogs & Factory Price!








Packing & Delivery

small scale saw dust pellet making uses wood granulator pellet making machine for sale small scale saw dust pellet making uses wood granulator pellet making machine for sale

Click Now for Catalogs & Factory Price!






Certifications of wood granulator

small scale saw dust pellet making uses wood granulator pellet making machine for sale



GEMCO wood granulator agents recruiting!

small scale saw dust pellet making uses wood granulator pellet making machine for sale

Do you want to start a business in wood granulator selling? Do you want to get huge profits? There is a great opportunity that should not be missed! We are searching for the agent in each kind of wood granulator pellet machine selling, if you have the plan and ability, and if there is large potential of pellets consuming market in your local position. You can join us, for we provide all-around service to our agent! Besides, we will transfer the order to you, if we get the order from your agency area! It is really a great chance, we are hopefully waiting for your joining!

Click Now for Catalogs & Factory Price!







Customer visiting for GEMCO wood granulator pellet machine

small scale saw dust pellet making uses wood granulator pellet making machine for sale
small scale saw dust pellet making uses wood granulator pellet making machine for sale
