Continuous biomass sawdust carbonization furnace charcoal making machine

Supplier: Henan Shanjie Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Guo manman
Price: $28000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Multifunctional;	Showroom Location:	None;
Power(W):	1.5kw;	Voltage:	220v/380v;
Function:	Sawdust Briquette Carbonizing Machine;	After-sales Service Provided:	Field installation, commissioning and training;
Packaging Detail:	1, Small size equipment is packed by wooden case which delivery by LCL shipping . 2, Big size equipment is nude packing which delivery by full container load,small parts will be packed into wooden case. 3, Special packing requirement as customers requirement .;	Applicable Industries:	Energy & Mining;
Dimension(LWH):	30m15m7m;	Effective Volume:	4/6/8m3;
Temperatur:	800℃~1000℃;	Port:	Qingdao,Shanghai,Tianjin;
Brand Name:	ShanJie;	Advantage:	Continuous Working Environment Friendly;
Weight:	4000-6000KG;	Place of Origin:	Henan China;
Carboniztion type:	Flowing;	Warranty:	1 year;
Product name:	wood charcoal carbonization furnace;	Local Service Location:	None;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Raw material:	wood, coconut shells, bamboo;
Condition:	New;	Capacity:	0.5-3T;
Power(W):	1.5kw;	Color:	Customer's Request;
Keywords:	wood charcoal carbonization furnace;	Supply Ability:	89 Set/Sets per Quarter;
Certification:	CE ISO;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

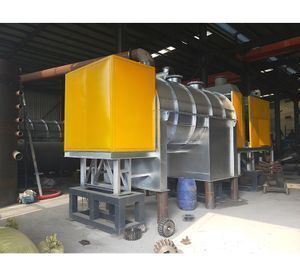

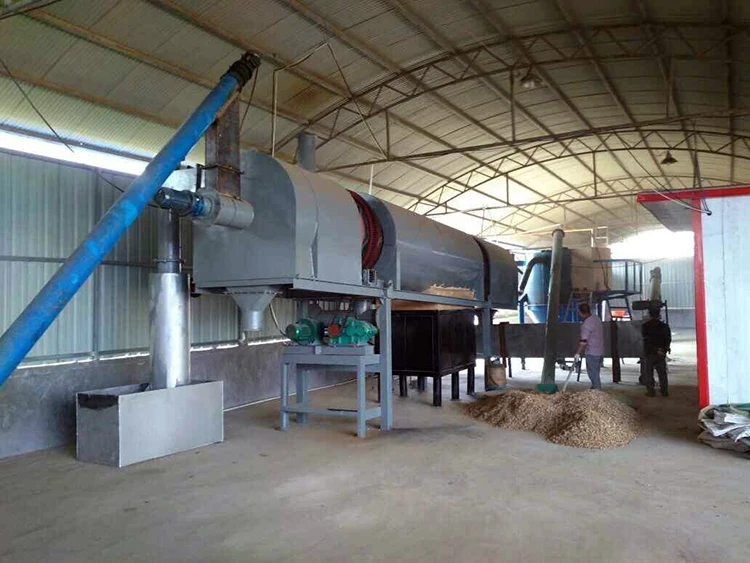

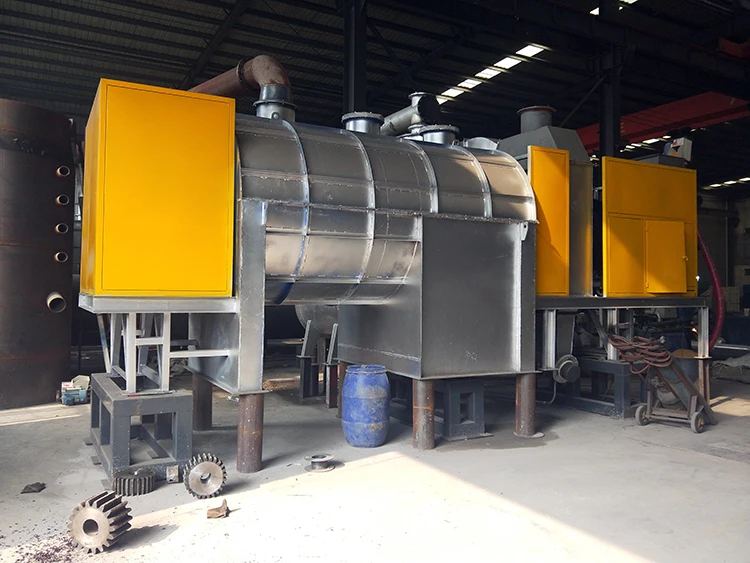

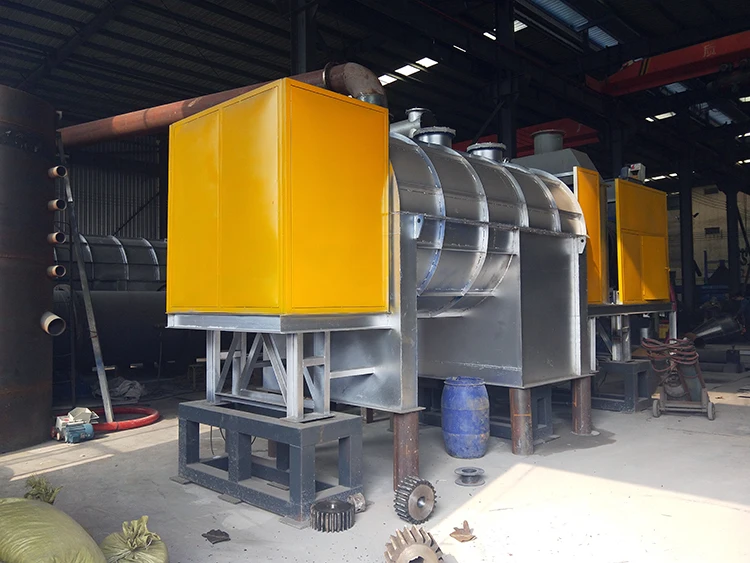

Continuous biomass sawdust carbonization furnace charcoal making furnace

Product Description

Continuous biomass sawdust carbonization furnace includes many carbonization chambers. This multi-layer chamber can be adapted to heating up and gas volatilization of different carbonization time and temperature, in accordance with different biomass. Combustible gas and charcoal will be purified and collected by auxiliary equipment. Carbonization system is the key biomass charcoal making machine; so we can design carbonization chambers with different quantity, length as well as material quality, according to different raw materials. Thus can produce more biomass gas and charcoal, and control the process better.

Continuous biomass sawdust carbonization furnace
1. No-smoking
2. Good quality
3. Easy to operate and to maintain
4. Short delivery time

Advantages of Continuous biomass sawdust carbonization furnace
1. Advanced energy-saving charcoal stove smoke-free
2. Wood biomass briquette carbonization stove have an advanced filter.
3. Can be decomposition of the smoke in the water and tar quickly, to smoking, and environmental effects,
4. The carbonizing temperature can be controlled and adjusted; stable structure, long service life, easy operation
5. The final charcoal has the feature of high calory, low ash content, low smoking etc.
6. Great carbonizing ratio(99%) and short carbonizing time

Product parameters

Model	SJM-05	SJM-10	SJM-20	SJM-30
Hourly Feeding Capacity	500kg	0.8-1 Tons	1.5-2Tons	2.5-3Tons
Working Method	Continuous
Raw Materials	1. All kinds of biomass waste, such as sawdust, Coconut shells, olive shells, palm shells, bamboo,etc.
	2. Civil sludge, municipal sludge, industrial sludge,etc
	3. MSW
Reactor Size	Φ800	Φ1000	Φ1300	Φ1700
Pattern	Horizontal & Rotary
Heating Materials	Charcoal, Wood, diesel, Natural Gas, LPG, Biomass, etc.
Total Power	40 kw/h	55kw/h	60kw/h	72kw/h
Floor Area (LWH)	30m15m7m	35157m	451510m	501510m
Operating Pressure	Constant Pressure
Cooling Method	Recycling Water Cooling
Life span	5-8 Years
