Large Capacity Log Biochar BBQ Charcoal Making Machine Price

Supplier: Henan Kunteng Machinery Manufacturing Co., Ltd.
Region: Henan, China
Contact: Mr Teng
Price: $1771.00 / 1 - 4 sets
$1181.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Core components:	engine	Key words:	Log Biochar Charcoal Machine
Name:	Log Biochar Charcoal Machine	port:	Qingdao, Tianjin, Lianyun, Shanghai, China
Weight (kg):	400	Voltage:	380V
Video shipment inspection:	if	color:	customer request
brand:	Kun Teng	Health status:	new
Warranty:	1 year	raw material:	logs, biomass
capacity:	1-5 tons	Showroom location:	Turkey, France, Germany, Vietnam, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Kenya, UAE, Bangladesh
Supply capacity:	100 log biochar charcoal machines per month	Effective volume:	200
Dimensions (LWH):	1.51.21.4m	usage:	Making charcoal, biochar
Package preview:		Main selling points:	easy to operate
strength:	2.5KW	Packaging Details:	Log biochar charcoal machine packaging: 1. A single machine is packed in a wooden box. 2. The machines of the whole production line will be loaded into the container directly.
product name:	Log Biochar Charcoal Machine	Marketing Type:	Hot Products of 2022
application:	charcoal, biochar	Applicable industries:	Manufacturing plants, farms, home use, energy and mining, agriculture
Origin:	Henan, China	Advantage:	smoke-free
Finished goods:	Making charcoal, biochar	Core component warranty:	1 year
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Cash	Mechanical test report:	if

Product overview

Carbonization process: feeding and sealing the furnace → raw material preheating and drying → anaerobic carbonization → cooling to produce carbon.

Details

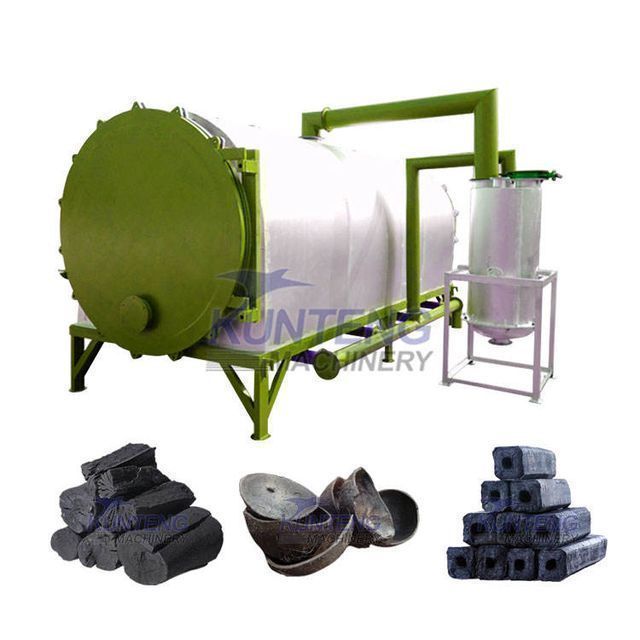

Log biological carbon charcoal machine

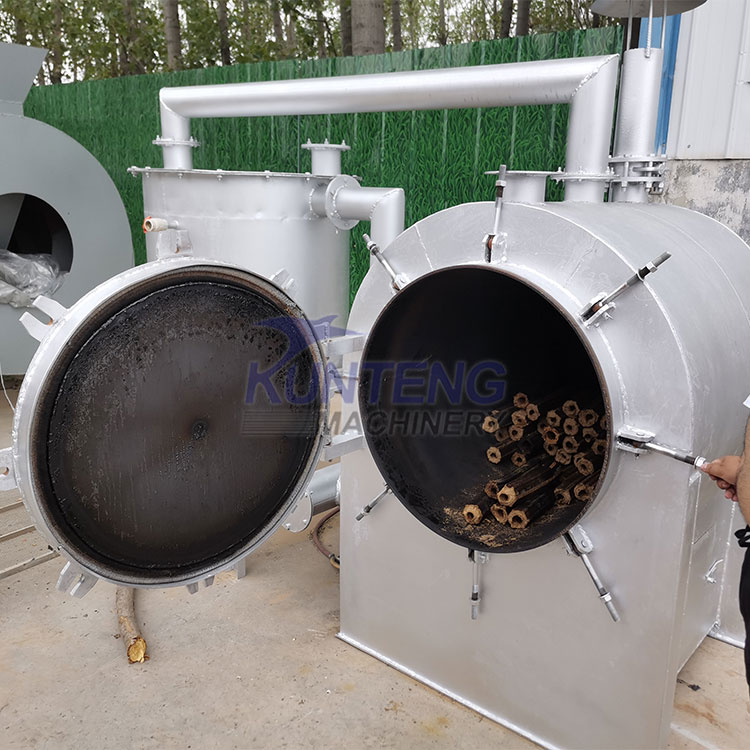

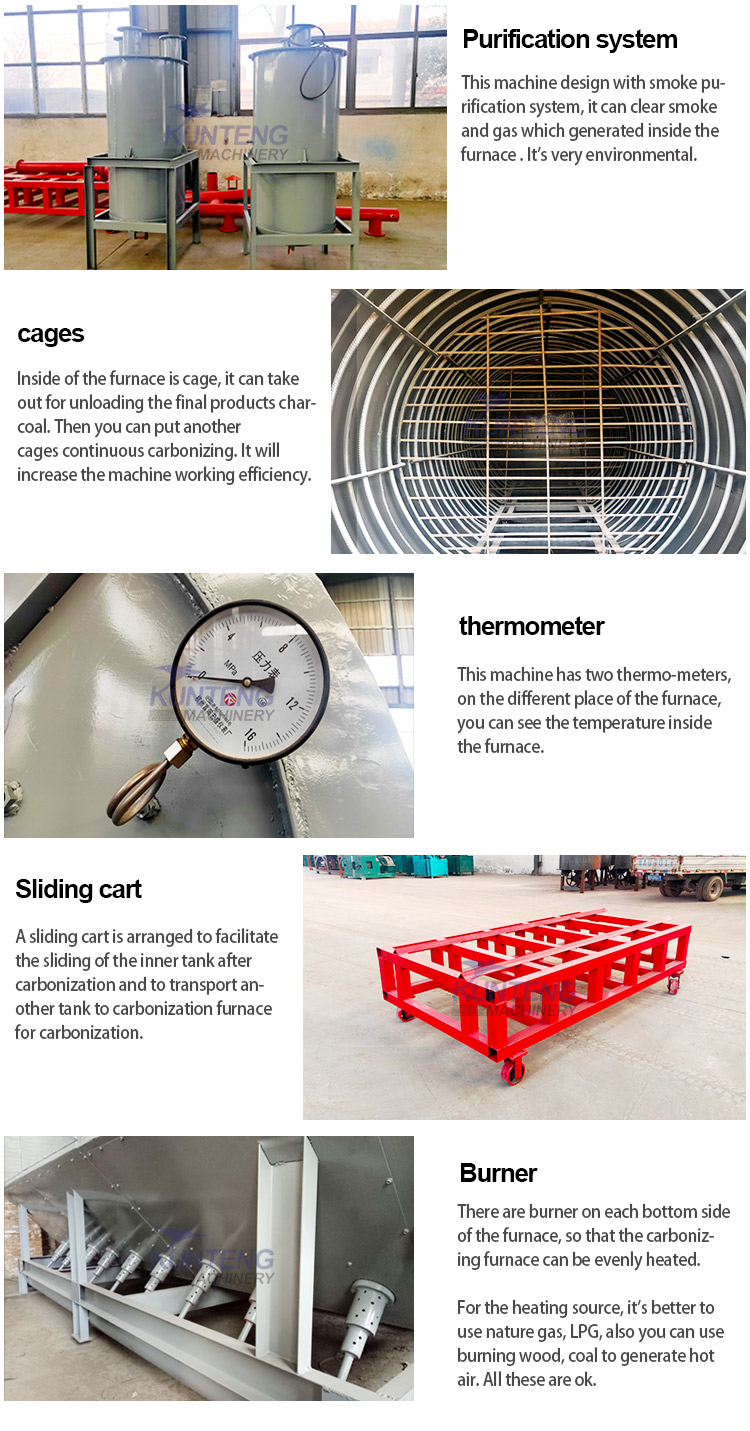

log biochar charcoal machine,Biochar making machine and barbecue charcoal machineThe horizontal manufacturing process is adopted, with a three-layer structure, and polyurethane insulation material is used in the middle to maintain the temperature in the furnace. The furnace door is sealed with packing, no air can enter, and the carbon output is much higher than that of conventional carbonization furnaces. Because a large amount of light yellow combustible gas is produced during the carbonization process, it is called a green carbonization furnace. These gases pass through the carbonization furnace with its own pipeline, and the combustible gas is transported to the combustion zone of the carbonization furnace for secondary fire heating. More environmentally friendly and more fuel-efficient. Excess gas from the charring furnace can be used to dry sawdust or fire boilers. The cooling time of the carbonization furnace is shorter. We use the gap between the middle layers to cool the carbonization furnace naturally with unit water cooling, which is more efficient and convenient.

Log Biochar Machine, Biochar Making Machine and BBQ Charcoal MachineDifferent materials can be used as heat source. Such as waste wood, coal, gas, natural gas, liquefied petroleum gas, combustible gas (generated in the carbonization process)

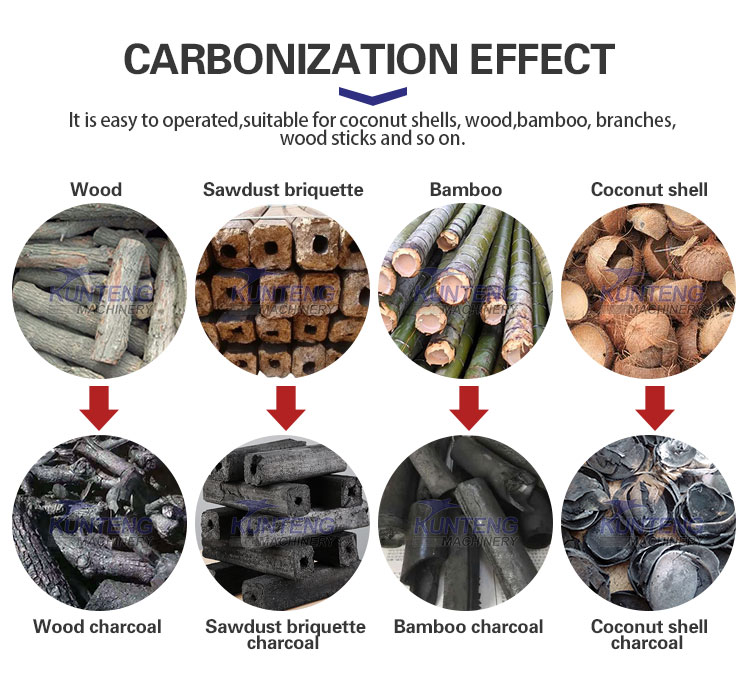

Rice husks, palm shells, logs, coconut shells, sawdust, bamboo or other biomass can be carbonized into rice husk charcoal, palm shell charcoal, coconut shell charcoal, bamboo charcoal, sawdust charcoal, and biomass charcoal through carbonization equipment.

raw materialLog Biochar Machine, Biochar Making Machine and BBQ Charcoal MachineCan be rice husks, coconut shells, wood, biomass, some agricultural crops, bamboo, waste wood, branches, trunks, logs, bark, stumps, roots, wooden pallets, sawdust, wood shavings, wood chips, fruit wood, rice husks, corn Cores, peanut shells, furfural slag, palm shells, semi-coke, etc.

We can customize reasonable and efficient production lines according to customer site, raw material, output and other requirements.

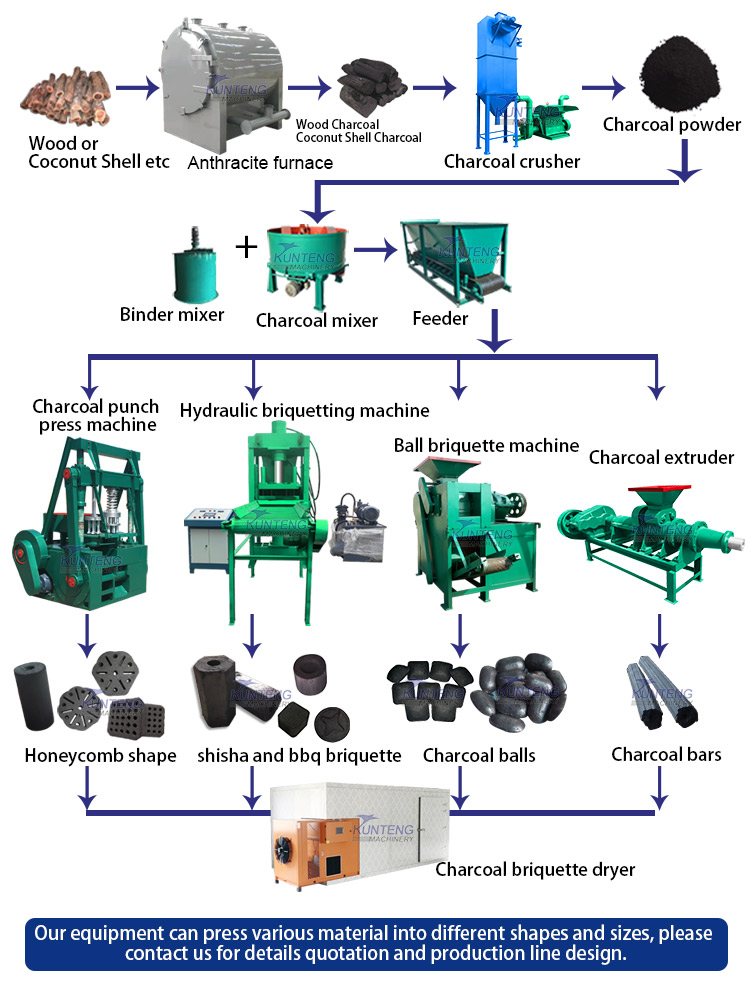

First, biomass such as palm shells, coconut shells, wood, bamboo, etc. is carbonized into charcoal through a carbonization furnace, and enters the elevator and storage tank. According to the different raw materials of customers, continuous carbonization furnace, horizontal carbonization furnace and lifting carbonization furnace can be selected.
Secondly, charcoal can be crushed into charcoal powder with a dust-free grinder.
Third, the charcoal powder is stirred by a twin-shaft mixer and agitator.

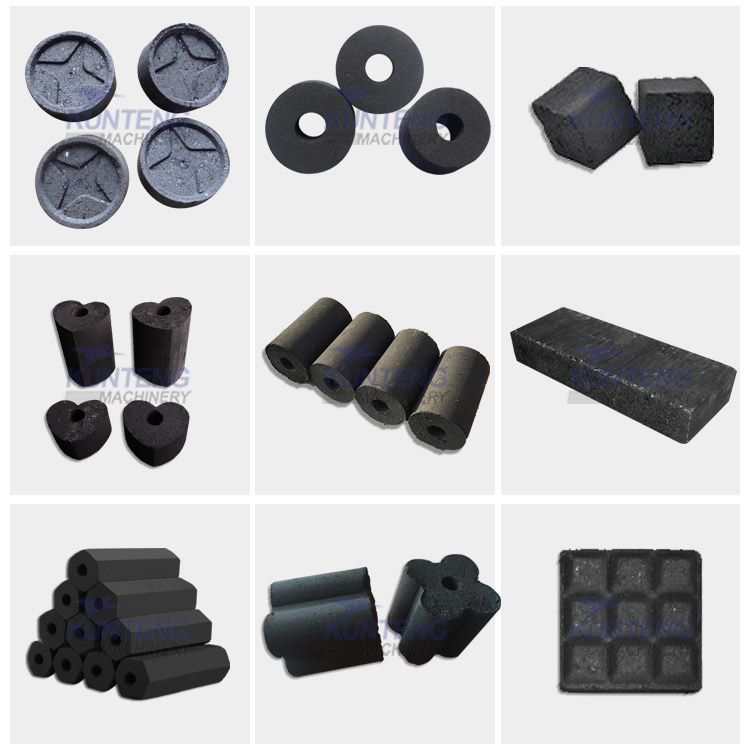

Finally, the charcoal powder is shaped into spherical, cylindrical, table-shaped, and cube-shaped by the molding machine, and then enters the dryer for drying.

The production lines of whole wood log biochar machine, biochar making machine and barbecue charcoal machine are fully automatic.
