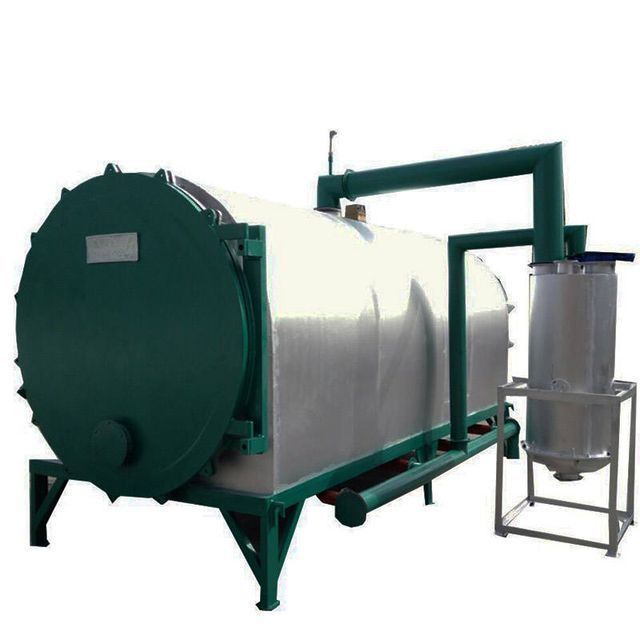

Philippine Coal Charcoal Carbonization Furnace Machine
-
Supplier: HENAN SUPERB MACHINERY CO., LTD. -
Region: Henan, China -
Contact: Ms hn Superb -
Price: $5000.00 / 1 - 1 sets
$4850.00 / >=2 sets -
Min. Order: 1 set
Product details
| Certification: | ISO9001:2008, EU certification | Weight (kg): | 1680 |
| Applicable industries: | Manufacturing plants, farms, home use, energy and mining | Mechanical test report: | if |
| Main selling points: | competitive price | Major equipment: | Coal charcoal carbonization furnace machine |
| Install: | Engineer's Guide | Packaging Details: | Standard export containers, bare hosts, motors and small parts are packed in wooden boxes. |
| place of origin; place of origin: | Henan, China | Video shipment inspection: | if |
| Supply capacity: | 500 sets per month | Core components: | PLC, motor |
| Warranty: | 1 year | Dimensions (L*W*H): | 2.86*1.6*2.1m |
| product name: | Coal charcoal carbonization furnace machine | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| brand: | superb | price: | Competitive |
| Specification: | can be customized | Marketing Type: | New Products 2022 |
| port: | Qingdao, Tianjin, Shanghai or other port requirements | Factory tour: | warm welcome |
| Core component warranty: | 1 year | capacity: | 2000-10500kg/24h |
| Showroom location: | Canada, Philippines, Indonesia, Pakistan, Mexico, Russia, South Africa, Kazakhstan | Advantage: | Low cost, large capacity, long service life |
| Voltage: | 220c, 380v | Key words: | Coal charcoal carbonization furnace machine |
| State of health: | new | strength: | According to the model |

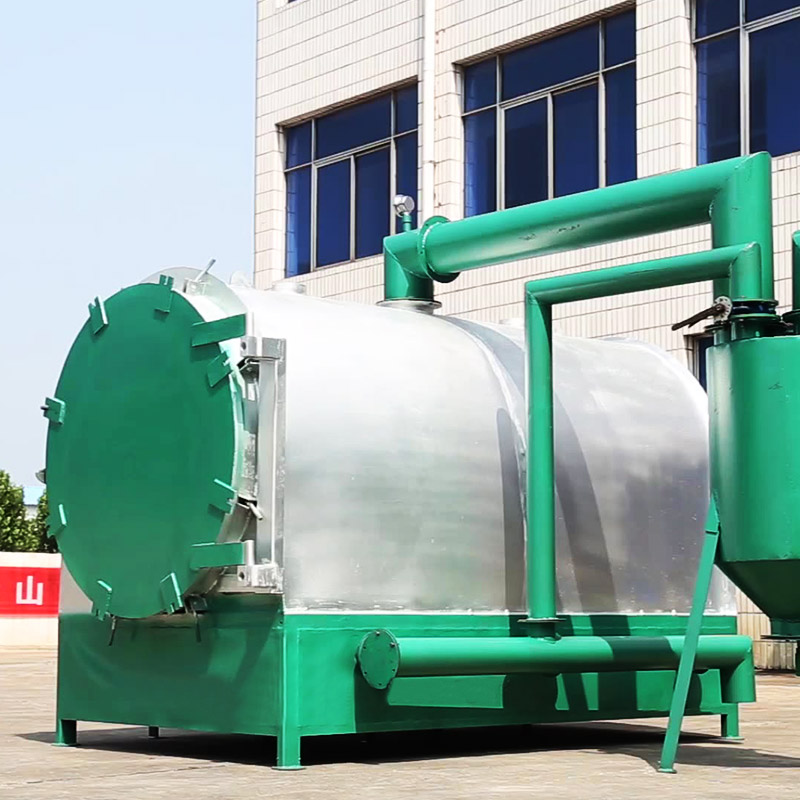

Philippine Coal Charcoal Carbonization Furnace Machine
Product Description
What is a charcoal charcoal furnace machine?
Coal charcoal carbonization furnace machine is a new airflow carbonization furnace, also known as charcoal carbonization furnace. this isUsed to make charcoal from wood and various biomass.Using the new and advanced hot air carbonization technology, compared with the 80% carbonization rate of the traditional carbonization furnace, the carbonization rate is greatly increased to 99%! It has a short charcoal making time. This kind of stove is safe and easy to operate, and the charcoal made by the carbonization stove can be the material of activated carbon. Therefore, it enjoys a high reputation in many industries such as charcoal industry and boiler industry!
Coal charcoal carbonization furnace machine features
1.New carbonization equipment, the output is higher than that of ordinary furnaces, the speed is fast, the carbon content is high, and the operation is simple
2.With oil fume purification device, can store tar, no leakage, long service life;
3.suitableSuitable for wood, logs, machine-made charcoal, nut shells, bamboo, etc.,Biomass feedstock in different shapes.
2.With oil fume purification device, can store tar, no leakage, long service life;
3.suitableSuitable for wood, logs, machine-made charcoal, nut shells, bamboo, etc.,Biomass feedstock in different shapes.
raw materialCoal charcoal carbonization furnace machine
Coal charcoal carbonization furnace machining process
1.hot
After the sealing work, heat the stove with wood scraps or gas. Mainly cook on high fire for 10 minutes, when the temperature reaches 90 degrees Celsius, switch to slow fire. This process takes 80-120 minutes to reduce the water vapor in the material.
2.Pyrolysis
Continue to heat, when the temperature reaches 180-235 degrees Celsius, for 3-5 hours, this process will produce gas. This gas is then used as fuel for heating. The whole process takes about 8 hours. When the temperature reaches a maximum and decreases, the retort process ends.
3.cool down
Hang the inner pot outside, and seal the lid's plumbing. Let it cool naturally. Long cooling time and good quality charcoal. You can remove the charcoal when the temperature is below 50 degrees. Otherwise, the charcoal will burn again when it encounters oxygen in the air.
After the sealing work, heat the stove with wood scraps or gas. Mainly cook on high fire for 10 minutes, when the temperature reaches 90 degrees Celsius, switch to slow fire. This process takes 80-120 minutes to reduce the water vapor in the material.
2.Pyrolysis
Continue to heat, when the temperature reaches 180-235 degrees Celsius, for 3-5 hours, this process will produce gas. This gas is then used as fuel for heating. The whole process takes about 8 hours. When the temperature reaches a maximum and decreases, the retort process ends.
3.cool down
Hang the inner pot outside, and seal the lid's plumbing. Let it cool naturally. Long cooling time and good quality charcoal. You can remove the charcoal when the temperature is below 50 degrees. Otherwise, the charcoal will burn again when it encounters oxygen in the air.

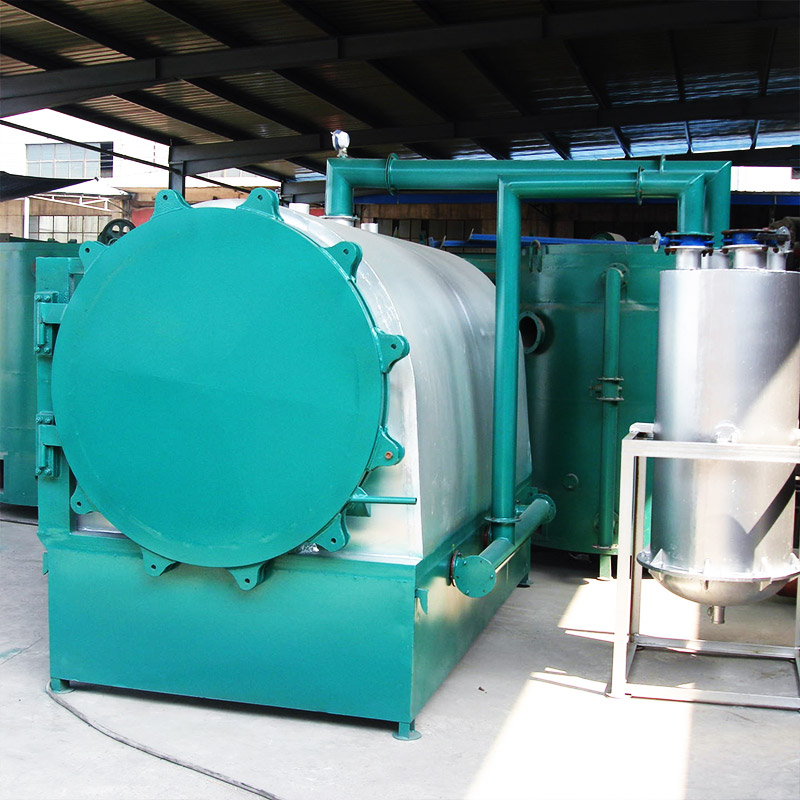

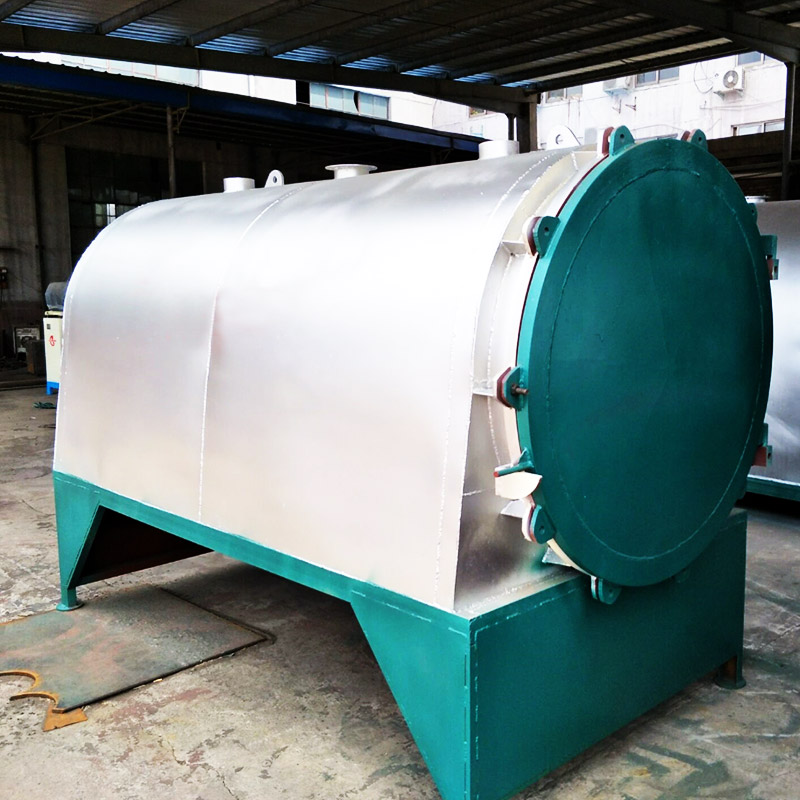

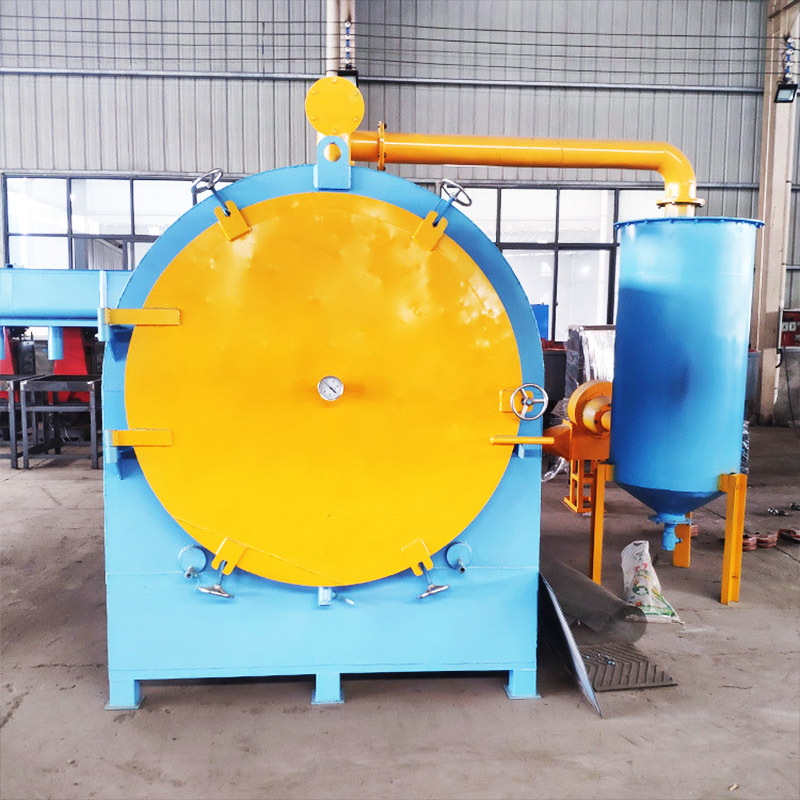

Coal charcoal carbonization furnace machine structure
Finished product display
advantage
1.pollution-free: There are two reasons: the frog and the gas flow will be recovered from the flue gas recovery unit and used again to heat the kiln. We have installed a special device that can use liquefied gas as energy to heat the carbonization kiln without any smoke.

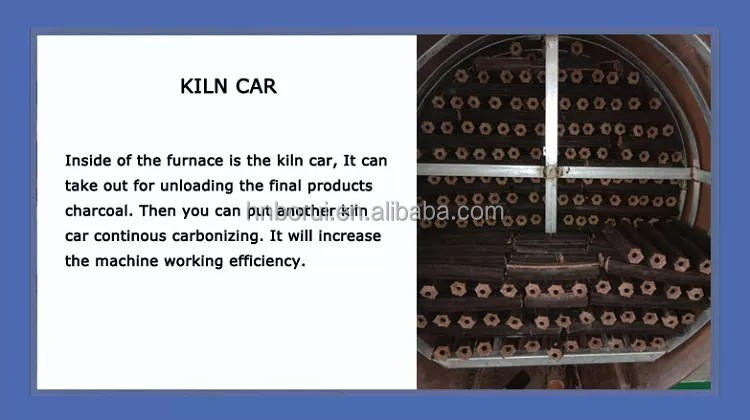

2.The shorter the carbonization time: This model has three inner furnaces. When one inner furnace is completed (6-8 hours), the inner furnace is lifted out with a sling to let it cool naturally, and the other inner furnace is hoisted in at the same time. The three inner furnaces can work continuously. It can carbonize 3-4 inner furnaces in 24 hours.
3.easy to use: One person can control 2-3 units, but need the help of a crane; When the carbonization of one inner furnace is completed, use lifting tools to lift the inner furnace from the outer furnace, let the inner furnace cool naturally, and at the same time put the other inner furnace into the In the outer furnace, this can save a lot of cooling time and improve production efficiency a lot.
2.The shorter the carbonization time: This model has three inner furnaces. When one inner furnace is completed (6-8 hours), the inner furnace is lifted out with a sling to let it cool naturally, and the other inner furnace is hoisted in at the same time. The three inner furnaces can work continuously. It can carbonize 3-4 inner furnaces in 24 hours.
3.easy to use: One person can control 2-3 units, but need the help of a crane; When the carbonization of one inner furnace is completed, use lifting tools to lift the inner furnace from the outer furnace, let the inner furnace cool naturally, and at the same time put the other inner furnace into the In the outer furnace, this can save a lot of cooling time and improve production efficiency a lot.
Technical Parameters
Model | STHL120 | STHL170A | STHL170B | STHL190 | |||
capacity | 2000kg/24 hours | 4000kg/24 hours | 7000kg/24 hours | 10500 kg/24 hours | |||
size | 2.86*1.6*2.1m | 2.85*2.1*2.1m | 4.6*2.1*2.1m | 5.5*2.2*2.2m | |||
weight | 1.68 tons | 3 tons | 3.5 tons | 6.8 tons | |||
Inner pot diameter | 1.2m | 1.7m | 1.7m | 1.9m | |||
Inner pot length | 2.6m | 2.2 meters | 4.4m | 5.3m | |||
volume | 3 cubic meters | 5 cubic meters | 10 cubic meters | 15 cubic meters | |||
carbonization | 6-8 hours | ||||||
