Coco coconut shell charcoal carbonization furnace machine
-
Supplier: HENAN SUPERB MACHINERY CO., LTD. -
Region: Henan, China -
Contact: Ms hn Superb -
Price: $5000.00 / 1 - 1 sets
$4800.00 / >=2 sets -
Min. Order: 1 set
Product details
| Core components: | PLC, motor | Dimensions (L*W*H): | 2.85*2.1*2.1m |
| Certification: | ISO9001:2008, EU certification | Core component warranty: | 1 year |
| Factory tour: | warm welcome | strength: | According to the model |
| Major equipment: | Carbonization furnace machine | capacity: | 4000kg/24 hours |
| Voltage: | 220c, 380v | Weight (kg): | 3000 |
| Applicable industries: | Manufacturing plants, farms, home use, energy and mining | Key words: | Carbonization furnace machine |
| Specification: | can be customized | product name: | Coco coconut shell charcoal carbonization furnace machine |
| Video shipment inspection: | if | Main selling points: | competitive price |
| Install: | Engineer's Guide | Health status: | new |
| price: | Competitive | Mechanical test report: | if |
| Warranty: | 1 year | Packaging Details: | Standard export containers, bare hosts, motors and small parts are packed in wooden boxes. |
| Marketing Type: | New Products 2022 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Showroom location: | Canada, Philippines, Indonesia, Pakistan, Mexico, Russia, South Africa, Kazakhstan | Supply capacity: | 500 sets per month |
| brand: | superb | port: | Qingdao, Tianjin, Shanghai or other port requirements |
| Advantage: | Low cost, large capacity, long service life | Origin: | Henan, China |

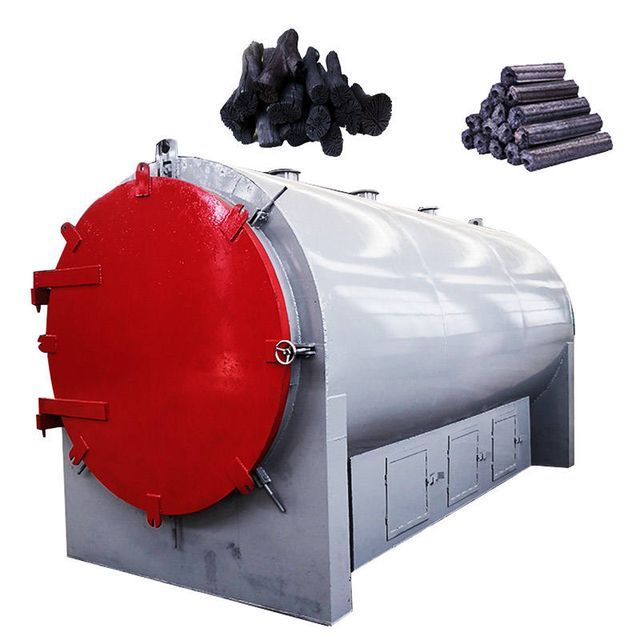

Coco coconut shell charcoal carbonization furnace machine
Product Description
What is Coco coconut shell charring machine?
Coco coconut shell carbonization furnace is a new airflow carbonization furnace, also known as charcoal carbonization furnace. Coco coconut shell charcoal charcoal furnace machine isUsed to make charcoal from wood and various biomass.Using the new and advanced hot air carbonization technology, compared with the 80% carbonization rate of the traditional carbonization furnace, the carbonization rate is greatly increased to 99%! It has a short charcoal making time. This kind of stove is safe and easy to operate, and the charcoal made by the carbonization stove can be
Activated carbon material. Therefore, it enjoys a high reputation in many industries such as charcoal industry and boiler industry!
Activated carbon material. Therefore, it enjoys a high reputation in many industries such as charcoal industry and boiler industry!
Coco coconut shell charcoal carbonization furnace machine features
1.New carbonization equipment, the output is higher than that of ordinary furnaces, the speed is fast, the carbon content is high, and the operation is simple
2.With oil fume purification device, can store tar, no leakage, long service life;
3.suitableSuitable for wood, logs, machine-made charcoal, nut shells, bamboo, etc.,Biomass feedstock in different shapes.
2.With oil fume purification device, can store tar, no leakage, long service life;
3.suitableSuitable for wood, logs, machine-made charcoal, nut shells, bamboo, etc.,Biomass feedstock in different shapes.
Coco coconut shell charcoal carbonization furnace raw material
Coco coconut shell charcoal carbonization furnace machining process
1.hot
After the sealing work, heat the stove with wood scraps or gas. Mainly cook on high fire for 10 minutes, when the temperature reaches 90 degrees Celsius, switch to slow fire. This process takes 80-120 minutes to reduce the water vapor in the material.
2.Pyrolysis
Continue to heat, when the temperature reaches 180-235 degrees Celsius, for 3-5 hours, this process will produce gas. This gas is then used as fuel for heating. The whole process takes about 8 hours. When the temperature reaches a maximum and decreases, the retort process ends.
3.cool down
Hang the inner pot outside, and seal the lid's plumbing. Let it cool naturally. Long cooling time and good quality charcoal. You can remove the charcoal when the temperature is below 50 degrees. Otherwise, the charcoal will burn again when it encounters oxygen in the air.
After the sealing work, heat the stove with wood scraps or gas. Mainly cook on high fire for 10 minutes, when the temperature reaches 90 degrees Celsius, switch to slow fire. This process takes 80-120 minutes to reduce the water vapor in the material.
2.Pyrolysis
Continue to heat, when the temperature reaches 180-235 degrees Celsius, for 3-5 hours, this process will produce gas. This gas is then used as fuel for heating. The whole process takes about 8 hours. When the temperature reaches a maximum and decreases, the retort process ends.
3.cool down
Hang the inner pot outside, and seal the lid's plumbing. Let it cool naturally. Long cooling time and good quality charcoal. You can remove the charcoal when the temperature is below 50 degrees. Otherwise, the charcoal will burn again when it encounters oxygen in the air.

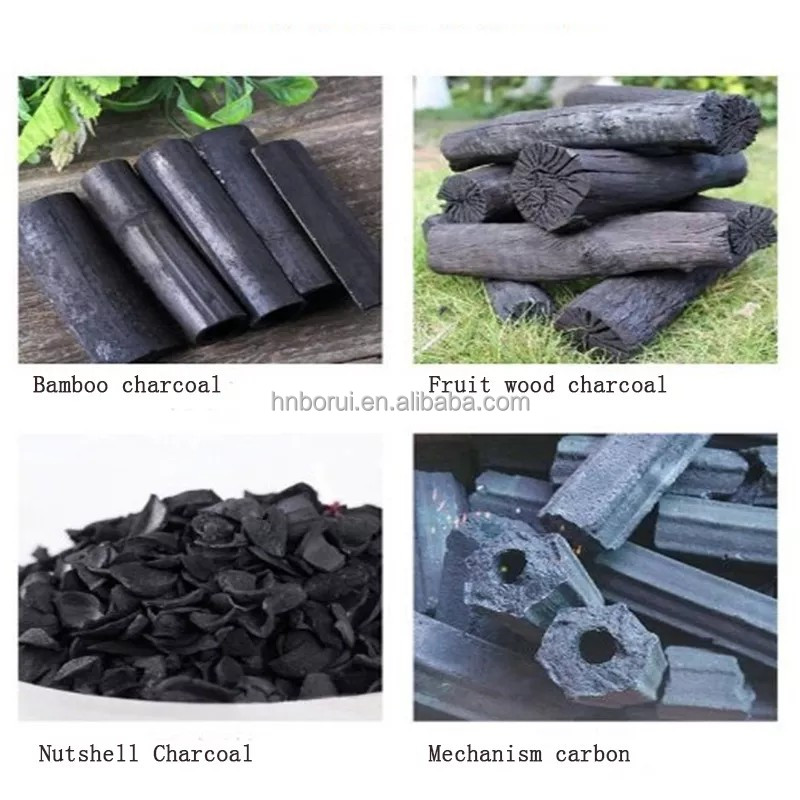

Finished product display
advantage
1.pollution-free: There are two reasons: the frog and the gas flow will be recovered from the flue gas recovery unit and used again to heat the kiln. We have installed a special device that can use liquefied gas as energy to heat the carbonization kiln without any smoke.
2.The shorter the carbonization time: This model has three inner furnaces. When one inner furnace is completed (6-8 hours), lift the inner furnace out with a sling to let it cool naturally, and at the same time lift the other inner furnace in. The three inner furnaces can work continuously. 3-4 inner furnaces can be carbonized within 24 hours.
3.easy to use: One person can control 2-3 units, but need the help of a crane; When the charring of one inner furnace is completed, use lifting tools to lift the inner furnace from the outer furnace, let the inner furnace cool naturally, and put the other inner furnace into the In the outer furnace, this can save a lot of cooling time and improve production efficiency a lot.
2.The shorter the carbonization time: This model has three inner furnaces. When one inner furnace is completed (6-8 hours), lift the inner furnace out with a sling to let it cool naturally, and at the same time lift the other inner furnace in. The three inner furnaces can work continuously. 3-4 inner furnaces can be carbonized within 24 hours.
3.easy to use: One person can control 2-3 units, but need the help of a crane; When the charring of one inner furnace is completed, use lifting tools to lift the inner furnace from the outer furnace, let the inner furnace cool naturally, and put the other inner furnace into the In the outer furnace, this can save a lot of cooling time and improve production efficiency a lot.
Technical Parameters
Model | STHL120 | STHL170A | STHL170B | STHL190 | |||
capacity | 2000kg/24 hours | 4000kg/24 hours | 7000kg/24 hours | 10500 kg/24 hours | |||
aspect | 2.86*1.6*2.1m | 2.85*2.1*2.1m | 4.6*2.1*2.1m | 5.5*2.2*2.2m | |||
weight | 1.68 tons | 3 tons | 3.5 tons | 6.8 tons | |||
Inner pot diameter | 1.2m | 1.7m | 1.7m | 1.9m | |||
Inner pot length | 2.6m | 2.2 meters | 4.4m | 5.3m | |||
volume | 3 cubic meters | 5 cubic meters | 10 cubic meters | 15 cubic meters | |||
carbonization | 6-8 hours | ||||||
