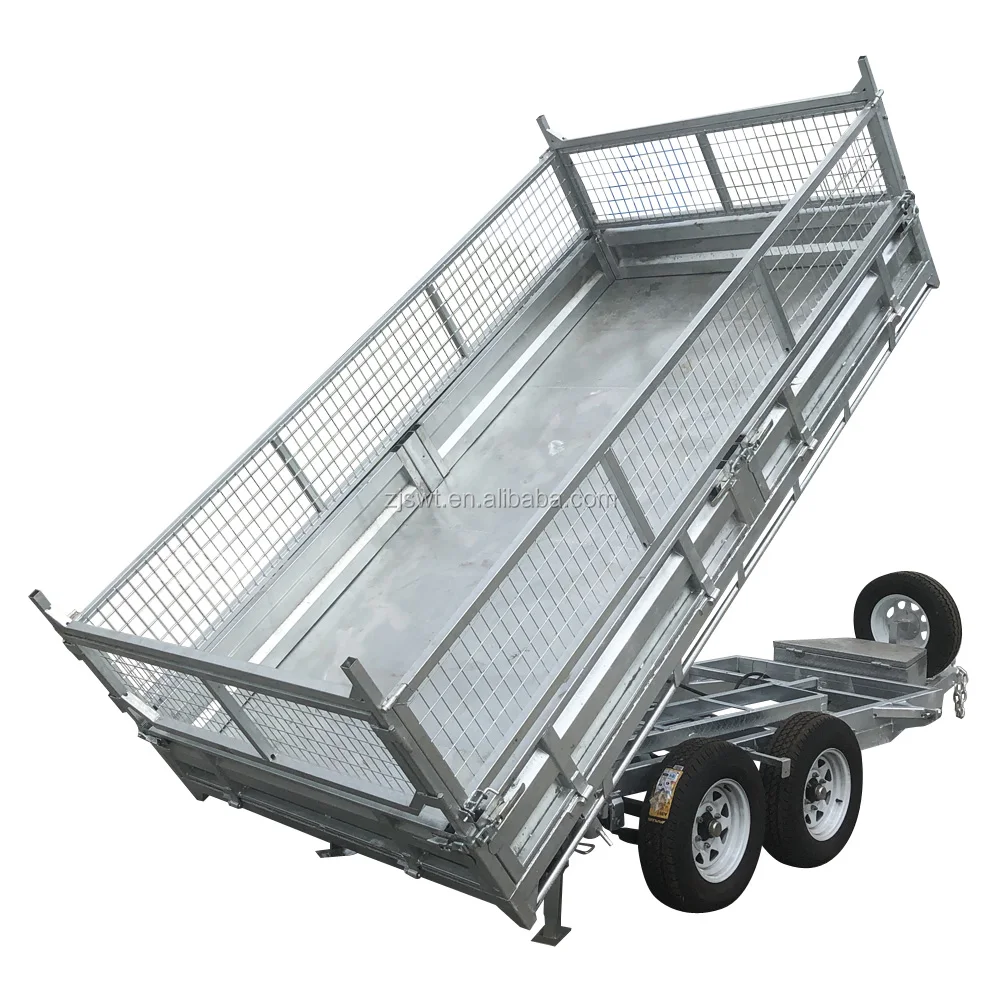

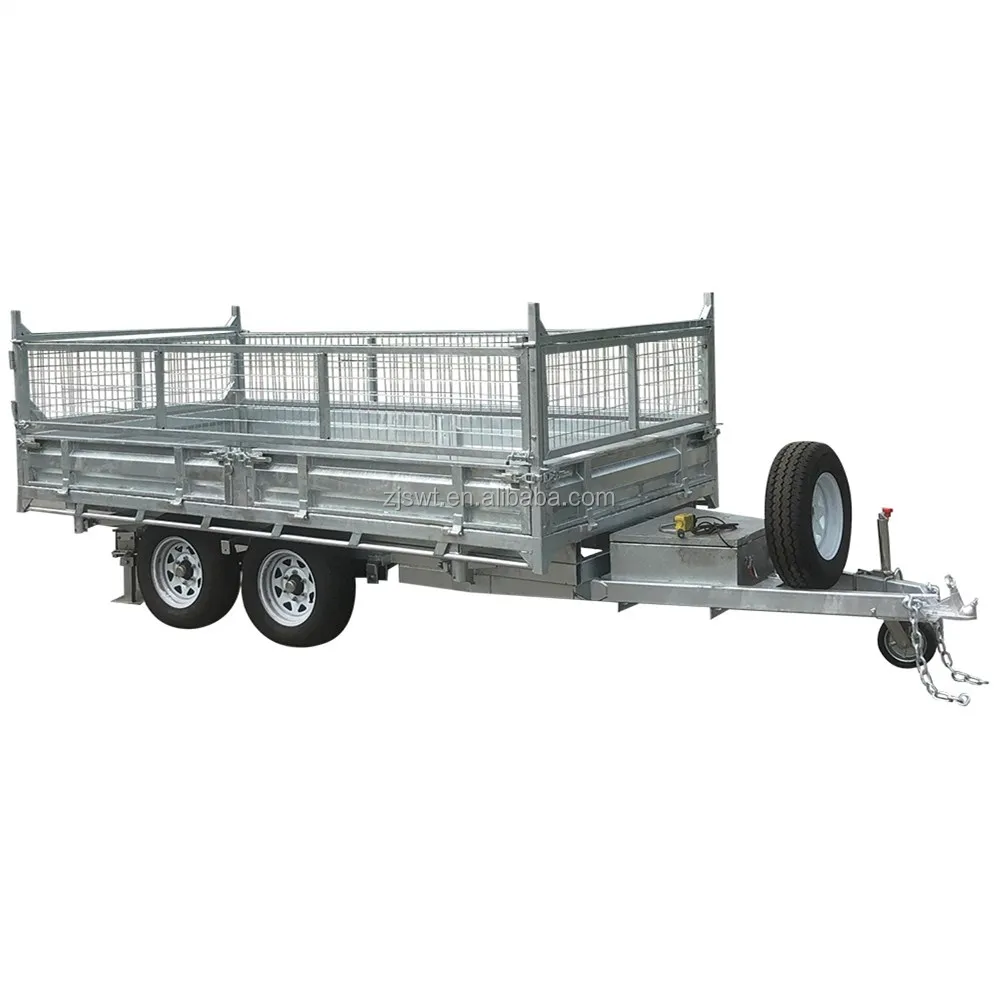

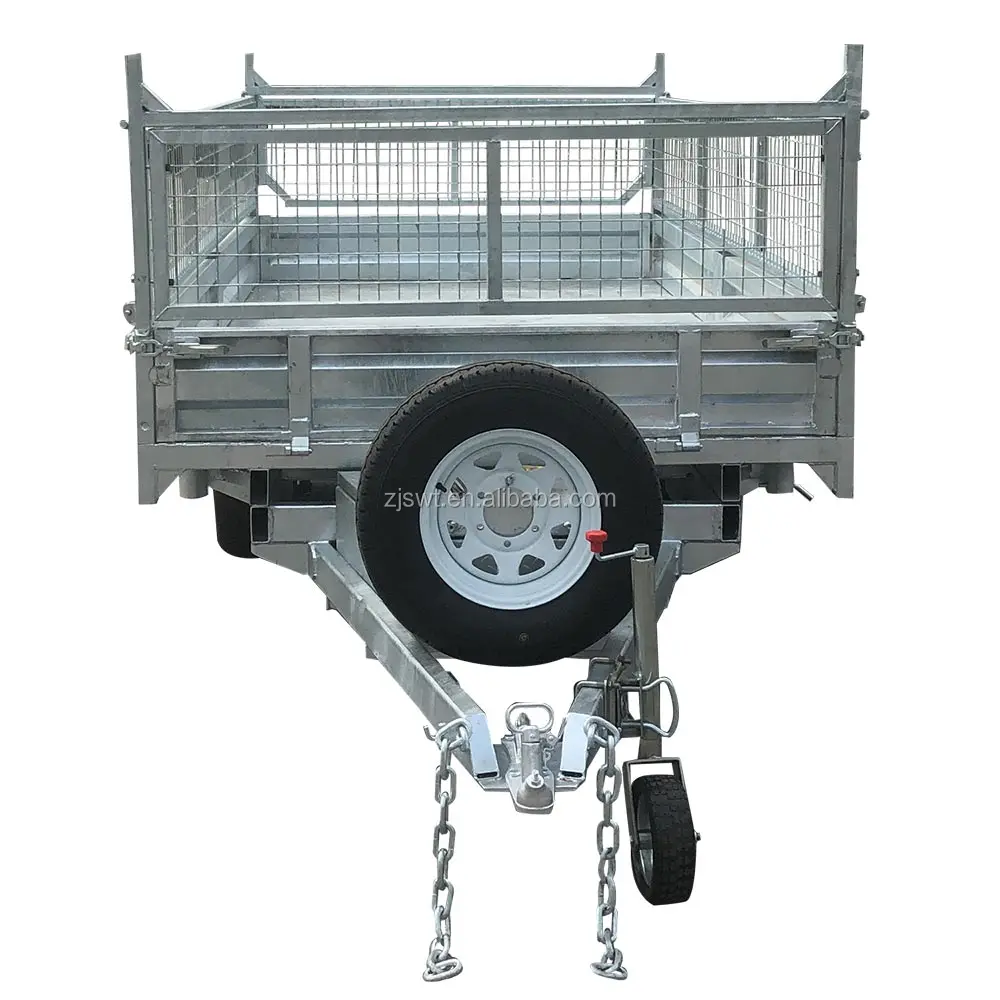

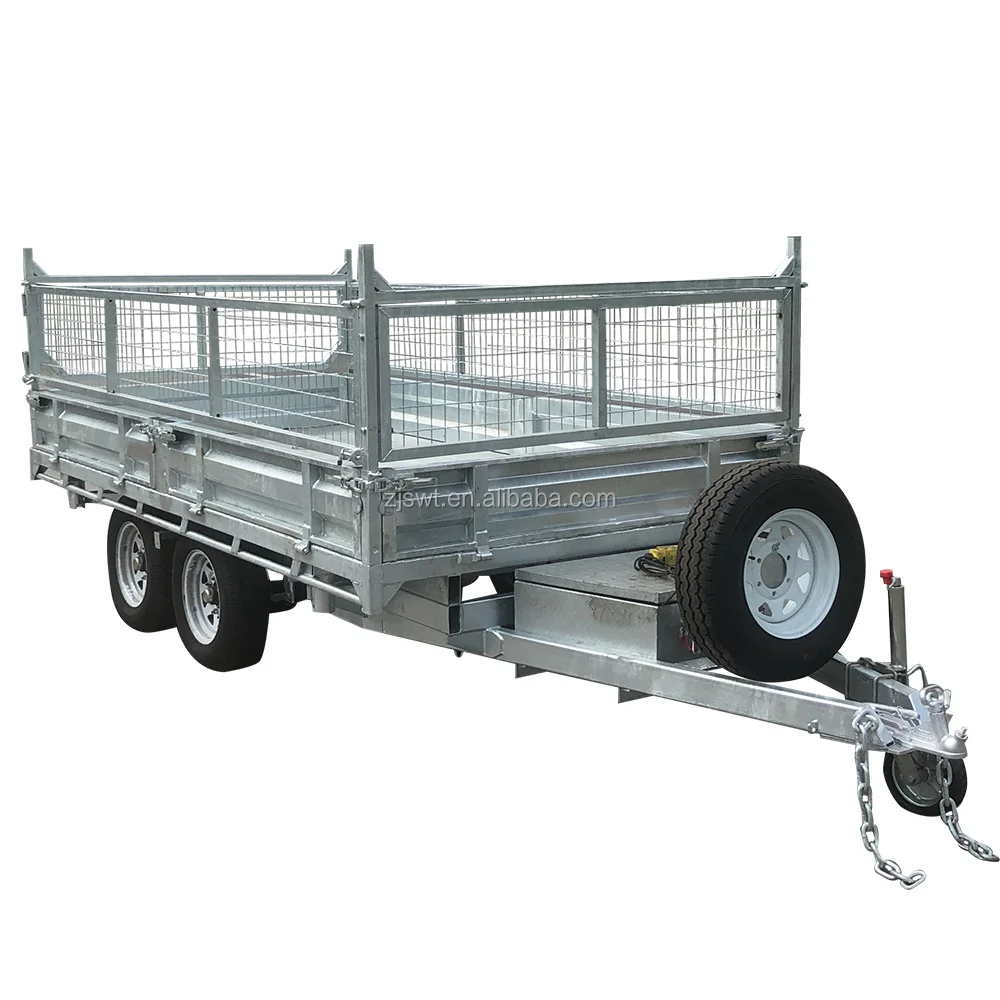

FACTORY MANUFACTURE FULLY WELDED, GALVANISED, ATM 3500KGS, 10X7 HYDRAULIC TIPPER TABLE TOP TRAILER MULTIPLE USED FOR FARMS

Product details
Upper Chassis:100x50mm RHS;ATM:3500KG;
Brand Name:SWT;Place of Origin:China;
Lower Chassis:100x50mm RHS;Supply Ability:600 Set/Sets per Month;
Max Payload:3500KG;Size:3050x2100mm;
Axle:50mm solid square beam, 10" Electric brakes;Use:Car Trailer;
Tipper Ram:5-stage, ram stroke 1100;Payment Terms:L/C,T/T;
Port:SHANGHAI;Floor & Side Panels:2.5mm checker plate, full weld;
OEM No.:HTT107;Drawbar:100x50mm RHS;
Product Description

FACTORY MANUFACTURE FULLY WELDED, GALVANISED, ATM 3500KGS, 10X7 HYDRAULIC TIPPER TABLE TOP TRAILER MULTIPLE USED FOR FARMS




Description For 10x7 Hydraulic Tipper Table Top Trailer

Drawbar

100x50mm RHS. 1600mm long with 2x13mm safety chain

Lower Chassis

100X50mm RHS (Not angle)

Upper Chassis

100X50mm RHS (Not angle)

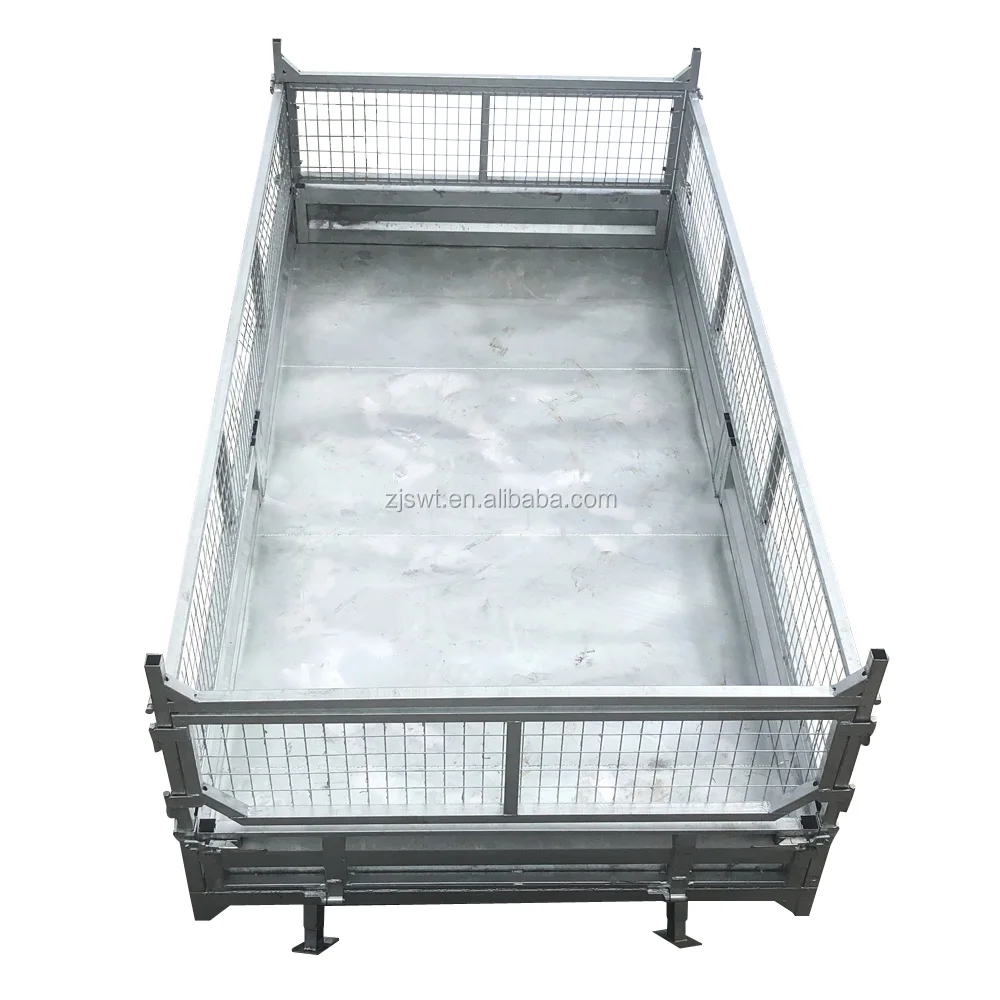

Floor & Side Panels

2.5mm Checker plate, fully welded to upper chassis (Not cheap Ribbed zinc plate)

Mudguards

2.5mm Checker plate

Axles

50x50mm Solid Square Beam, 10" Electric Brakes on 4 Wheels

Spring

7leafs rocker roller suspension (not 5leafs or 6leafs cheap and light spring)

Wheel

15inch wheel with white paint rim

Jockey wheel

10inch top wind heavy duty jockey wheel. (E-mark & DOT)

Coupler

50mm AU standard coupling, 1 7/8 NZ standard coupling, EU standard coupling

Lights

LED Lights with 7pin plug and 7 core wiring. E-mark and DOT certificated

Toolbox

2.5mm check plate Toolbox for Battery and Motor

Tipper Sys.

5 stage ram

45 degree box tipping

3500KGS tipping capacity

Motor

12V, 15L, oil tank

Surface Treatment

Hot dipped galvanizsed
