Use: | truck trailer; | Packaging Detail: | flat packing; |
FLOOR &SIDE PANELS: | CHECKER PLATE; | DRAWBAR: | 100X50 RHS; |
Port: | FOB SHANGHAI PORT; | Place of Origin: | Jiangsu China; |
CHASSIS: | 50X50 RHS; | Payment Terms: | L/C,T/T; |
Certification: | dot; | Type: | Full Trailer; |
AXLE: | 40MM SOLID SQUARE AXLE; | Size: | 2700x1525mm; |
OEM No.: | TT95; | Material: | STEEL; |
Brand Name: | SWT; | Max Payload: | 2000 KGS; |
GVW: | 2000KGS; | Supply Ability: | 600 Set/Sets per Month; |

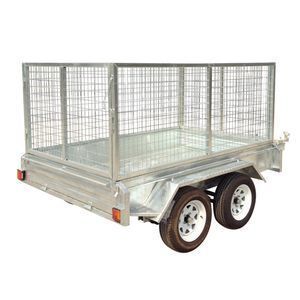

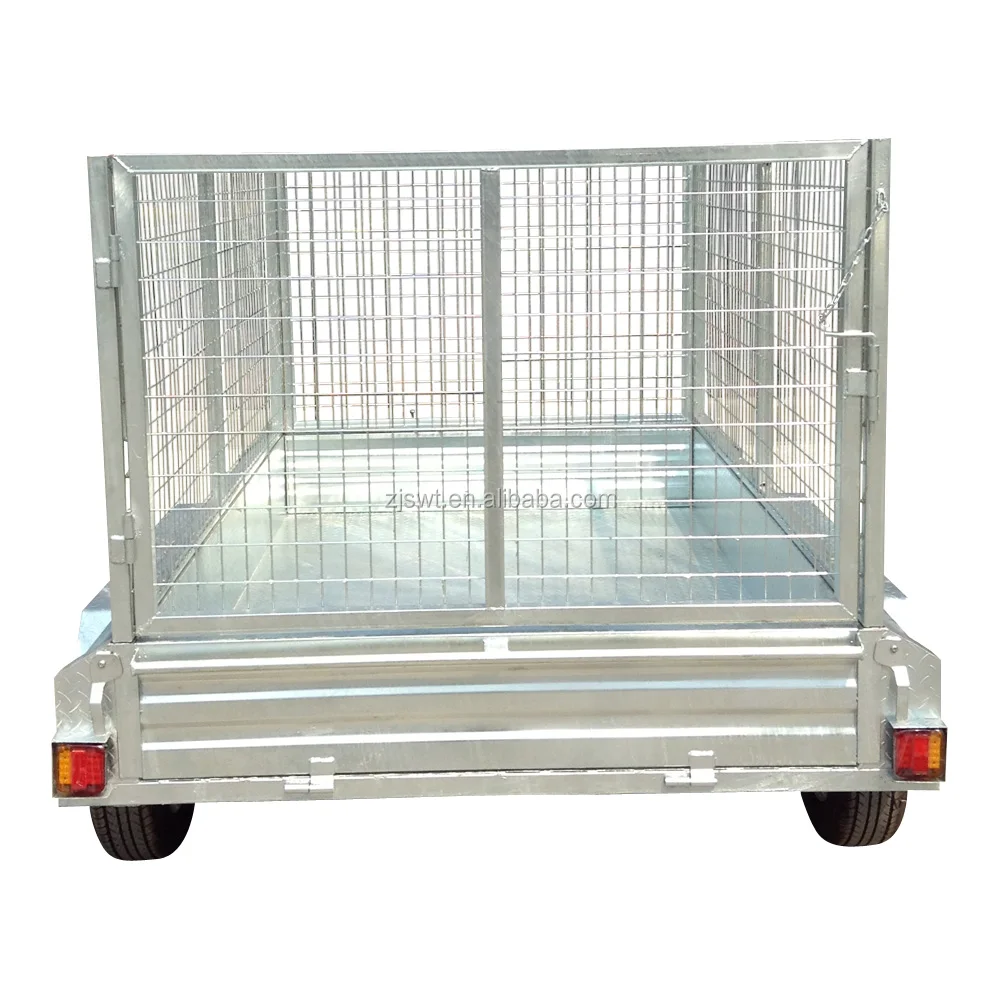

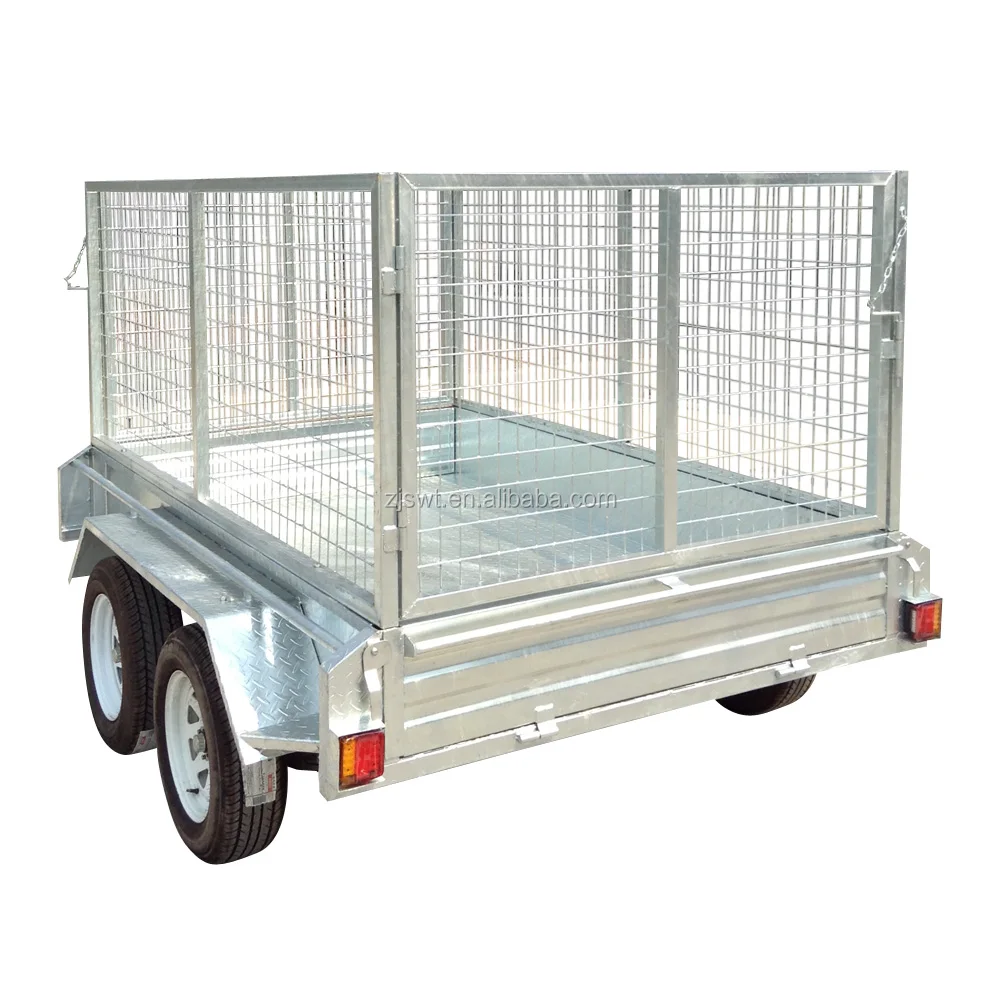

Cargo trailer galvanized utility trailer with checker plate floor
Different Sizes For Heavy Duty Fully Welded Tandem Box Trailer | |||||||
SIZE | MODEL NO | OVERALL SIZE | INNER BOX SIZE | SPRING | WHEEL | SURFACE TREATMENT | GVW |
8x5Ft | SWT-TT85 | 4150x2025x800mm | 2440x1525mm | 6leafs | 185/70R14 | Hot Dipped Gal | 2000KGS |
9x5Ft | SWT-TT95 | 4410x2025x800mm | 2700x1525mm | 6leafs | 185/70R14 | Hot Dipped Gal | 2000KGS |
10x5Ft | SWT-TT105 | 4760x2025x800mm | 3050x1525mm | 6leafs | 185/70R14 | Hot Dipped Gal | 2000KGS |
Description For Heavy Duty Fully Welded Tandem Box Trailer | |
Drawbar | 100x50 RHS. 1600mm long with 10mm safety chain (Chain with AS4177 stamp) |
Chassis | 50X50 RHS (Not angle) |
Floor & Sides | Checker plate (Not cheap Ribbed zinc plate) |
Axle | 40mm Solid Square axle |
Spring | 6leafs rocker roller suspension (not 4leafs or 5leafs cheap and light spring) |
Wheel | 185/70R14 wheel with 14inch white paint rim |
Jockey wheel | 6inch top wind heavy duty jockey wheel. with E-mark and DOT certificate |
Coupling | 50mm AU standard coupling, 1 7/8 NZ standard coupling, EU standard coupling |
Lights | Led Lights with 7pin plug and 7 core wiring. light with E-mark and DOT certificate |
Surface Treatment | Hot dipped galvanized |
