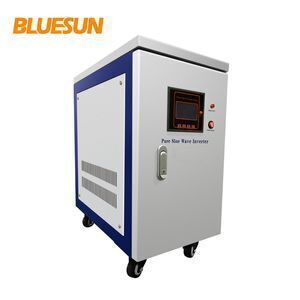

Off Grid dc to ac inverter 3 phase 10kw 20kw 30kw 40kw 50kw 60kw 70kw 80kw 90kw 100kw solar inverter

Supplier: Bluesun Solar Co., Ltd.
Region: Anhui, China
Contact: Ms Bonnie Bluesun Solar
Price: $599.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	3 Years;	Input Voltage:	24/48/96/120/192/240V DC;
Model Number:	TLS-_VA;	Self-Consumption:	<1W;
Output Current:	2-125A;	Noise Emission:	<50dB(A);
Supply Ability:	10000 Set/Sets per Week;	Port:	Shanghai or Ningbo;
Output Type:	TRIPLE;	Brand Name:	BLUESUN;
Place of Origin:	Guangdong China;	Certificate:	ISO 9001/CE/IEC/TUV;
Weight:	100KG;	Output Frequency:	50Hz/60Hz;
Output Voltage:	230/400V AC or 277/480V AC;	Output Frequency:	50Hz/60Hz;
Output Current:	2-125A;	Type:	DC/AC Inverters;
Packaging Detail:	in carton and pallet,standard international package;	Application:	Solar Power System Home;
Inverter type:	Off-grid Inverter;	Protection Level:	IP65;
Size:	470754270mm;	Cooling Concepet:	Smart Cooling;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal Escrow Alibaba Trade Assurance;

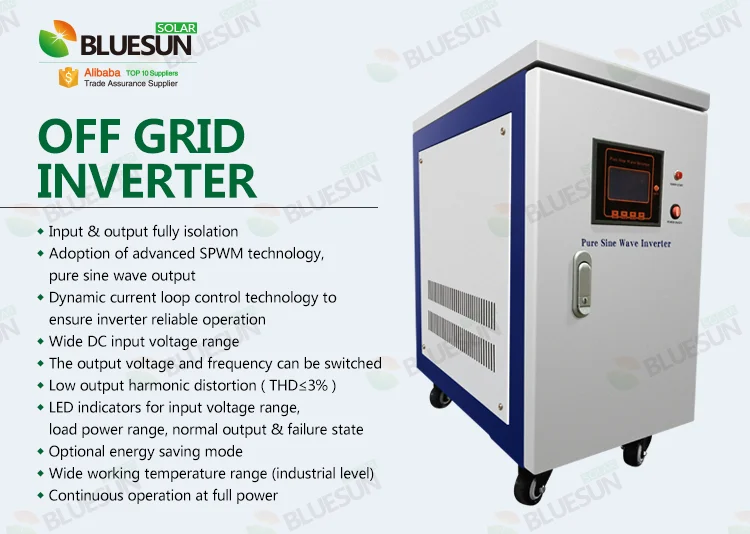

Off Grid Inverter

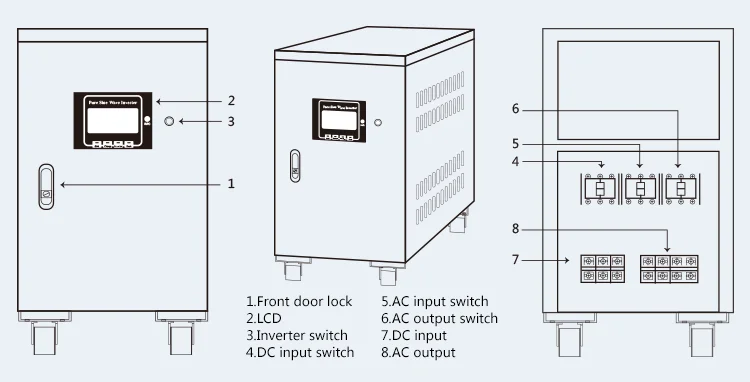

Equipments&Details

Model TLS-_VA	1000	2000	3000	4000	5000	7000	8000	10000
Rating Power(KW)	1	2	3	4	5	7	8	10
Input Voltage(V/DC)	24/48	24/48	48/96	48/96	48/96	192	192	192
To discharge current(A)	42/20	83/42	63/32	73/41	52/26	36	42	52
Output Voltage(V)	100/110/120/220/230/240(±5%)
Frequency(Hz)	50/60Hz±0.5%
Charge current(A)	5A
Peak overload ability	150%,5s
THD	≤3%
Waveform	Pure sine wave
Noise	≤55dB
Inverter efficiency	≥95%
Protection	Overload,over voltage,over temperature,short circuit protection,normal voltage over-voltage auto-recovery
Environment temperature	-10℃ - +60℃
Humidity	≤90%RH
Altitude	≤4000m
Dimension(HWL)(mm)	410180300		480350630			475400810
Weight(KG)	30	40.5	46	51	57	90	95	101

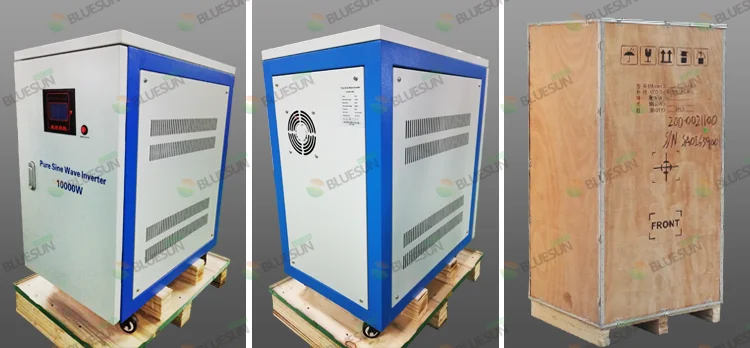

Packing & Delivery

By sea	Delivery from Shanghai or Ningbo seaport
By air	Departure from Shanghai Pudong Airport
By express	By TNT/DHL

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	West Union
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

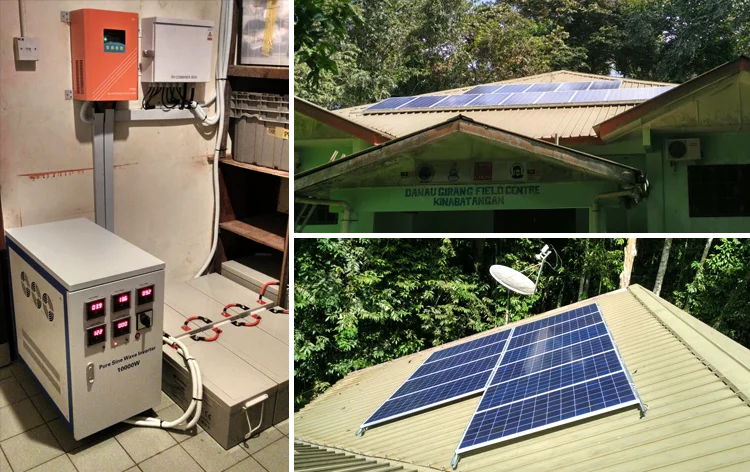

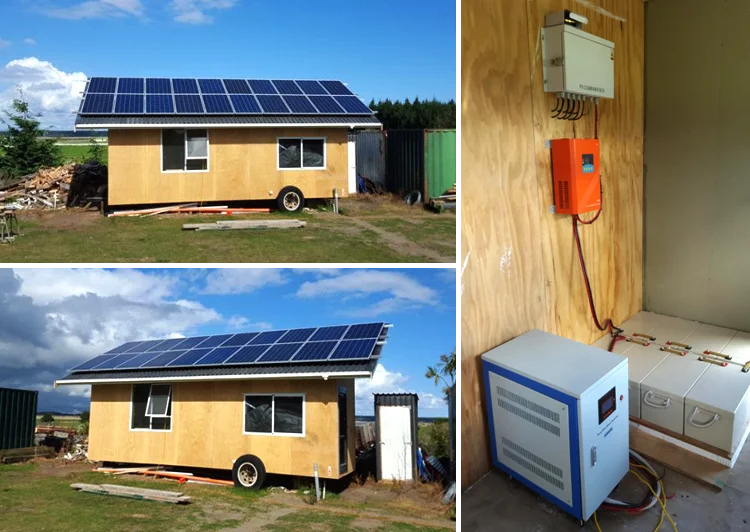

Project
