DIN 3017 Stainless Steel American Worm Drive Hose Clamp

Supplier: Wenzhou Meters Int'l Trade Co., Ltd.
Region: Zhejiang, China
Contact: Mr Steve Ye
Price: $0.09 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Application:	Automotive Industry,Food & Beverage,General Industry,Healthcare,Heavy Industry,Mining,Oil & Gas,Retail Industry,Water Treatment;	Port:	Shanghai or other port;
Supply Ability:	1 Forty-Foot Container per Month;	Packaging Detail:	Normally 10 pcs per bag and 100/200/500/1000 per carton, according to different size;
Delivery Detail:	10-30 days according to the order quantity;	Bolts clamp type:	American worm type Clamp;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

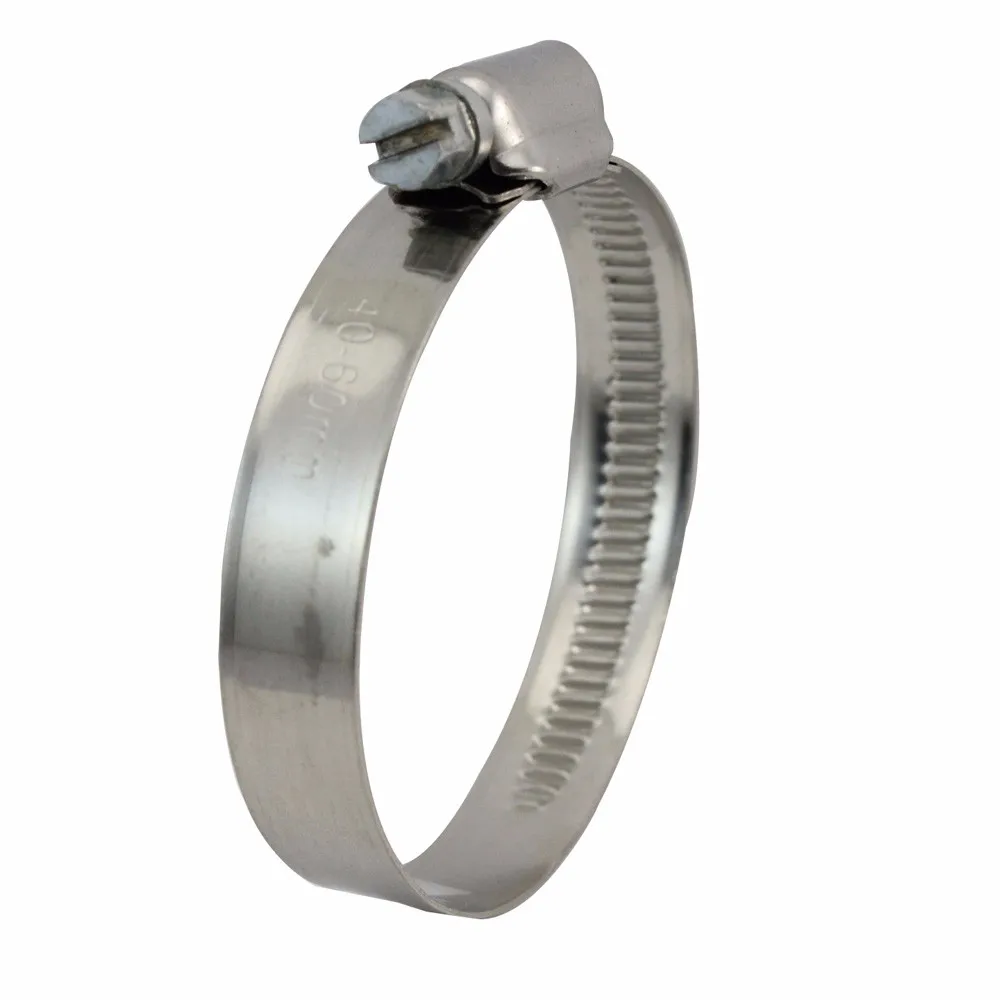

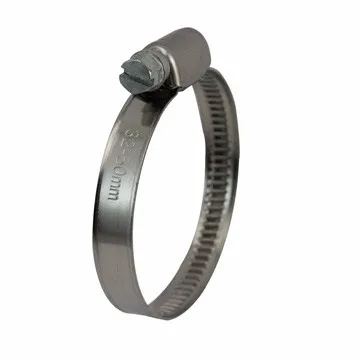

German hose clamp

German type 9mm

German type 12mm

German type hose clamp with 9mm band
Band width: 9mm Wrench 7mm
Material:
W1: Band, housing and screw all zinc-plated
W2: Band, housing with all stainless steel and zinc-plated screw
W4: Band, housing and screw all stainless steel
W5: Band, housing and screw all stainless steel 316

Item. No. Item. No. SAE Size SIZE(mm) Band width Quantity per carton Dimension (cm)

Stainelss steel Zinc plated

9MT012SS 9MT012ZP 6 8-12 9mm 1,000 32*27*14

9MT016SS 9MT016ZP 8 10-16 9mm 1,000 32*27*14

9MT020SS 9MT020ZP 8 12-20 9mm 1,000 38*27*14

9MT025SS 9MT025ZP 10 16-25 9mm 1,000 38*27*17

9MT032SS 9MT032ZP 12 20-32 9mm 1,000 38*27*21

9MT040SS 9MT040ZP 24 25-40 9mm 1,000 38*27*29

9MT050SS 9MT050ZP 28 32-50 9mm 500 38*27*21

9MT060SS 9MT060ZP 36 40-60 9mm 500 38*27-29

9MT070SS 9MT070ZP 40 50-70 9mm 500 38*27*34

9MT080SS 9MT080ZP 48 60-80 9mm 500 41*32*32

9MT090SS 9MT090ZP 52 70-90 9mm 500 40*37*30

9MT100SS 9MT100ZP 60 80-100 9mm 250 38*27*24

9MT110SS 9MT110ZP 64 90-110 9mm 250 38*27*29

9MT120SS 9MT120ZP 72 100-120 9mm 250 38*27*29

9MT130SS 9MT130ZP 80 110-130 9mm 250 38*27*34

9MT140SS 9MT140ZP 84 120-140 9mm 250 41*32*32

9MT150SS 9MT150ZP 88 130-150 9mm 250 40*37*30

9MT160SS 9MT160ZP 96 140-160 9mm 250 40*37*30

FREE TORQUE BREAKING TORQUE

9mm/W1 ≤1 Nm ≥3.5Nm

9MM/W2 9MM/W2 ≤1 Nm ≥5Nm

9MM/W4 9MM/W4 ≤1 Nm ≥5Nm

9MM/W5 9MM/W5 ≤1 Nm ≥5Nm

German type hose clamp12mm

German type hose clamp with 12mm Band

Band width: 12mm Wrench 7mm

Material:

W1: Band, housing and screw all zinc-plated

W2: Band, housing with all StTainless Steel and zinc-plated screw

W4: Band, housing and screw all Stainless STeel

W5: Band, housing and screw all Stainless Steel 316

Item. No. Item. No. Size (mm) SAE Size Band width Quantity per carton Carton dimension (cm)

Stainless Steel Zinc plated

12MT025SS 12MT025ZP 16-25 10 12mm 1,000 38*27*19

12MT032SS 12MT032ZP 20-32 12 12mm 500 38*27*17

12MT040SS 12MT040ZP 25-40 24 12mm 500 38*27*21

12MT050SS 12MT050ZP 32-50 28 12mm 500 38*27*29

12MT060SS 12MT060ZP 40-60 36 12mm 500 41*32*32

12MT070SS 12MT070ZP 50-70 40 12mm 500 41*32*32

12MT080SS 12MT080ZP 60-80 48 12mm 250 38*27*24

12MT090SS 12MT090ZP 70-90 52 12mm 250 38*27*29

12MT100SS 12MT100ZP 80-100 60 12mm 250 38*27*34

12MT110SS 12MT110ZP 90-110 64 12mm 250 41*32*32

12MT120SS 12MT120ZP 100-120 72 12mm 250 41*32*32

12MT130SS 12MT130ZP 110-130 80 12mm 250 40*3730

12MT140SS 12MT140ZP 120-140 84 12mm 200 41*32*32

12MT150SS 12MT150ZP 130-150 88 12mm 200 41*37*35

12MT160SS 12MT160ZP 140-160 96 12mm 100 41*37*35

12MT170SS 12MT170ZP 150-170 / 12mm 100 38*27*34

12MT180SS 12MT180ZP 160-180 / 12mm 100 41*32*32

12MT190SS 12MT190ZP 170-190 / 12mm 100 40*37*30

12MT200SS 12MT200ZP 180-200 / 12mm 50 38*27*21

FREE TORQUE

12mm/W1 ≤1 Nm

12mm/W2 ≤1 Nm

12mm/W4 ≤1 Nm

12mm/W5 ≤1 Nm

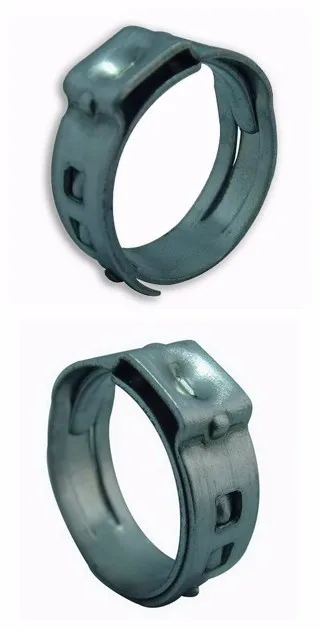

Single ear clamp

Single Ear Clamps

Single ear hose clamp

Material: ALL STAINLESS STEEL 304

Item no. SIZE(mm) BAND WIDTH BAND THICKNESS

MT506001 8.7 5 0.5

MT506002 9.5 5 0.5

MT506003 10.5 5 0.5

MT706004 11.3 7 0.6

MT706005 11.9 7 0.6

MT706006 12.3 7 0.6

MT706007 12.8 7 0.6

MT706008 13.9 7 0.6

MT706009 13.6 7 0.6

MT706010 14 7 0.6

MT706011 14.5 7 0.6

MT706012 16.2 7 0.6

MT706013 17 7 0.6

MT706014 17.5 7 0.6

MT706015 18.5 7 0.6

MT706016 19.8 7 0.6

MT706017 21 7 0.6

MT706018 24.1 7 0.6

MT706019 25.6 7 0.6

MT706020 32.1 7 0.6

MT706021 54 7 0.6

Product Description

Product Description

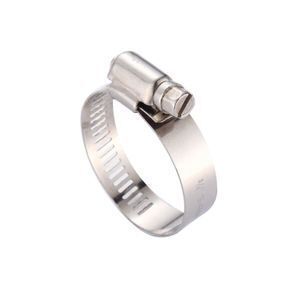

American type hose clamp-12.7 mm Band (1/2")
Material Option:
W1: Band, housing and screw all zinc-plated
W2: Band, housing with all stainless steel and zinc-plated screw
W4: Band, housing and screw all stainless steel
W5: Band, housing and screw all stainless steel 316
Part No. Part No. SAE Size (mm) Size (inch)
Stainless steel Zinc Plated
127MT020SS 127MT020ZP 6 11-20mm 7/16"-25/32"

127MT023SS 127MT023ZP 8 11-23mm 7/16"-29/32"

127MT027SS 127MT027ZP 10 14-27mm 9/16"-1-1/16"

127MT032SS 127MT032ZP 12 18-32mm 11/16"-1-1/4"

127MT038SS 127MT038ZP 16 19-38mm 3/4"-1-1/2"

127MT044SS 127MT044ZP 20 21-44mm 13/16"-1-3/4"

127MT051SS 127MT051ZP 24 27-51mm 1-1/16"-2"

127MT057SS 127MT057ZP 28 33-57mmm 1-5/16"-2-1/4"

127MT064SS 127MT064ZP 32 40-64mm 1-9/16"-2-1/2"

127MT070SS 127MT070ZP 36 46-70mm 1-13/16"-2-3/4"

127MT076SS 127MT076ZP 40 52-76mm 2-1/16"-3"

127MT083SS 127MT083ZP 44 58-83mm 2-5/16"-3-1/4"

127MT089SS 127MT089ZP 48 65-89mm 2-9/16"-3-1/2"

127MT095SS 127MT095ZP 52 71-95mm 2-13/16"-3-3/4"

127MT102SS 127MT102ZP 56 78-102mm 3-1/16"-4"

127MT108SS 127MT108ZP 60 84-108mm 3-5/16"-4-1/4"

127MT114SS 127MT114ZP 64 90-114mm 3-9/16"-4-1/2"

127MT127SS 127MT127ZP 72 103-127mm 4-1/16"-5"

127MT140SS 127MT140ZP 80 116-140mm 4-9/16"-5-1/2"

127MT152SS 127MT152ZP 88 129-152mm 5-1/16"-6"

127MT165SS 127MT165ZP 96 141-165mm 5-9/16"-6-1/2"

127MT178SS 127MT178ZP 104 154-178mm 6-1/16"-7"

127MT197SS 127MT197ZP 116 165-197mm 6-1/2"-7-3/4"

127MT216SS 127MT216ZP 128 144-216mm 5-11/16"-8-1/2"

127MT235SS 127MT235ZP 140 163-235mm 6-7/16"-9-1/4"

127MT254SS 127MT254ZP 152 182-254mm 7-3/16"-10"

127MT273SS 127MT273ZP 164 201-273mm 7-15/16"-10-3/4"

127MT292SS 127MT292ZP 176 225-292mm 8-11/16"-11-1/2"

127MT311SS 127MT311ZP 188 239-31mm 9-7/16"-12-1/4"

127MT330SS 127MT330ZP 200 259-330mm 10-3/16"-13"

127MT349SS 127MT349ZP 212 277-349mm 10-15/16"-13-3/4"

127MT368SS 127MT368ZP 224 296-368mm 11-11/16"-14-1/2"

127MT387SS 127MT387ZP 236 315-387mm 12-7/16"-15-1/4"

127MT406SS 127MT406ZP 248 335-406mm 13-3/16"-16"
