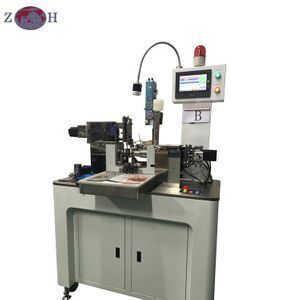

Chinese CNC Hot Air Bonding Wireless Charging Coil Winding Machine

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	900 x 530 x 1450mm;	Winding spindle setting range:	0 - 999999C359 degree;
Power(W):	1500W;	Lead position:	arbitrary;
After-sales Service Provided:	Engineers available to service machinery overseas;	Port:	Shenzhen;
Packaging Detail:	CNC wireless charging coil winding machine will be packed with sea worthy wooden case.;	Winding set resolution ratio:	0.1 degree;
Voltage:	210~230V;	Brand Name:	ZHENHUAN;
Weight:	250kg;	Winding stop precision:	0 degree;
Warranty:	1 Year;	Hot air heating power:	1600W;
Winding direction:	clockwise / anti-clockwise;	Spindle speed:	0-3000rpm;
Supply Ability:	10 Set/Sets per Month;	Production speed:	2 pcs per minute;
Certification:	ISO;	Self-bonded wire section:	1- 8 mm2;
Condition:	New;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Fly spindle speed:	0-3000rpm;	Place of Origin:	Guangdong China;
Applicable Industries:	Home Use;

CNC FULL AUTOMATIC WIRELESS CHARGING COIL WINDING MACHINE

Description of KXJ-064 CNC wireless charging coil winding machine:

This machine is specially designed for winding wireless charging coils full automatically, suitable for strand wires and silk-covered wires.

Main features of KXJ-064 CNC wireless charging coil winding machine:

- Hot air bonding

- Full automatic 4-axis servo motor control

- Wire feeding device adopts SMC rodless cylinder plus HIWIN linear guide

- World famous brand PLC control system

- Full seal protection enclosure, clean and good safety |CNC wireless charging coil winding machine| CNC wireless charging coil winding machine| CNC wireless charging coil winding machine|

Wireless charging coils made by CNC wireless charging coil winding machine:

|CNC wireless charging coil winding machine| CNC wireless charging coil winding machine|

Main technical data of KXJ-064 CNC wireless charging coil winding machine:

No.	Item	KXJ-064
1	Number of spindles	4
2	Winding wire section range	1-8mm2
3	Suitable wireless charging coils	Both transmitting and receiving coils
4	Bonding method	Hot air blowing
5	Finishing lead position	Arbitrary
6	Flying spindle speed	0-3000 rpm
7	Winding spindle speed	0-3000rpm
8	Max. production speed	2 pcs/min
9	Winding direction	Clockwise / anti-clockwise
10	Winding spindle motor (X-axis)	AC 400W, servo
11	Flying spindle motor (Y-axis)	AC 400W, servo
12	Finishing lead motor (Z-axis)	AC 400W, servo
13	Tail stock motor (A-axis)	AC 400W, servo
14	X-axis setting range	0 - ±999999C359º
15	Y-axis setting range	0 - ±999999C359º
16	Winding spindle stop precision	0º
17	Winding set resolution ratio	0.1º
18	Beginning lead length	Min. 10mm, max. 30mm
19	Finishing lead length	Min. 10mm, max. 50mm
20	Hot air heating element power	AC 1600W
21	Electric power supply	Single phase 210~230V, 50Hz
22	Compressed air pressure	0.5~0.7MPa
23	Machine dimension	900 x 530 x 1450mm
24	Machine weight	250kg

We will attend Canton Fair two times each year and also attend overseas specialized exhibition

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in various kind of machines for more than 14 years. We are BV, TUV and SGS certified with good reputation and feedbacks from worldwide customers. We can provide you good quality CNC wireless charging coil winding machines as well as many other CNC air coil winding machines with professional after-sale services.
