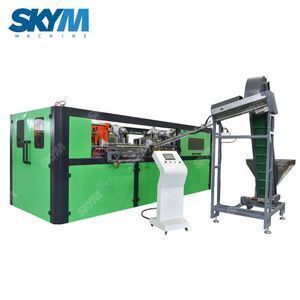

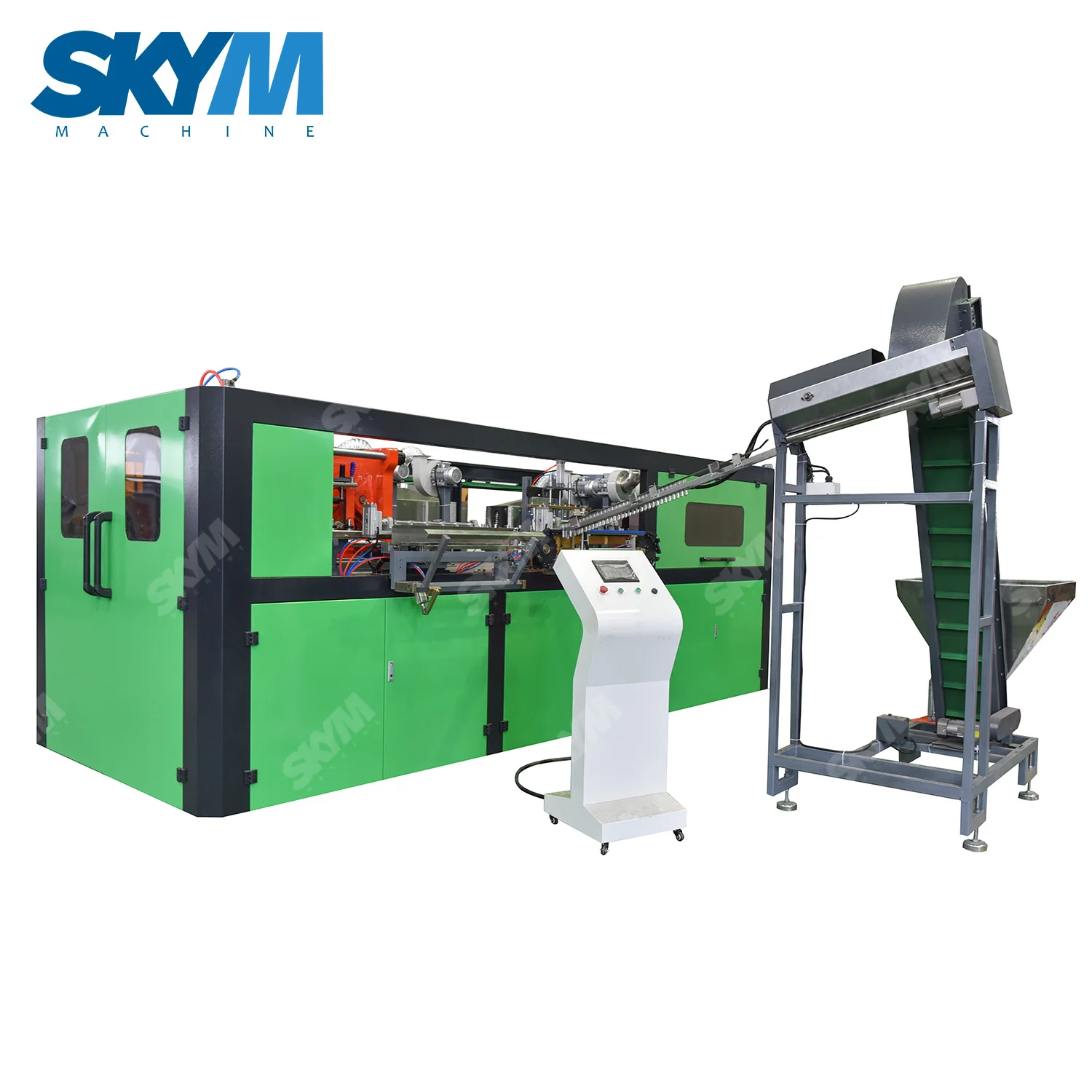

Hot Sale Automatic PET Water Bottle Making Machine

Product details
Key words:bottle blowing machine;Material applicable:HDPE/LDPE/PP/PS;
Clamping Unit:65000kg;Payment Terms:L/C,T/T,Western Union;
Place of Origin:Jiangsu China;After-sales Service Provided:Engineers available to service machinery overseas;
Plastic Processed:PET;Number of Cavity:6;
Port:SHANGHAI;Warranty:1 year;
Material of Screw:Stainless Steel;Certification:CE,ISO,SGS;
Brand Name:Sky Machine;Application:Bottle;
Supply Ability:15 Set/Sets per Month;Usage:Making drinking bottle;
Condition:New;Year:2019;
Weight:6500kg;Color:Customize;
Automation:Automatic;After-sales Service Provided:Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Packaging Detail:wooden cases packing;Key Selling Points:Automatic;
Blow Moulding Type:Injection Blow Moulding;Power(W):49kw;
Voltage:380v;Bottle Size:500ml-2000ml;
Applicable Industries:Food & Beverage Factory,Food Shop,Food & Beverage Shops;Output:6000BPH;
Dimension(L*W*H):5.6m*2.2m*1.8m;

 Hot Sale Automatic PET Water Bottle Making Machine

Machine Model List

Model  Bottle VolumeBottle Diameter Theoretical OutputCavityDimension(L*W*H)WeightPower
SKY-   20000.05-2L20mm-100mm2000pcs/h2Cav190*128*192cm2000kg25kw
SKY-30000.05-1.5L20mm-100mm3000pcs/h3Cav175*125*205cm1600kg18kw
SKY-40000.05-2L20mm-100mm4000pcs/h4Cav190*185*192cm3600kg49kw
SKY-60000.05-2L≤90mm6000pcs/h6Cav500*280*220cm4800kg53kw
SKY-80000.05-2L≤90mm8000pcs/h8Cav550*400*220cm5800kg66kw

Product Description

Hot Sale Automatic PET Water Bottle Making Machine  is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.Other product name:blow molding machine,plastic blow molding machine,bottle making machine.

1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto maode.
6,Wide-mouth jar and hot-fill bottles can also be made.

Features

A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustVability to enable the pre-heater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

H. Strong clamping force with high pressure and double crank links to lock the mold.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

L. Contamination is avoided for the bottle body.

M. Ideal effect of the chilling with the chilling system.

N. Easy installation and starting

O. Low rejection rate: less than 0.3percent.



Company Information

 Company Information

Zhangjiagang Sky Machine Co.,Ltd is one of the world's leading beverage machinery manufactures.With over ten years of manufacturing experience,we can offer Bottled Water Production line,Juice production line,Barreled Water production,Beverage Filling Machines,Water Treatment Equipment,Fruit Juice Beverage Auxiliary   Equipment, Carbonated Beverage Auxiliary Equipment,Latter Packaging Equipment,and Bottle Blowing Machines.Our vast line of beverage machinery is available for countless users to meet all your customers' needs.

Our Certification:

Our Services

Our Services

1.Installation, debug

After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.

2.Training

Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3.Quality guarantee

We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

4.After sales

1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.

FAQ

FAQ

Q1:What's your guarantee or the warranty of the quality if we buy your machines?
A1:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
      Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich                    experience.

Q2:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing
and teaching your technicians how to run the machines.

Q4:What's the delivery time?
A4:30-45 days after the T/T deposit or L/C.

Q5:What's min order quantity?
A5:1 unit
