After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; | Environmental certificate: | ISO14001:2015; |
advantage: | High-efficiency,environmental-protection; | Supply Ability: | 30 Set/Sets per Month; |
Product name: | sprayer coating equipment; | Port: | Guangzhou Huangpu Port or Shenzhen; |
Brand Name: | chuangzhi; | Packaging Detail: | sprayer coating equipment packaging method: according to the customs regulations of the country and region where the customer is located.; |
package: | According to customer request Package; | energy: | Natural gas, power; |
Local Service Location: | None; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Showroom Location: | Viet Nam,Philippines,Thailand; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,sprayer coating equipment; |
output: | Debug according to customer requirements; | Equipment type: | Green environmental protection equipment; |
Place of Origin: | Guangdong China; | Applicable Industries: | Manufacturing Plant,Cookware and electrical factory; |
Purify Efficiency: | 95%; | Control System: | PLC+Touch Screen Automatic; |
Warranty: | 1 year; | size: | Depending on customer needs; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Condition: | New; |
Cookware automatic spraying production line
item | Pan, pressure cooker, soup pot |
material | Iron parts, aluminum parts, composite material |
standard workpiece | 240*150mm |
pitch of conveyor belt | 450mm |
conveyor belt speed | 2500mm/min |
energy | Power/natural gas |
hanging quantity of conveyor belt | 4pcs/hang |
workpiece transferring method | Adjustable |
quality management system | ISO9001:2015 |
environmental protection management system | ISO14001:2015 |
Note: above data for reference only, the actual data will be calculated according to customer required.
Why did you choose us?
1.We are customized design based on the whole powder coating.system and electrostatic powder coating unit.
2.Our engineer available to oversea to install the project.
3.Offer a free training for equipment operation .
4.Payment with FOB or CNF or CIF.
5.Warmly welcome to visit anytime.
6.Any new idea for your product, workshop and related drawing please sharing with us. We will offer a customized project service to you.
our cookware spraying system apply with widely non-stick pan, pan , kettle, iron plate, rice cooker manufacturing industry.

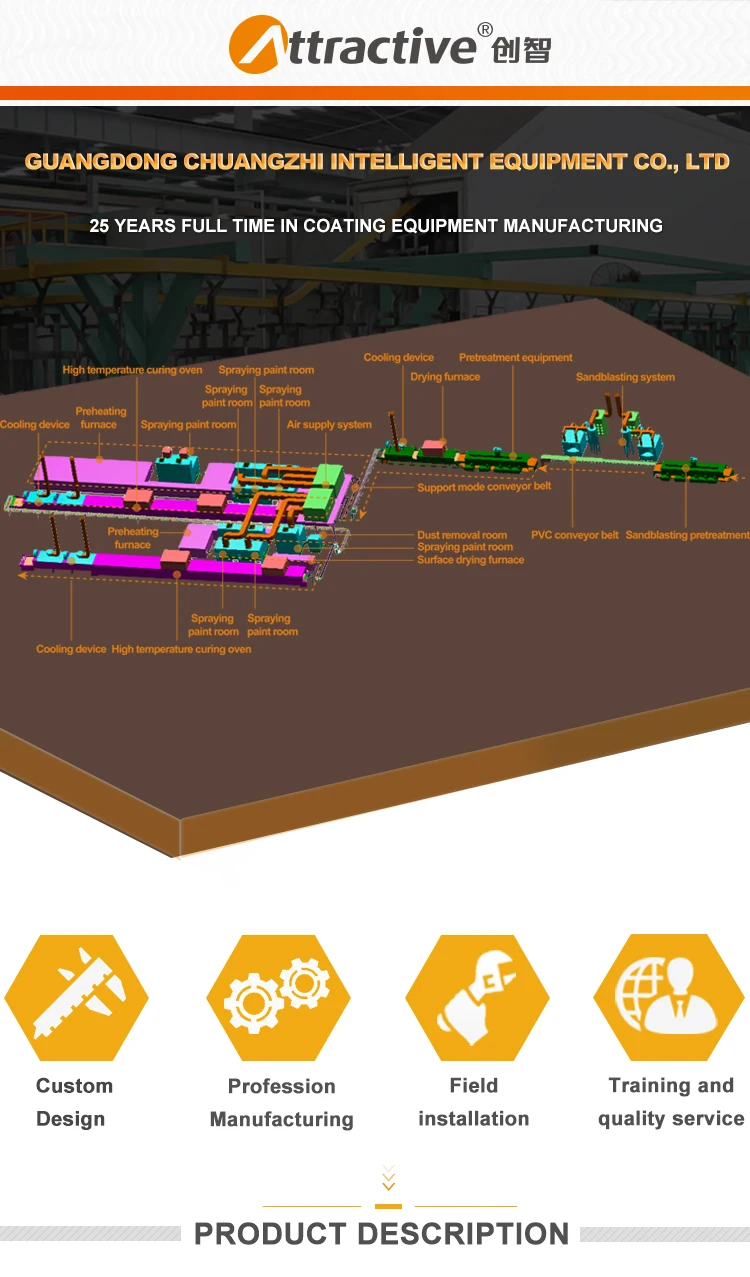

Coating system components

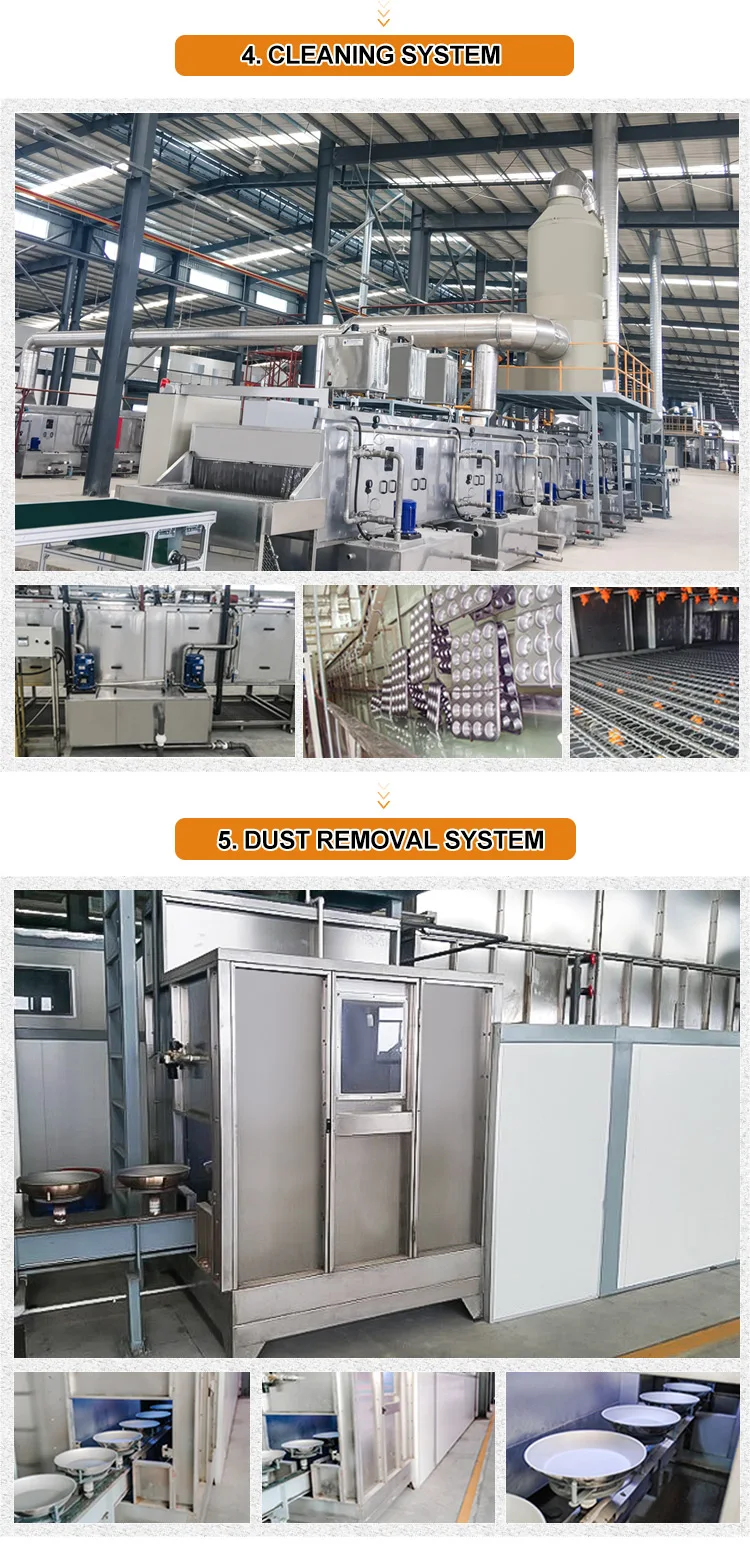

A. Spray pretreatment system
The general pretreatment process is as follows: degreasing → washing → pickling and rust removal → washing → surface treatment → oxidation → water washing → passivation → water washing → drying
Uses: Remove oil, dust, rust on the surface of the workpiece, and produce a layer of corrosion resistance, increasing the adhesion of the coating.
B. Powder spraying system
Uses: Spray powder coating evenly on the surface of the workpiece. Special workpieces (including locations that are prone to static electricity shielding) should be sprayed with high-performance electrostatic spraying machine.
Painting process steps: using the principle of electrostatic adsorption, evenly spraying a layer of powder coating on the surface of the workpiece; the powder is returned through the recycling system, and can be used after screening.

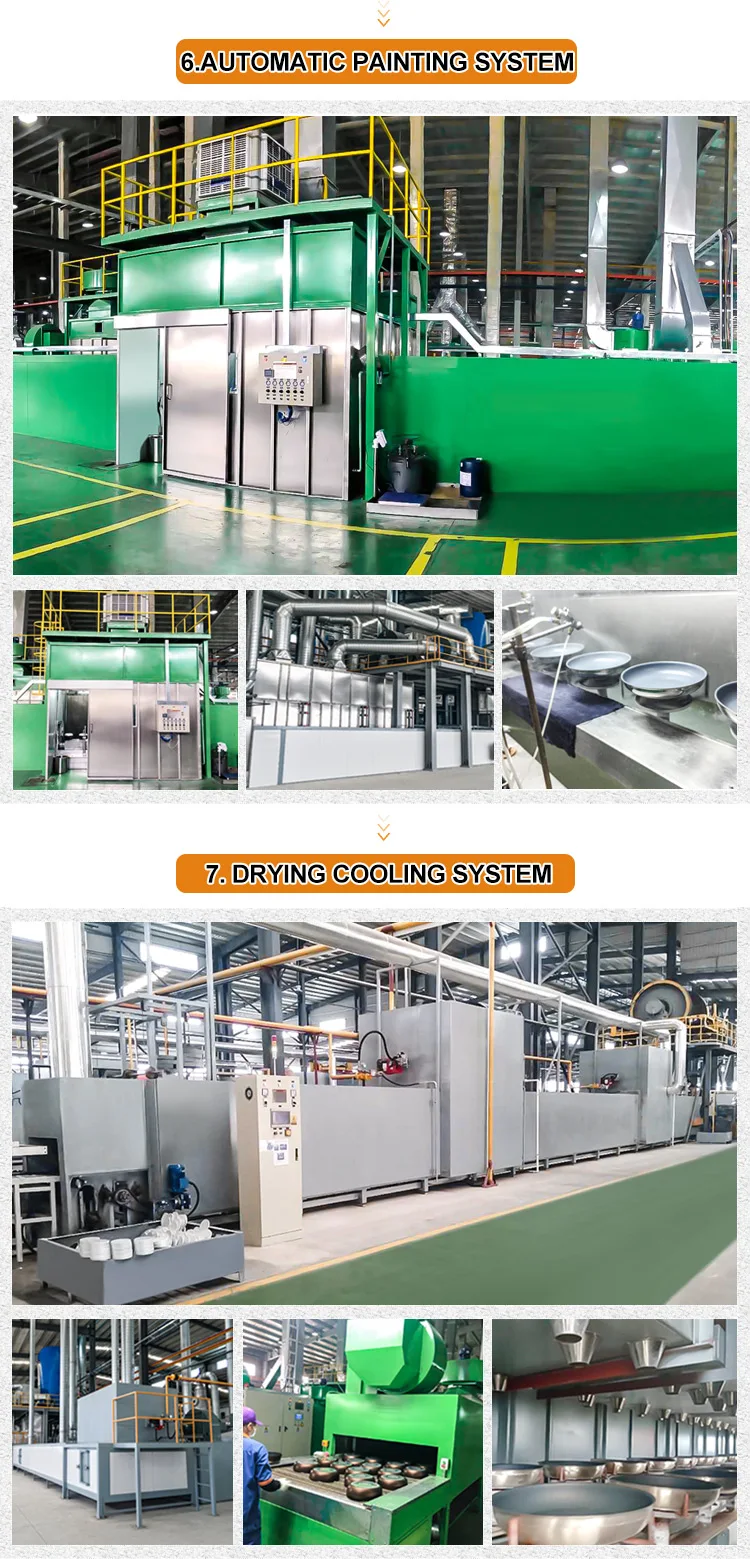

C. Painting system
Uses: The paint spraying produced by Chuangzhi Technology adopts the oil spray spray booth and the water curtain spray booth, which are widely used in the surface coating of bicycles, automobile leaf springs and large loaders.
D. High temperature curing
Use: Heat the powder coating on the surface of the workpiece to the specified temperature and corresponding time to melt, level and solidify, so we want the surface effect of the workpiece.
E. Heat source system
Uses: According to the local conditions of customers, it can provide natural gas / liquefied petroleum gas / diesel / electricity / coal / pellet biofuels, etc., can make the temperature fast and high efficiency, and with proportional adjustment, frequency conversion to make the curing oven temperature uniform, improve product quality .
F. Electronic control system
Uses: The controller is distributed and installed near the equipment for easy maintenance and maintenance. The controller equipment can display the lift and run stability.

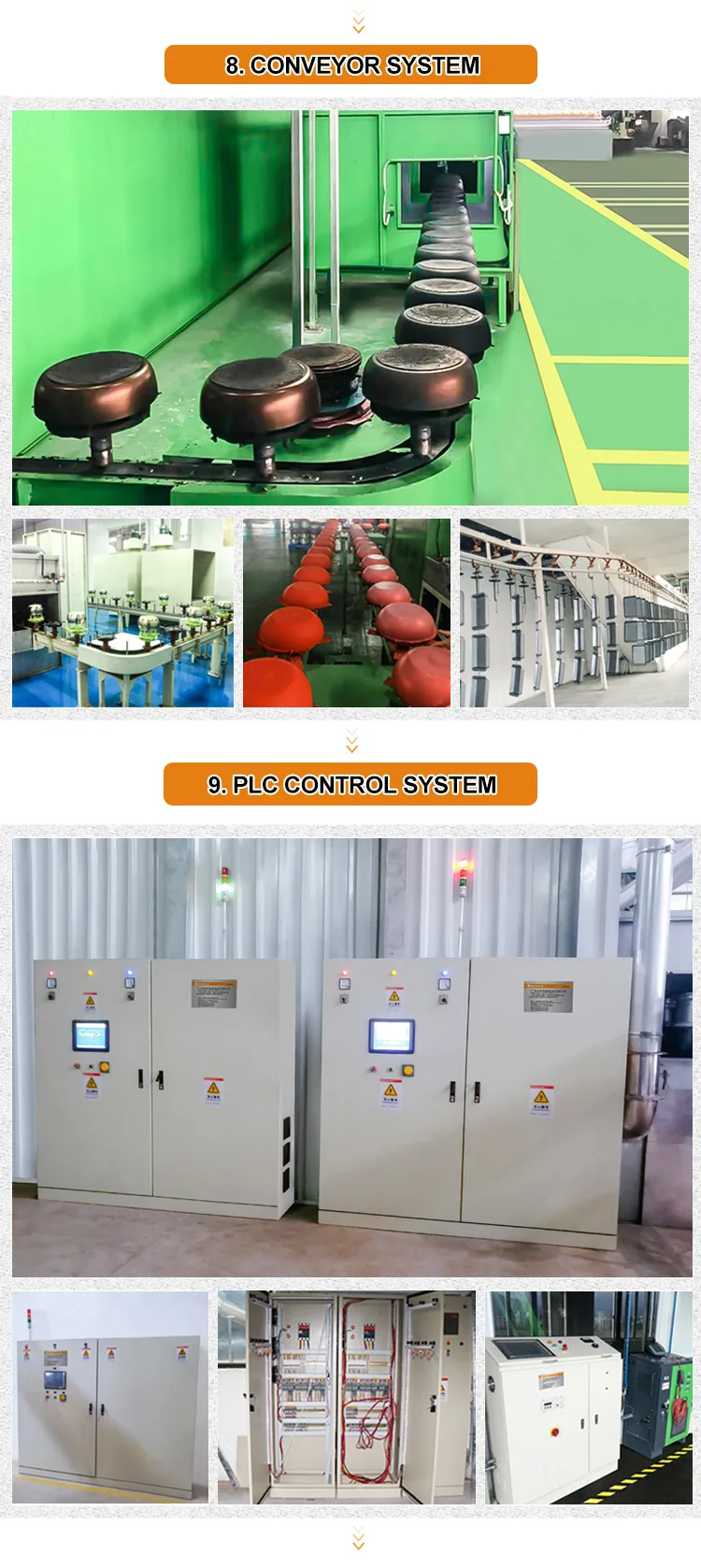

G. Conveying system
According to the customer's workpiece and output information, according to the different requirements of customers, various designs, including plate conveyors, chain conveyors, overhead conveyors, etc.
Guangdong Chuangzhi intelligent equipment co.,ltd is a intelligent production service provider with research & development , design ,manufacturing , install , commission and after service. Its own 25year experience in non-standard painting line solution supplier as well as provide various of coating and environmental protection equipment etc.
Our head quarter based in Zhaoqing, China ,with a 15556 Square meter floor space, matched with a series of modern production facilities such as robot spraying test center, research & development center, large size laser cutting machine, laser, bender and automatic CNC machines etc .
Nowadays we have a widely recognized in auto parts, furniture industry, musical and non-stick cookware , metal industries and environmental protection equipment zone. We had provided a various of non-standard painting line solution to famous enterprises such as Honda,BYD, Wuzhou dragon,Pearl River Piano, Red Cotton guitar, Midea AND Supor etc.
At the moment, Chuangzhi with a more than 280 employers teamwork including senior research & development engineer, designer , robot and machinery designer, electrician and welder etc.
1.We have a professional construction team to guarantee project finished on time and provide a responsible maintenance service.
2.Free training service.
3.Regular return visit. Fully tracking service for equipment to guarantee equipment operated safety.
4.Remote control to trouble shooting and fast repair .
All the time Chuangzhi with a strong research ability and rich experience to attain a series honor such as utility models patent with 23 items, invention patent with 29 items, appearance patent with 2 items and computer software patent with 3 items. Also Chuangzhi connect with international standard, have attained the identification for ISO9001:2015 international quality management system and environmental management system.
Above display our package and shipment. Due to we are a provider for whole painting system which including a series of huge equipment and product, so we need to transport by truck, loading at port ,shipment by sea.
Q1 how to purchase?
A1 Please describe the workpiece details to us, like dimension and the
painting required etc, we will make out a appropriate painting system and equipment installation proposal to comply with your required.
Q2 supporting service
A2 We will offer the whole plant design proposal freely before place order. We are welcome customer visiting the coating line onsite anytime. We will prepare the detailed technology proposal after get approval between customer and manufacturer. Further we will share information about paint and dedust etc to you.
Q3 quotation
A3 The price showing on website is not the real because vary item with different price. The final quotation based on two side (customer and manufacturer) confirmed the technology project afterwards.
Q4 payment term
A4 The stock & small and middle-sized machine & large equipment & whole coating system deposit by 40%, the qualified machine before shipping should pay 50% , after installation and training should settle up balance.Actually the payment term can be negotiated according to different situation.
Q5 production cycle
A5 We are a professional manufacturer of providing the non-standard coating system. Ensure providing a qualified product and service, we are setting the production cycle is 60 working days. The actually lead time depends on the recent actually production planning.
Q6 package
A6 The default packing for domestic and overseas shipment is with a white color protective film. The export shipment packing would be customized fumigation-free wooden pallet or wooden box.
Q7 express & shipping
A7 Customer can use their own logistic. Otherwise, we will use our long-term cooperation logistic to conduct transport including loading and unloading.The export shipment normally by sea.
Q8 installation and training
A8 Customer can arrange staff come to our company receive training if possible. Once the complete coating line start building, we will assign related technician come to onsite to proceed with until trial production completed. Also , we are pleasure to share information of maintain and technologic if necessary.
Q9 after-sales service
A9 The main parts of coating system warranty 1 year.Other parts damaged by people or consumable spare parts out of warranty.We are offering full life maintain service and 24 hours online service. The overseas project install charge or occurring related fee should be bear by customer.
