mattress tape edge sewing machine mattress quilting machine

Supplier: Foshan City Chili Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr George Bin
Price: $12000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Power supply:	3-Phase,380V 50Hz;
Max Sewing Thickness:	450mm;	Efficiency:	15-18 units/h;
Air supply:	0.7-1Mpa;	Head lifting range:	125-450mm;
Machine dimensions:	2000-3950*900mm;	Applicable Industries:	Manufacturing Plant,matresss factory;
Worktable size:	20003950900mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Power(W):	6KW;	Voltage:	3-phase,380v 50HZ;
Mattress thickness:	150-450mm;	Place of Origin:	China;
Moving Style:	Head Moved;	Dimension(LWH):	20003950900mm;
Max Sewing Speed:	15-18Units/hour;	Total weight:	1500kg;
Number of Head:	Single Head;	Weight:	1500kg;
Packaging Detail:	film packing or the wooden case packing;	Brand Name:	NaiGu;
Total power:	6kw;	Port:	GuangZhou/ShenZhen;
Supply Ability:	30 Set/Sets per Month mattress tape edge sewing machine mattress quilting machine;	Warranty:	1 year;
After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash payment;
Certification:	ISO9001:2000;

description

Mattress Thickness	150_450mm
Head lifting range	125-450mm
Worktable size	20003950900mm
Machine dimensions	238018301650mm
Power supply	3-phase,380V 50Hz
Total power	3kw
Air supply	0.7-1Mpa
Total weight	1300kg
Efficiency	15-18units/h

Here are some advantages:

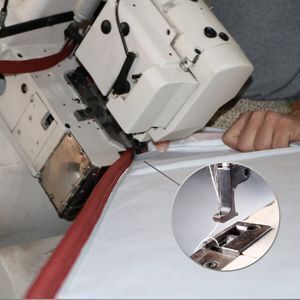

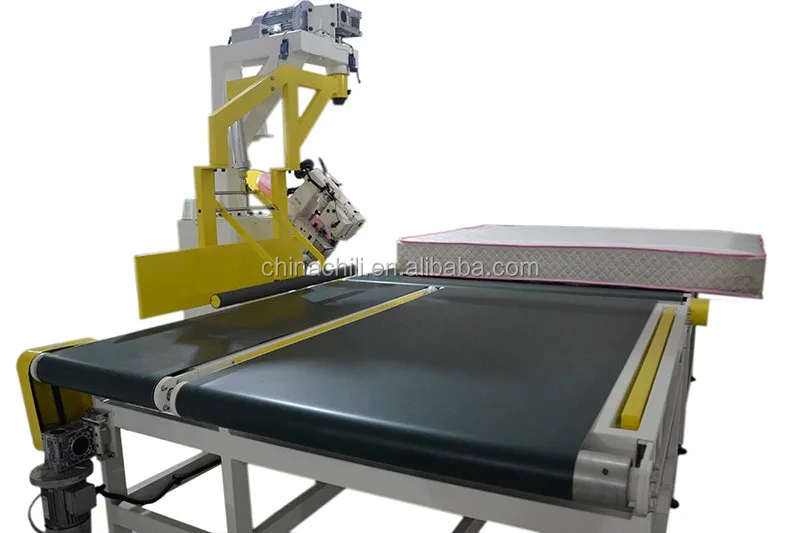

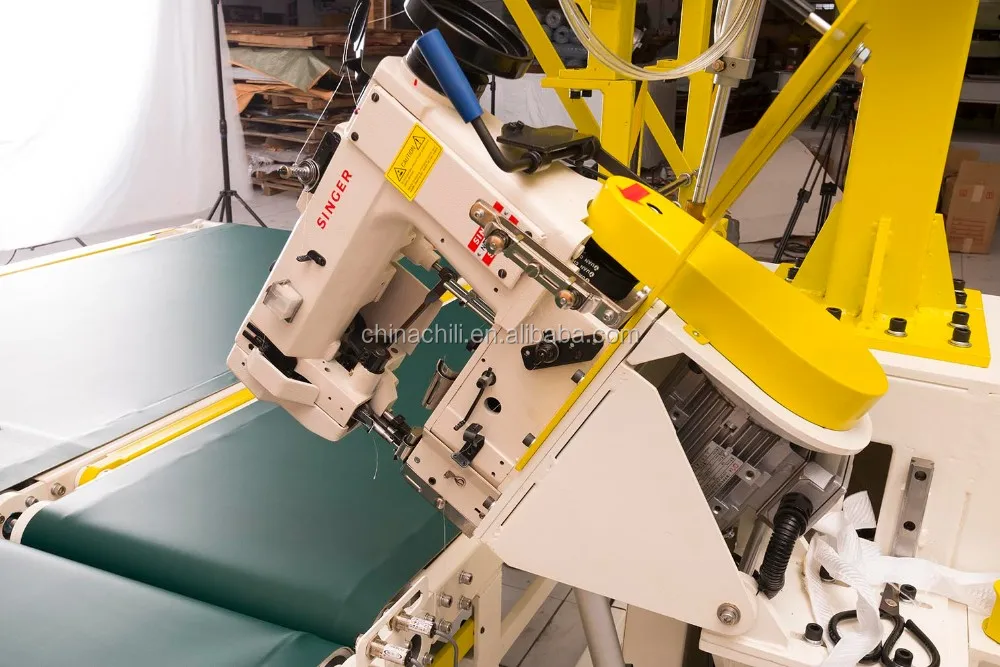

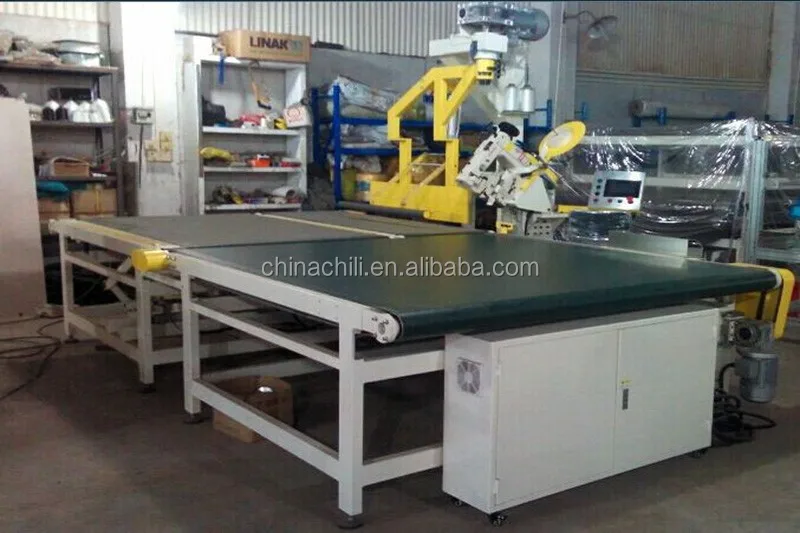

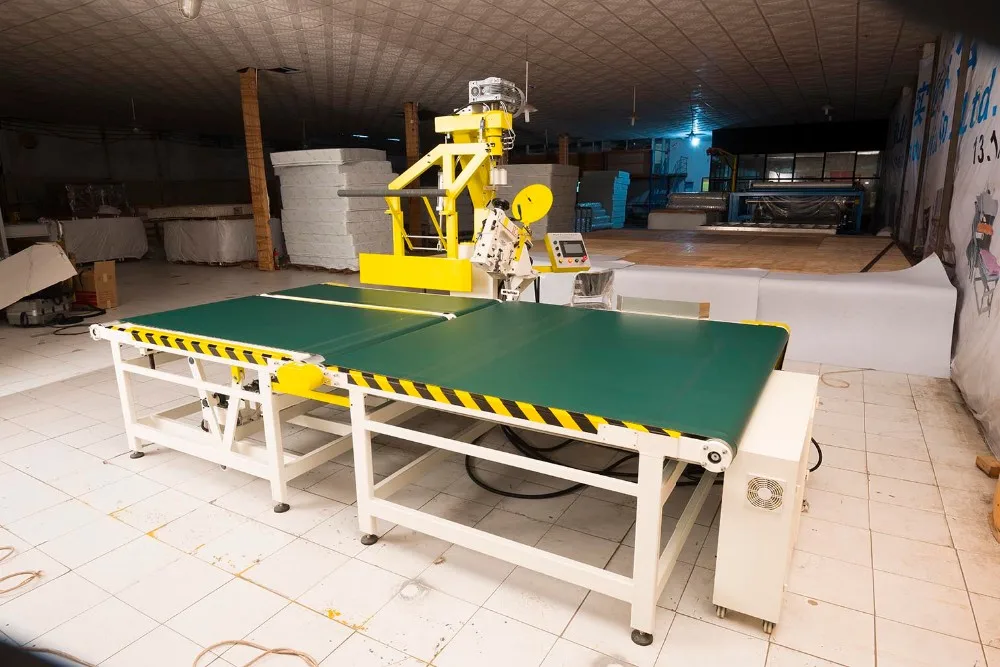

This machine is mainly used for tape edging mattress panels.The characteristics:The head is fixed and the operator no need to move around the mattress,The sewing head can go up and down to adapt to different thickness of mattress and tilting of sewing head is adjustable.The workable adopts convetor to drive mattress for sewing.When one side is finished,This machine can turn 90° automatically to sew another side.The sewing of corner is finished while turninig

Packaging & Shipping

mattress tape edge sewing machine mattress quilting machine

The delivery time will be in 15working days after received the 30percent deposit.And we usually use the GuangZhou/ShenZhen port as shipping port. But we accept any port in China.

The machine will be packed by the film.The main part will be protected by the film.And the machine will be devided into several parts for easy shipping.
