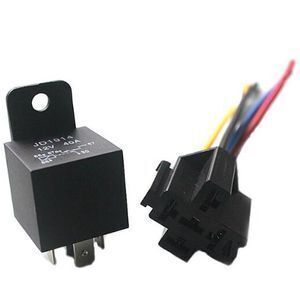

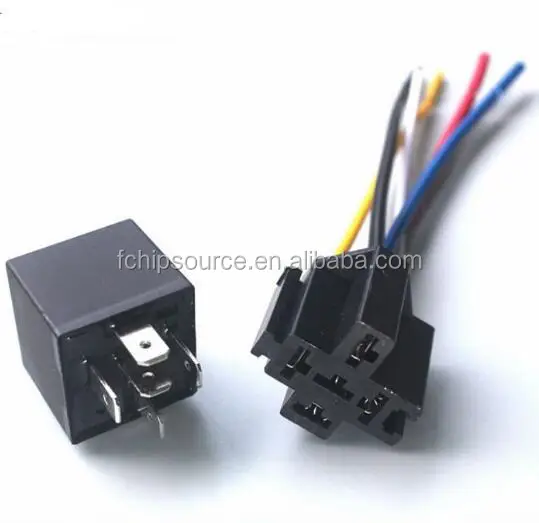

Automobile Relay 12V 24V/40A Automobile Line Modification Headlamp Horn GPS Navigation 4-foot 5-foot socket

Supplier: Shenzhen Feng Chipsource Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Jane Chen
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Carton;	Car Make:	universal;
Supply Ability:	1000 Piece/Pieces per Week;	Contact form:	transformational;
Socket wire length:	default wire length 14cm, wire diameter 1.5m2;	Number of pins:	four feet/five feet brass tin plating;
Place of Origin:	Guangdong China;	Coil Voltage:	12V/24V/36V/48V/60V/72V;
Port:	China;	note:	wire length, wire diameter can be customized as required;
Voltage:	DC12V;	Brand Name:	original brand;
Model Number:	standard;	Rated Current:	40A;
Payment Terms:	T/T,Western Union,MoneyGram,Paypal;	Contact:	silver contact;

Product Description

Automobile Relay 12V 24V/40A Automobile Line Modification Headlamp Horn GPS Navigation 4-foot 5-foot socket

model no. : JD2912/JD1914·

product features: large capacity, capable of switching 40 amperes of current; Standard contact forms available are: 1 set of conversion, 2 sets of constant

The working temperature is -40 to+125 C.

Product Usage: Automotive Control Device

Outward Size Length * Width * Height (mm): 28.0 * 28.0 * 25.0

Contact forms: 1a, la, 1c, 2A

Contact capacity: 1a/2a:40A 14VDC

1b: 30A 14VDC

1c: 30A/40A 14VDC

Coil voltage: 5-24VDC

Coil power (W): 1.80

Contact resistance: <50m

Insulation Resistance: > 1000 m

Life (time): Electric 10000 times

Mechanical 1*100000000 times

Medium Voltage Resistance: 500VAC Between Open Contacts

500VAC between ring contacts

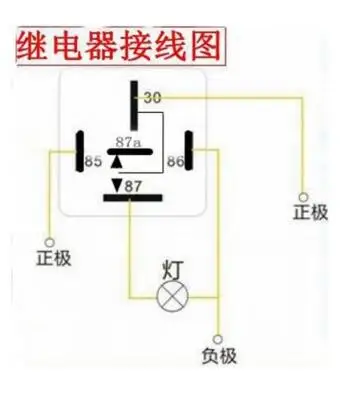

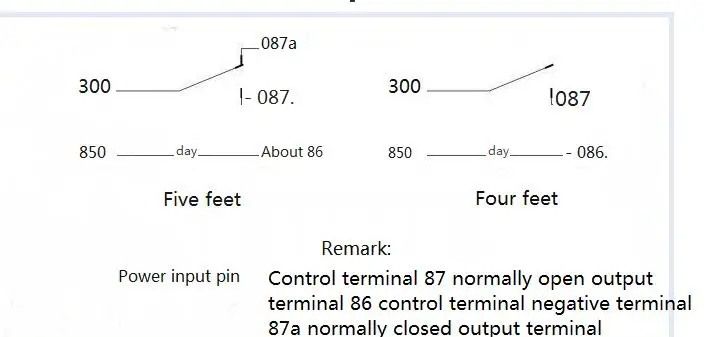

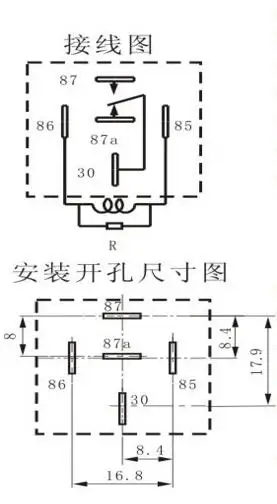

Note: 85 and 86 are the coil ends of the relay; 30 and 87 are the normally open contact ends of the relay; 85 and 86 are energized; 3087 is connected to 30 and 87a, the normally closed contact ends of the relay; 85 and 86 are energized; 3087a is disconnected as shown in the figure:When there is electricity at the positive extreme, the light turns on and when there is no electricity at the positive extreme, the light goes out
