Automatic Radiator Plastic Tank Crimping Machine

I Description of automatic radiator plastic tank crimping machine

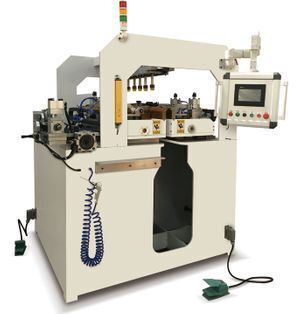

This automatic radiator plastic tank crimping machine is our state-of-the-art design for crimping plastic water chamber to header plates of radiators.

This machine has two working stations, one for longer header plate edges, another for shorter header plate edges. The two working stations work separately. So actually we call it semi-automatic, not full automatic.

This machine processes high automation, suitable for most type of existing radiator water tanks.

|radiator tank clinching machine|radiator tank clinching machine|radiator tank clinching machine|

II Main features of automatic radiator plastic tank crimping machine

|radiator tank clinching machine|radiator tank clinching machine|radiator tank clinching machine|

-- PLC control, HMI operation, servo driven, full automatic

-- Automatic leaving gap for tank mouth, idle stroke quick moving, suitable for various plastic tank clinching.

-- PLC control, technological parameters can be preset and displayed on HMI.

-- Many units radiator tank parameters can be saved and recalled for next time use.

- Both auto and manual control methods available. Auto method is for working, and manual method is for sampling & testing.|radaitor plastic tank crimping machine|radiator plastic tank crimping machine|radiator plastic tank crimping machine|

III Main technical data of automatic radiator plastic tank crimping machine

Item	Data
Suitable core height	450-1000mm
Suitable header plate width	30-120mm
Suitable header plate length	20-1000mm
Clinching pitch	Adjustable, default 10mm
Clinch speed	1-20 times per minute
Deformation of core and header plate after clinching	Less than 0.5mm
Clinching tool changeover time	Less than 10min (for another size tank)
Servo motor power	0.75kW x 2
Air source	0.6MPa, 0.01m3/min
Machine dimension	About 2300 x 2200 x 1700mm
Machine weight	About 3200kg

||radaitor plastic tank crimping machine|radiator plastic tank crimping machine|radiator plastic tank crimping machine|

IV Main configuration of automatic radiator plastic tank crimping machine

-- PLC & HMI: Delta from Taiwan

-- Servo motor& driver: Delta from Taiwan

-- Contactor and circuit breaker: Schneider from China

-- Approaching switch: Omron from Japan

-- Linear guide and ball screw: TBI from Taiwan

-- Pneumatic cylinders, valves and filters: AIRTAC from Taiwan

|radaitor plastic tank crimping machine|radiator plastic tank crimping machine|radiator plastic tank crimping machine|

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in machines for more than 15 years. We are audited by SGS, BV or TUV every year. We can provide you good quality automatic radiator plastic tank crimping machines as well as good services. We can provide all the related machines for manufacturing radatiors, condenser & evaporator, oil cooler, intercooler, etc.
