Small Scale CIP Cleaning system/ CIP cleaning-in-place equipment

Click here to contact
Product details
Weight:200KG-2000KG;Certification:CE / ISO9001:2008;
Place of Origin:Jiangsu China;warranty time:12 month;
Voltage:Local Requirement;Packaging Detail:Small Scale CIP Cleaning system/ CIP cleaning-in-place equipment;
Processing Types:Beverage;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Processing:Washer;Type:Small Scale CIP Cleaning system/ CIP cleaning-in-place equipment;
After-sales Service Provided:Engineers available to service machinery overseas;Dimension(L*W*H):800*800*1200MM;
Processing:cleanning;Material:SUS304 / 316;
Function:Machine Cleaning;after service:lifelong;
Supply Ability:30 Set/Sets per Day Small Scale CIP Cleaning system/ CIP cleaning-in-place equipment;Delivery Detail:within 15days;
material thickness:2~3mm;Application:cosmetic,skin cream,juice,milk;
Brand Name:KINGMACHINE;Condition:New;
Name:small cip cleaning machine;Warranty:12months;
Port:shanghai;heating type:electrical/steam;
Model Number:CIP;Power(W):2.2kw-18kw;

Small Scale CIP Cleaning system CIP cleaning-in-place equipment

Introduction:

The CIP equipment is used to clean at site of material pipe of industrial like milk products, juice,Beverage and etc and recipients. I t can also be used to clean the material pipe and equipment of beer factory, beverage and food factory.

A centrifugal pump is used in CIP to convey cleaning liquid into material pipe and equipment recipients to force the clean liquid to circulate to make cleaning without taking apart pipes or equipment. With the system the equipment availability can be improved and intensity of labor lessened. So the equipment is a kind of advanced technology equipment.

The application of the equipment must be combined with the equipment of the workshop pipe collocation and rinsing cap.





Technical parameters:

Container



 Liquid cylinder static pressure

Replace heat tube



<0.4MPa

Liquid slot



60~80℃

Clear water slot



indoor temperature



Replace heat tube



<138.8℃



Store slot

 0.5% nitric acid liquid, 2% causticity alkali liquid

Replace heat tube



 Clear water steam

acid,alkali liquid slot

 500L~10000L

Rate of carrier



80%



Volume type



normal pressure



Washing time for one time

 2


Washing process



clean water—alkali liquid-clean water-acid liquid---clean water

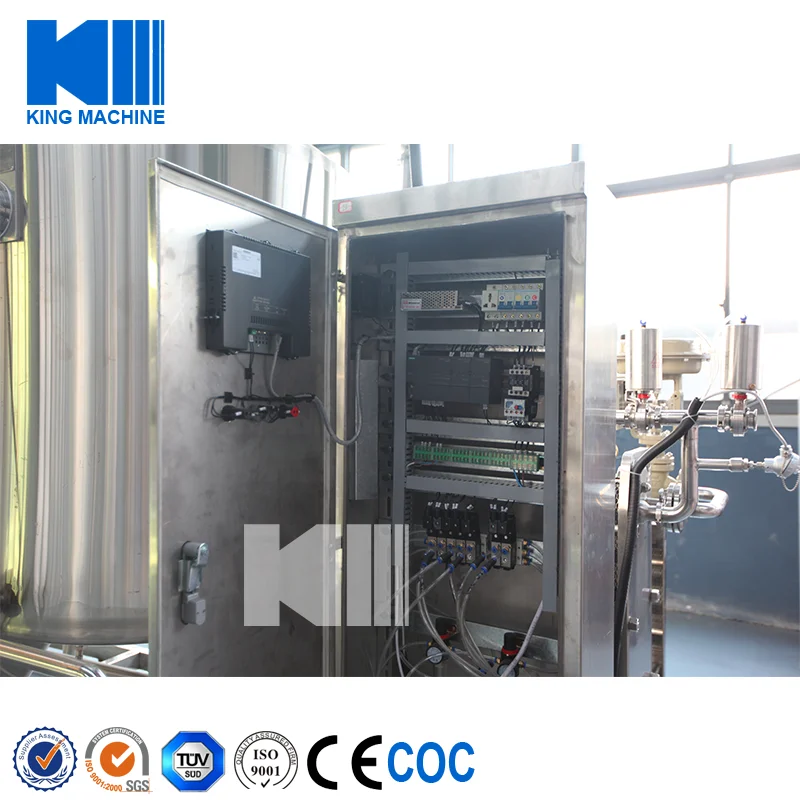

The automatic CIP cleaning system is specially designed for the clean up of beverage production line and filling equipment, with three cleaning sections of acid, alkali and hot water, in which temperature can be set up for acid, alkali and hot water. A new generation of touch screen operation, which is both open-and-shut and easy to handle. CIP EQUIPENT




CIP CLEANING CHARACTERSTICS

1.Before cleaning process, setting target subject & checking, to avoid mistake of choosing

2.CIP Liquid store TANK automatic Liquid-level inspection and complementarily

3.Acidity Liquid, Lye automatic adding inspection

4 Heat up temperature and circumfluence temperature controller

5.All of automatic valve and pump start and stop controller

6.Running statues display

7.Failure automatic pause and warning



Advantage and specification:



1.This automatic CIP cleaning system can be used in food,drink,and medicine process indusry



2.It makes the production plan reasonable and improve the product ability.



3.Clean and disinfect circularly the whole production line without being dismantled or opened.



4.Prevent the dangers during the cleaning work,as well as saving the labor force of workers.



5.Save the cost of the cleaner,steam,water and other output cost.



6.Extend the service life of machines including the pars.



7.Three optional types: Manual system,semi-automation system,the full-automation system.

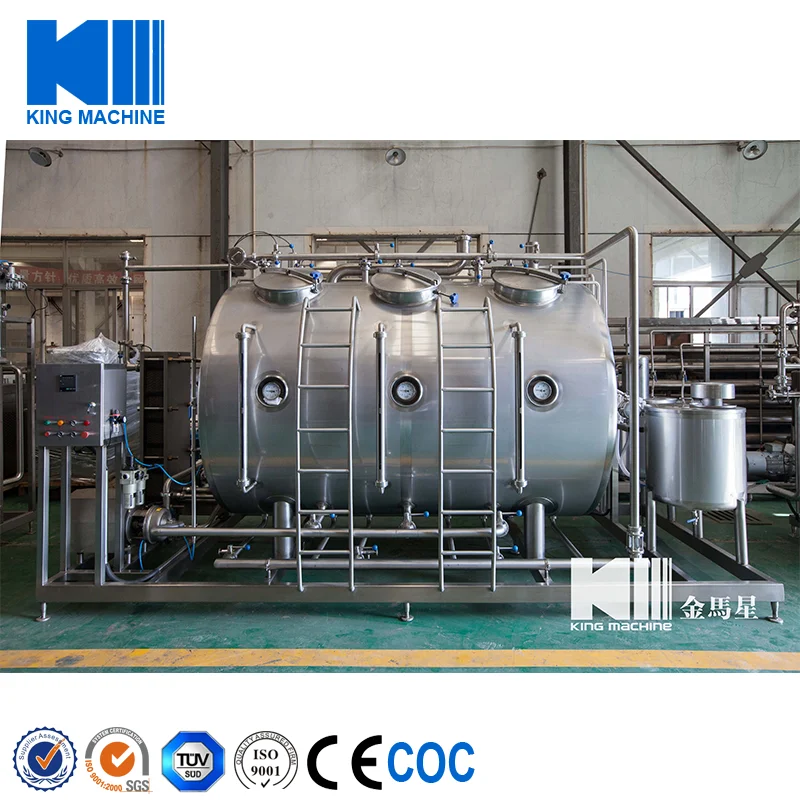

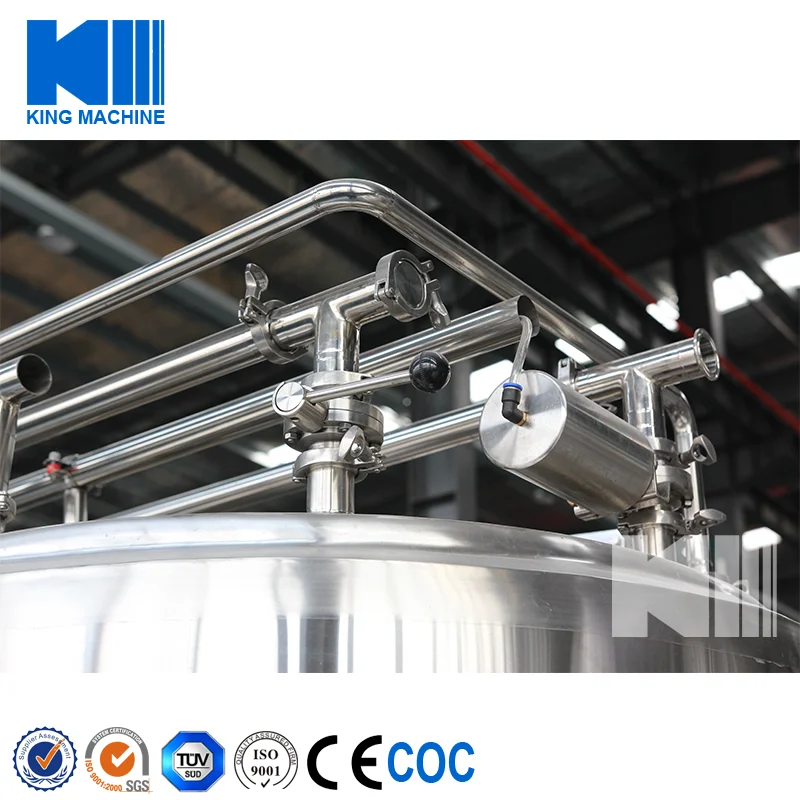

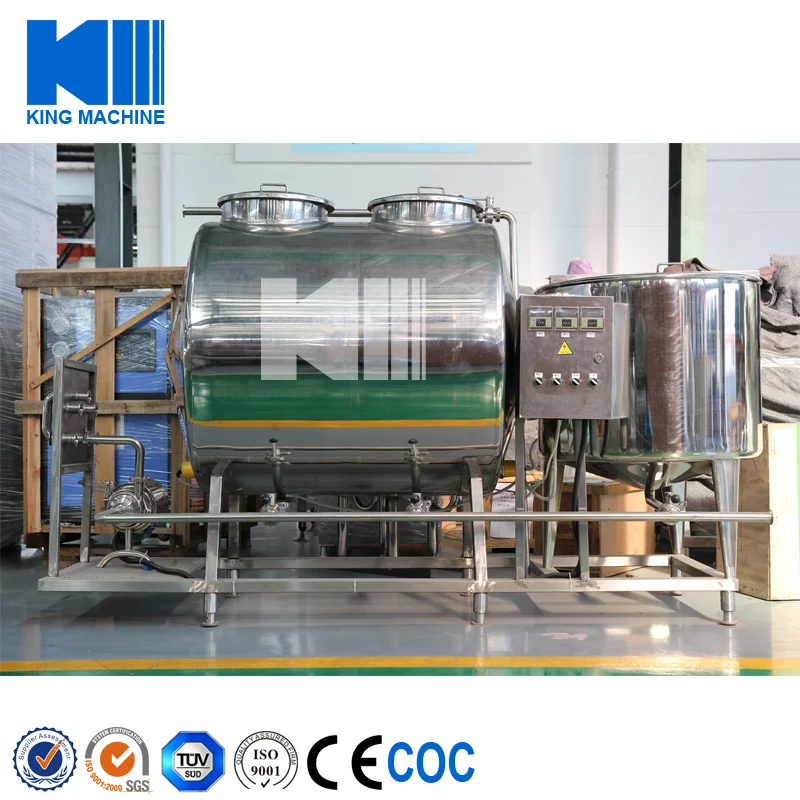

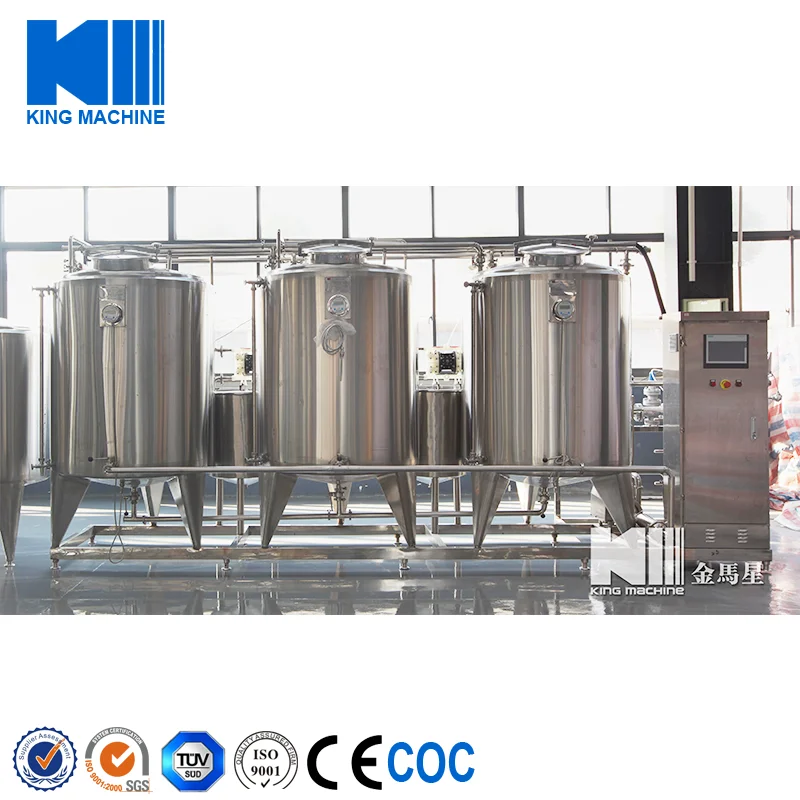

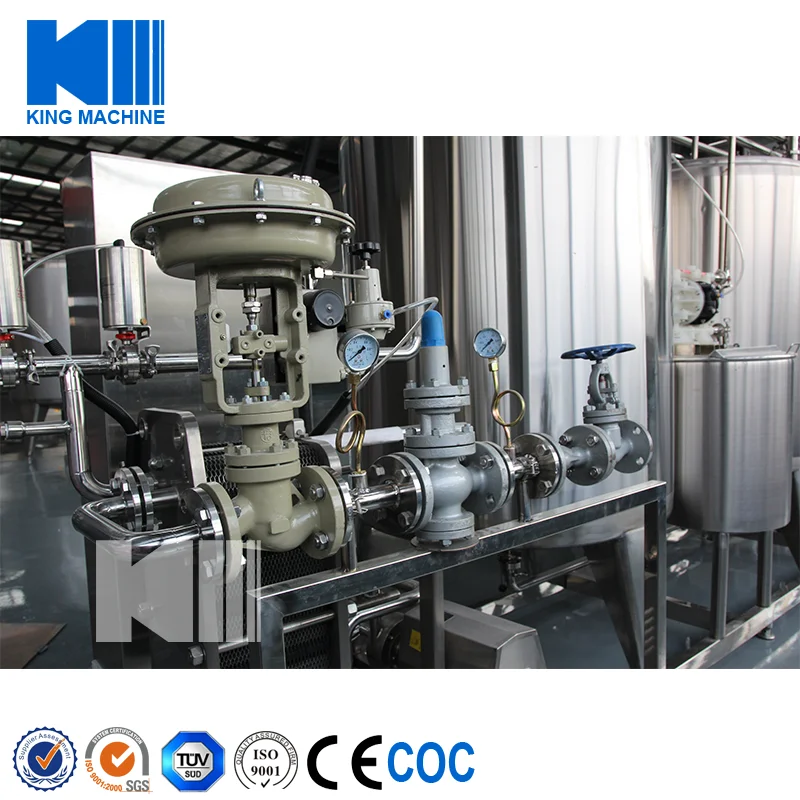

Photo :

Certifications



Packaging & Shipping



Our Services

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.



The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.



Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.



After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.



Quality Control

We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.

 If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.

Company Information

Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection   moulding machine and spare parts of filling line.

Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.

King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.



O

Our Factory

Our production workshop

Our workers are working



FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !



Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.



Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.



Q4: How can I install my machine when it arrives?

A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.



Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
