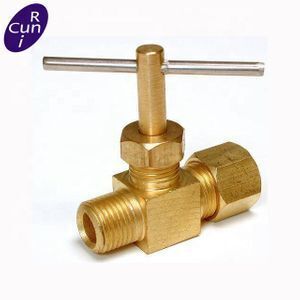

brass compression needle valve
-
Supplier: Jiangsu Cunrui Metal Products Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Jerry Chen -
Price: $100.00 /piece -
Min. Order: 1 piece
| Application: | Oil, Gas, Water; | Packaging Detail: | Standard Export worthy duly wooden boxs; |
| Ends Connection: | NPT, SW, BW; | Port: | Shanghai/Ningbo Port; |
| Payment Terms: | L/C,T/T; | Inspect & Test: | API 598; |
| Standard or Nonstandard: | Standard; | Brand Name: | CUNRUI; |
| Model Number: | X43F; | Certificate 3: | API 600; |
| Supply Ability: | 1000 Ton/Tons per Year; | Power: | Manual; |
| Temperature of Media: | Normal Temperature; | Certificate 2: | ISO 9001: 2008; |
| Face To Face: | Manufacture Standard; | Media: | Oil; |
| Place of Origin: | Jiangsu China; | Design & Manufacture: | ASME B16.34; |
| Characteristic: | Needle Valve; | Pre-Temp. Rating: | ASME B16.34; |
| Structure: | Needle; | Port Size: | DN6~DN50, 1/4"~2"; |
| Certificate 1: | DNV CE 0575; |
| Product Name | brass needle valve | |||
| Valve Type | Needle Valve | |||
| Size Range | DN6~DN50, 1/4"~2" | |||
| Pressure Range | PN10~PN420, 1000 PSI~6000 PSI | |||
| Connection End | NPT, SW, BW | |||
| Standard | ASME B16.34, API 598 | |||
| Operation Way | Manual | |||
| Packing Method | Standard Export worthy duly wooden boxs | |||
| Shipment Way | By Express, By Air or BySea, as customer request | |||
Construction is as follows:
- Regular Port
- Screwed Bonnet
- Integral Backseat
- Socket Weld Ends to ASME B16.11
- Butt Weld Ends to ASME B16.25
- Screwed Ends to ANSI/ASME B1.20.1
Main Part & Materials
| Part Names | Part Materials | |||||||
| Body | A105 | LF2 | F22 | F304 | F316 | F304L | F316L | B62 |
| Bonnet | A105 | LF2 | F22 | F304 | F316 | F304L | F316L | B62 |
| Trim | 13%Cr/SS304/SS316 | SS304 | SS316 | SS304L | SS316L | B62 | ||
| Packing | Graphite/PTFE | |||||||
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. | |||||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C |
More producrt>>>>
*****If you want to know more products please click on the picture above,thanks!*****
JiangSu CuiRui Metal Products Co., Ltd Is Located In Jiangsu Province Wuxi City, The Large South Stainless Steel Markets In China, Is Also One of the Powerful Company In the Stainless Steel Area With Large Scale And Long History. We Have 2000 Square Meters Of Storage And Processing Center Which Covered Equipment Using In Slitting, Cutting In horizontal, Laser Cutting , Plasma And Grinding Machine And Embossing Machine. We Mainly Sell Stainless Steel Sheet, Pipes, Coils, Bands, Section Bars, And So On Which Are Applied In Decoration, Medical Industry, Food Industry, Construction Industry etc, Besides, we also sell different kinds of valves. And Have Gained Gain Good Feedback And Establish Mutual Trust With Our Clients. According To Your Requirement We Can Process Brushed Film, 6k, 8k Mirror, Polishing, Yellow Titanium, Black Titanium, Rose Gold, No Fingerprint, And All Kinds Of Colored Stainless Steel Sheet.
1. To provide professional technical guidance and design solution
2. Strict quality control system and rich manufacturing to make sure the hign-quality products
3. Competitive costs supported by stable raw materials suppliers
4. Strong overseas sales team to assist customers to develop sales strategy
5. Fast, efficient and professional online service, like email, skype, whatsapp tools
6. OEM/ODM services
7. Any kind of logo printing or design are available
8. Our company was awarded with ISO 9001, certificate and CE for our valve, pipe fitting and flange products
*************************************************************************************************************************************
1. Q: Is sample order acceptable?
A: Yes
2. After-sales service
1 year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service
3. Payment
T/T, Paypal, L/C
4.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea
5. Do you provide free sample?
Usually we do not offer free sample
6. Could you print our company LOGO on the nameplate and package?
Yes, we can do that
7. Do you accept custom design on size?
Yes, if the size is reasonable
Thanks for your valued time with interest!
-
