hebei floral foam production chemical formula/wet floral foam production line for hydroponic sponge

Supplier: Xuzhou Huiya Imp.&exp. Co., Ltd.
Region: Jiangsu, China
Contact: Ms Gao Lichee
Price: $106000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Product foam;	Processing Type:	Wet floral foam production line;
After-sales Service Provided:	Engineers available to service machinery overseas;	Product Name:	Production line for hydroponic sponge;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Brand Name:	Huiya;
Warranty:	12 months except spare parts;	Dimension(LWH):	customized;
Special:	Foaming Machines;	Raw material:	Phenolic resin;
Product Type:	Foam Net;	Processing Type:	Foaming Machine;
Condition:	New;	Name:	Wet floral foam Machine;
Power(W):	30KW;	Machine Type:	Automatic;
Supply Ability:	100 Set/Sets per Year;	Material:	Steel;
Packaging Detail:	seaworthy package of of wet floral foam making technology wet floral foam production line for hydroponic sponge full floral foam production line need use 2*40 high container;	Feature:	Technology , Automatic;
Certification:	ce;	Voltage:	380V/50HZ;
Port:	China port;	Place of Origin:	Hebei China (Mainland);
Weight:	12t;

Product Description

Characteristics of new technology of wet floral foam making technology:

1.Our company adopts solid para-formaldehyde synthesis technology, solving the problems of waste water discharge, environment protection, etc.

2.The automatic temperature control system combines electric heating and physical reaction, which improves the production efficiency, reduces the resin production cost. Synthetic resin equipment combined with automatic foaming machine let the stability of the foam(density, strength, water absorption, water retention, PH) come true, and let the foam open porosity rate can reach more than 95%. New technology of the production cost was reduced by 15% than old technology.

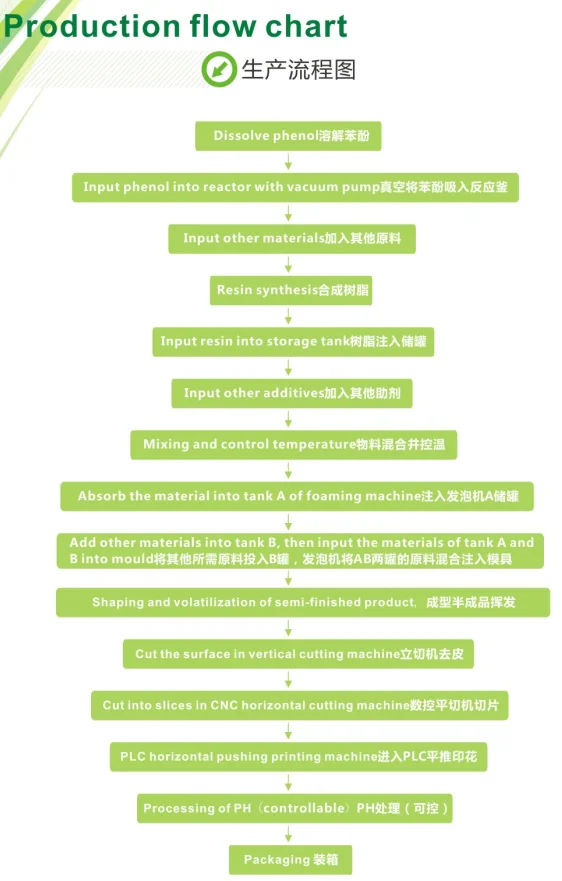

3.The whole production line includes resin synthesis equipment, floral foam auto-machine, foaming mould, vertical cutting machine and printing machine, etc.

1. All the production line covers 1000 square meters.

2. It needs 3~6 workers to work for 8 hours per day in order to produce 600~1500 cartons, which is enough for the standard configuration.

3. As for the power requirement, it needs about 85kw. The machinery can be customized due to different countries have different requirements for the power.

4. As for the raw materials information, we will offer after signing of the contract.

5. As for the service, we will teach you until you learn it well in your country.

6. Besides, we will help you install the machines in your country. If the equipment has any problems, we will help you to solve it.
Welcome your inquiry.

Resin synthesis equipment of wet floral foam making technology

This equipment adopts the material:304L,Q235 :
(1) Energy saving: the production of 700 kg resin used electric 50 RMB, don't need to be heated in the process of production, It was synthesized by chemical physics, compared with other production of foam equipment greatly reduces the cost of production.
(2 ) Environmental protection: no sewage,no waste emissions;
(3) Efficient: 1000 l reactor can produce 700 kg resin, production time 4 hours
(4) the total power configuration: 22 w, actual use power: 6 kw;

Automatic control cabinet is used to accurately controlk the temperature and input materials, which can enjoy stable product quality and reduce production time and labor.

Foaming Equipment of wet floral foam making technology

Description: (1) material: 304 L, Q235
(2) energy saving, high efficiency, environmental protection equipment, PLC control
(3) the ability of 15 to 20 seconds to 1 m3 after speed: 2800 revolutions per minute
(4) after installation equipment specification: 5.8 M * 2.6 M * 3.5 M
(5) the total power rating: 26.8 KW, the actual average operating power is about 1.05

Microcomputer PLC control; Tian electrical components exclusively imported to achieve the goal for automatic, accurate and reliable control, it can be imputed with more than 500 working positiion data; pressure, temperature and rotation rate digital tracking and display and automatic control; equipped with abnormity or fault alarm devices. Imported converter (PLC) Ccan control eight different product ratio.

Vertical cutting machine of wet floral foam making technology

Description: (1) the peel and cut different shape of the bubble specifications;
(4) after installation equipment specification: 3.6 M * 2.8 M * 2.4 M wide
(5) the total power rating: 1.5 KW

Simple operation. It is equipped with suction machine, which greatly reduces the floral foam powder pollution and makes working environment healthy.

CNC horizontal cutting machine of wet floral foam making technology

Description:This equipment is CNC automatic operation, and the vertical cutting machine the staff work together, a woman can operation, ability to work in accordance with the eight hours can cut 2000-2200-8 cm specification foam box bubble.
(1) 8 cm foam cutting specifications;
(2) after the installation equipment specification: 5.6 M * 2.8 M * 2.4 M
(3) the total rated power: 4.5 KW

Computer control, simple operation. Equipped with suction machine, greatly reduces the floral foam powder pollution, make working environment healthy.

Horizontal pushing printing machine of wet floral foam making technology

Description:This equipment is to start control, according to the customer need to customize different specifications in the shape of a bubble
Job scope: heart, LOVE, cross, annular, empty heart.
After installation specification: 1.6 M * 1.3 M * 1.35 M

This machine is used to cut the sloice in bricks, then the floral foam bricks go into PH processing system. The process is automatically controlled by PLC, which greatly improves the production efficiency and quality.

Foam Mould of wet floral foam making technology

Description: (1) the mold specifications: 1 cubic (can be customized according to customer's requirements)

(2) one mold specifications: inner diameter 1 M * 1 M* 1 M
(3) automatic constant temperature setting, time control systems,
(4) three mold after installation equipment specifications: 5.8 M * 1.6 M * 1.6 M length: 13 M
(5) the total power rating: 24 kw

Using automatic electrical heating control system to make floral foam heat evenly and maintain the temperature. And it makes floral foam shaped constantly with uniform density and enjoys little waste.
