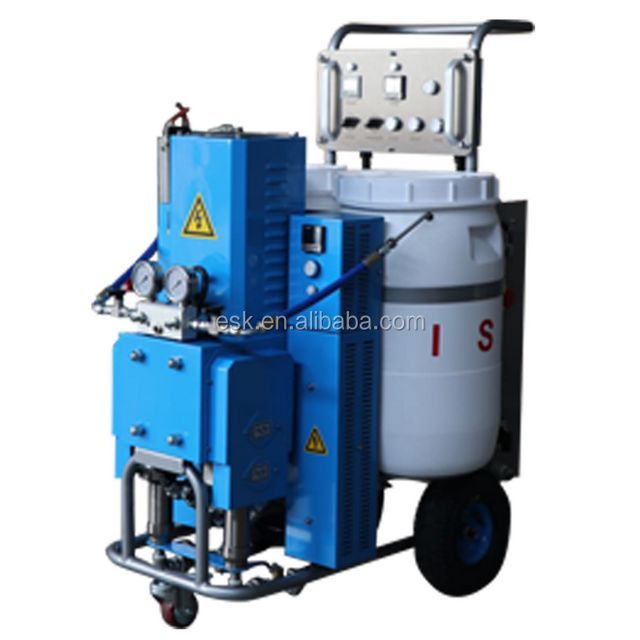

Closed cell polyurethane foam insulation machine FD-E10H

  • Supplier: Taian E.S.K. International Co., Ltd.
  • Region: Shandong, China
  • Contact: Mr David Lee
  • Price: $4500.00 / 1 - 1 sets
    $4400.00 / 2 - 4 sets
    $4300.00 / 5 - 9 sets
    $4250.00 / >=10 sets
  • Min. Order: 1 set
Product details
Product Category:Insulating Rigid Foam, Rigid Insulating FoamCore components:Motor, water pump, PLC, pressure vessel
After-sales service provided:Engineers available to service machinery overseasMaterial:Polyurethane A+B Isocyanate
type:electric driveApplicable industries:Building materials store, manufacturing plant, retail, construction
Supply capacity:50 sets per monthType of machine:electrical
capacity:6-10 kg/minPower (kW):10
Voltage:220/380Packaging Details:Glued wooden box
feature:Polyurethane/PolyureaMechanical test report:if
pressure:17 MPaapplication:wall roof insulation
product name:Polyurethane spraying machineDimensions (L*W*H):705*879*1126mm
Origin:ChinaCore component warranty:1.5 years
Main selling points:energy savingWarranty:1.5 years
Package preview:Marketing Type:New Products 2020
Showroom location:Canada, United States, Philippines, Romania, Ukraine, Australiabrand:ESK
Video shipment inspection:ifpayment terms:L/C, T/T
Health status:newWeight (kg):150 kg
Processing type:foam machinecolor:blue
port:Qingdao



Product Description





PU foam machine is used for:

  • foam insulation sprayer,
  • Wall roof insulation foam sprayer.
  • External wall insulation
  • Insulation of walls, refrigerators and roofs
  • Freezer
  • Solar water tank insulation
  • Rigid polyurethane only
  • roof waterproofing

Advantage:

· Portable and compact design, easy to move anywhere.

· Electric drive ensures more stable pressure and output.

30% energy saving, the whole machine only 10000w

· High efficiency output capacity of 10 kg per minute

The maximum length of the high-pressure heat pipe can reach 45 meters

Technical data:



project

FD-E10H polyurethane spraying machine

proportional fixed host

1 set

Self-cleaning spray gun

1 set

heated hose

50 feet (15 meters)

Raw material data ratio

1:1 (fixed)

Raw material viscosity range

200-1000CPS (at working temperature)

working pressure

17 MPa (170 bar)

Maximum Fluid Temperature

88°C (190°F)

maximum output

6-10 kg/min (13-22 lb/min)

Heating tube power

1000W/15m

Voltage

230V 1 phase / 230V 3 phases / 400V 3 phases

Machine size

705*879*1126mm

gross weight

180 kg

net weight

150 kg

barrel volume

40 L (each)

Maximum heating tube length

100 feet (30m) 45 meters can be customized







Packaging and Shipping







our service



Q: What is the warranty time?

A: 18 months from when you receive the goods.

During the warranty period, we will ship free parts by air for free,

After that, we will provide spare parts based on parts cost.

Q: What is the delivery time/delivery time?

Answer: 20 days

Q: What is your minimum order?

Answer: 1

Q: What's your payment term?

A: 1- 30% deposit on order confirmation, 70% before shipment.

2- Trade Assurance



scope of application



connecting hose





spray gun





feed pump



spare parts free
