ratio: | 1:1-1:2 | strength: | 7.5-26kw |
Power (kW): | 7.5/12/16kw | Weight (kg): | 220KG, 200KG |
Type of machine: | foam machine | Warranty: | 2 years |
Video shipment inspection: | if | product name: | Polyurethane foam polyurea spraying machine |
Voltage: | 220V/380V, 110/220/380V | Processing type: | foam machine |
brand: | ETOO | Dimensions (L*W*H): | 810*810*1450MM, 1600*850*850mm |
Product Category: | Foaming machine, foaming net | Core components: | motor, water pump, other, engine |
Package preview: | | Mechanical test report: | if |
Applicable industries: | Building material stores, farms, home use, construction, energy and mining, other | Main selling points: | energy saving |
color: | Customized color | port: | Qingdao, Shanghai, Guangzhou |
Showroom location: | UK, US, Italy, France, Germany, Spain, Colombia, Romania, South Africa, Malaysia | Core component warranty: | 2 years |
Marketing Type: | normal product | Origin: | Shandong, China, Shandong, China |
Health status: | new, new | Supply capacity: | 3500 pieces per week |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Packaging Details: | Wooden box 1600*860*860mm |
Product overview
product specification

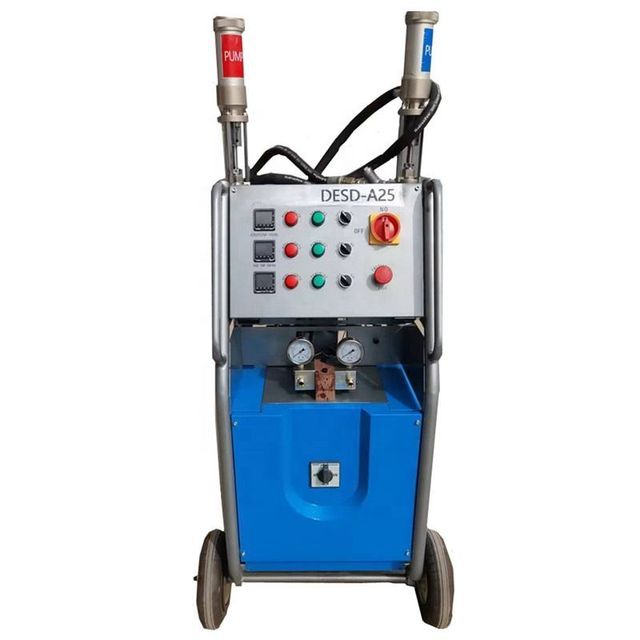

Model | ETSD-A25 |
energy source | 220V/110V single phase or 380V three phase |
heating power | 12KW |
drive mode | Electric/hydraulic/pneumatic |
Gas source | 0.3~0.8 MPa ≥0.9m³/min |
raw output | 2~12kg/min |
output pressure | 22MPA |
AB material output ratio | 1/1 |
spray gun | 1 set |
feed pump | 2 sets |
heated hose | 15 meters |
Spray gun connection pipe | 2 pieces |
Feed delivery tube | 2 pieces |
air delivery tube | 5 meters |
Accessory box | 1 set |
Pneumatic Polyurea and Polyurethane Spray Foaming Machine:
1. The heating power of the machine is 14KW, the maximum output pressure is 25Mpa, and the maximum hose support is 120m.
2. Economical and affordable, it is the best choice for household and large-scale project spraying.
3. Reliable and powerful heating system makes the raw material heat up to the best state quickly and ensures the excellent performance of the product
in cold conditions.
4. The humanized design of the equipment operation panel is super easy to use.
5. The feed pump adopts a large variable ratio method, which can easily feed high-viscosity raw materials even in winter.
Polyurethane spraying machine
Spray Foam Roofs: Strong and Durable
Applying a spray polyurethane foam (SPF) roofing system can increase the strength of a building. In fact, SPF roofs have an effective
The life span can reach more than 30 years.
Because SPF conforms and adheres to the surface it's sprayed on, it creates a strong bond to protect the roof. the layer
Spray foam is seamless and self-flashing, which eliminates the ability of water to seep through weak spots such as fasteners
and seams. The spray foam can be applied in an angled manner to allow water to drain easily from the roof.
The combination of SPF and the roof can increase the wind resistance of the building. Therefore, during high winds, the home or
Buildings with spray foam roofs generally suffer less damage than buildings without SPF. Renowned Spray Foam Consultants
Noting that he found that "when added to the interior of a structure, spray foam 'glues' the entire building together, enhancing
Overall resistance to wind pressure.
