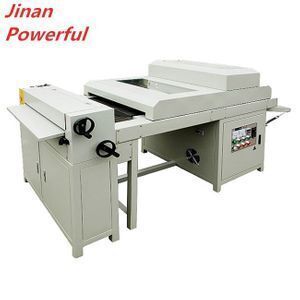

Fast digital prints 650mm photo album paper UV coating machine,UV varnish laminator

Supplier: Jinan Powerful Image Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms YAN REN
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Voltage:	220V/50Hz;
Driven Type:	Electric;	Photo thickness for coating:	0.2-3mm;
Coating speed:	150-500m2/h;	Warranty:	one year;
Key word:	UV coating machine;	Automatic Grade:	Semi-Automatic;
Packaging Detail:	Plywood box;	Certification:	CE Certificate;
Brand Name:	Jinan Powerful;	Place of Origin:	Shandong China (Mainland);
Product name:	photo album UV coating machine;	Application:	photo paper protecting;
UV lamp life time:	800hours;	Payment Terms:	T/T,Western Union,MoneyGram;
Type:	Coating Machine;	Packaging Type:	wood box;
Function:	photo paper protecting;	Coating width:	650mm;
Dimension(LWH):	190011001100mm;	Weight:	280kgs;
Packaging Material:	Wood;	Port:	Qingdao,Yiwu,Shanghai,Guangzhou,TianJin,LianYunGang;
Supply Ability:	800 Set/Sets per Month;	Warranty:	1year;
After-sales Service Provided:	Engineers available to service machinery overseas;	After-sales Service Provided:	Video technical support;
Usage:	digital prints protect;

Product Description

Fast digital prints 650mm photo album paper UV coating machine,UV varnish coating laminator

photo album UV coating machine

Product Application

650mm photo album paper UV coating machine is middle machine that we manufactured for the digital photo printing factory. It takes place the traditional techniques of cold mounting and hot mounting. The processed photos have such effects as high definition, high gloss, environment protection. The cost is only 03-0.6RMB per square.

We mianly coat UV liquid on the photo paper by using this 650mm UV coating machine . It is to protect the photo paper from scratch, water and so on.

Machine size	190011001100mm
Weight	280kgs
Voltage	220V/50Hz/4000w, Can also make 60Hz
Coating speed	150-500m2/h
Coating UV glue thickness	0~0.1mm
UV lamp life time	800hours
Max coating width	650mm
Drying way	ultraviolet rays
Photo thickness for coating	0.2mm-3mm
Indoor temperature	More than 10 degrees

Main Features

1.Circulate Recyclable UV coating liquid- avoid wasting
2.Matt UV liquid and glossy UV liquid--- there are Liquid scraper in the machine head, back of photo is clean
3. Photos will be drying at the machine body , Fast and adjusted UV coating speed.
4.Drying speed is very fast.There is UV light and air blower in the machine body
5.Photos after coated is waterproof,dustproof,scratch-resistant,high gloss, environmental friendly, good toughness, humidity resistance, no deformation, and no bubbles.
6.There are Powered off protection system in the high temperature.
7.UV ultraviolet lamp radiation protection
8.Humanized modeling, more convenient with wheels for customers

TIPS:

1.Protecting rubber roller/smooth roller when transportation and using.
2. Do not put granular /rigid object in the machine.
3.Use alcohol to clean the rollers after use immediately
4.Please clean the UV liquid pump, rubber roller, smooth roller and liquid box. when powering off----- avoid solidification of UV liquid.
5. It is better Please Do not open light-tight hood when coating.It is to protect ours eyes.

Detailed Images

Manual Feeder UV coating head

Name: UV coating head

Brand: Jinan Powerful

Original: Jinan ,CHina

Photo Paper Tray

Name: Paper Tray
Brand: Jinan Powerful
Original: Jinan,Shandong
After UV coating and dry, the photo paper will remain here.

Very convenient and clean

Machine Part

Name: Motor
Original: Germany
It is durable and can be used for a long time.

Control panel

Name: control panel(with english)
Brand:Jinan powerful
Original: Jinan,Shandong
Chinese-English conversion.

The roller part

The roller is very clean and durable.

UV liquid will come out from here.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* English manual and Video for machine using and maintaining..

Packing & Delivery

Packaging
Size	155100125CM and 10545110CM
Weight	300kgs
Packaging Details	The normal package is wooden box(two box ). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Popular goods

Our Company

Jinan Powerful Image Equipment Co., LTD is a professional company that mainly produces and sells photo studio post-production equipment and consumables in Jinan city, Shandong province, China.

We have done business on alibaba about 8 years. And we have good reputation in this industry. Please do not worry about doing business with us. Welcome!

Main products:
Album making machine,sublimation heat press transfer machine, UV coating machine, Cold/hot laminator ,Double side gluing machine, creasing machine, binding machine,cold press machine and so on
Cold lamination film, AB glue, cashmere glue, Adhesive PVC sheet, Tempered glass, UV liquid, UV Shadow less glue, PVC specialized glue, MDF board edge covering strip and so on.
