Type: | cutter suction dredger; | Payment Terms: | L/C,T/T; |
Dredging Depth: | 12 m; | Port: | Tianjin Port; |
Applicable Industries: | Energy & Mining; | Warranty: | 1 year; |
Supply Ability: | 30 Set/Sets per Year Sand mining dredger have semi-finished in stock; | Dredging depth: | 15m; |
Hydraulic system: | Rexroth Germany; | Dimension(L*W*H): | 36X7.9X2.2m; |
Discharge distance: | 1500m; | Diesel engine: | Cummins; |
Condition: | New; | Work site: | River/sea/pond/lake; |
After-sales Service Provided: | Field installation, commissioning and training; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Structure: | Dismantle; | Application: | Sand Dredging; |
Draught: | 120 cm; | Weight: | 130T; |
Type: | Cutter Suction Dredger; | Packaging Detail: | In bulks; |
Power Type: | Diesel; | Certification: | ISO9001; |
Brand Name: | Jin Meng sand Dredger; | Name: | sand mining dredger; |
Place of Origin: | Shandong China; |
1. Weifang Jin Meng Dredger Co., Ltd.
Weifang Jin Meng Dredger Co.,Ltd. located in Qingzhou, Weifang City, is a manufacturer for sand mining dredger, work boat and gold dredging equipment,which is specialized in dredgeing equipment researching, designing, production and sales. We have professional R&D department, CAD drawing design center, quality control department and after sales service department. Our company has more than over 500 employees, including 5 professional senior engineers on sand miningdredger building and researching, 16 designers on machinery construction, 8 engineers on quality inspecting and controlling as well as 10 after sales service engineers. |
2. Sand Mining Dredger Models
Sand mining dredger different model with main specifications
Model | Dia.Discharge pipe | Working capacity | Dredging depth | Discharge distance | Total power |
(m3/h) | (m) | (m) | (kw) | ||
JMD250 | 250 | 165 | 6 | 800 | 187 |
JMD350 | 350 | 330 | 8 | 1000 | 375 |
JMD450 | 450 | 600 | 12 | 1200 | 925 |
JMD500 | 500 | 1050 | 15 | 1500 | 1223 |
JMD600 | 600 | 1500 | 15 | 2000 | 2230 |
JMD700 | 700 | 2100 | 17 | 2000 | 3250 |
JMD500D | 500 | 1050 | 20 | 2000 | 1517 |
JMD600D | 600 | 1500 | 20 | 2000 | 2710 |

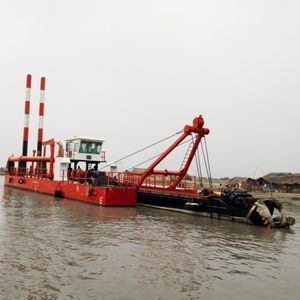

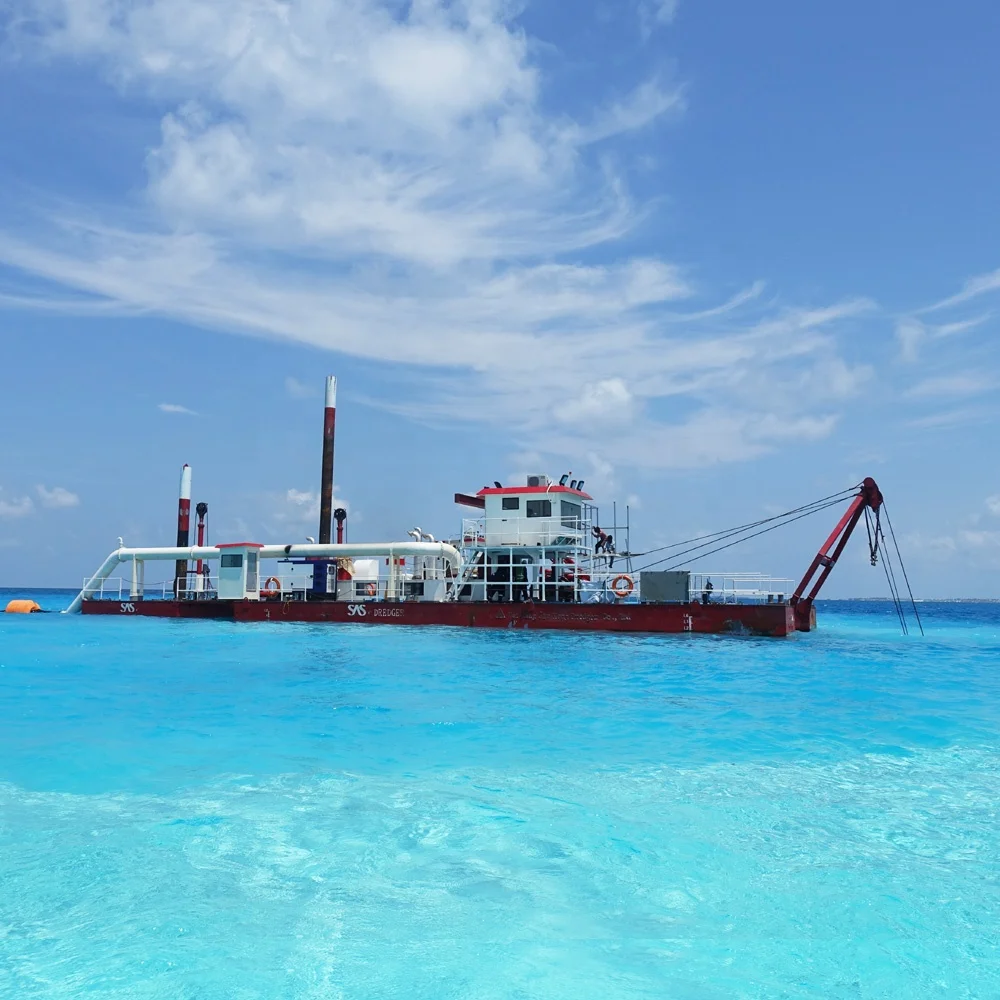

3. JMD500 3500m3 Sand mining dredger
A. JMD500 3500M3 sand mining dredger with brief specifications as below:
JMD500 Sand mining dredger | |||
Dredging Pump | Dia. Discharge pipe | 500mm | |
Head | 54m | ||
Max. Working capacity | 1050m3/h | ||
Discharge distance | 1500m | ||
Dredging depth | 15m | ||
Diesel Engine | 895KW | Cummins | |
Hydraulic Auxiliary engine | 298KW | Cummins | |
Emergency Generator | 30KW | Cummins | |
Total power | 1223KW | ||
Oil Consumption | 183L/H | ||
Hull Dismension | LOA*W*D | 36m×7.9m×2.2m | |
Hydraulic system | Hydraulic pump | VICKERS America (Joint-venture) | |
Hydraulic Motor | Italy SAI technology(Joint-venture) | ||
Valves | REXROTH Germany (Joint-venture) | ||
Operating system | SIEMENS PLC(Imported from Germany) | ||
Ladder winch | Tension | 100KN | |
Swing winch | Tension | 100KN | |
Cutter Head | Crown-like | Φ1750mm | |
Power | 170KW |

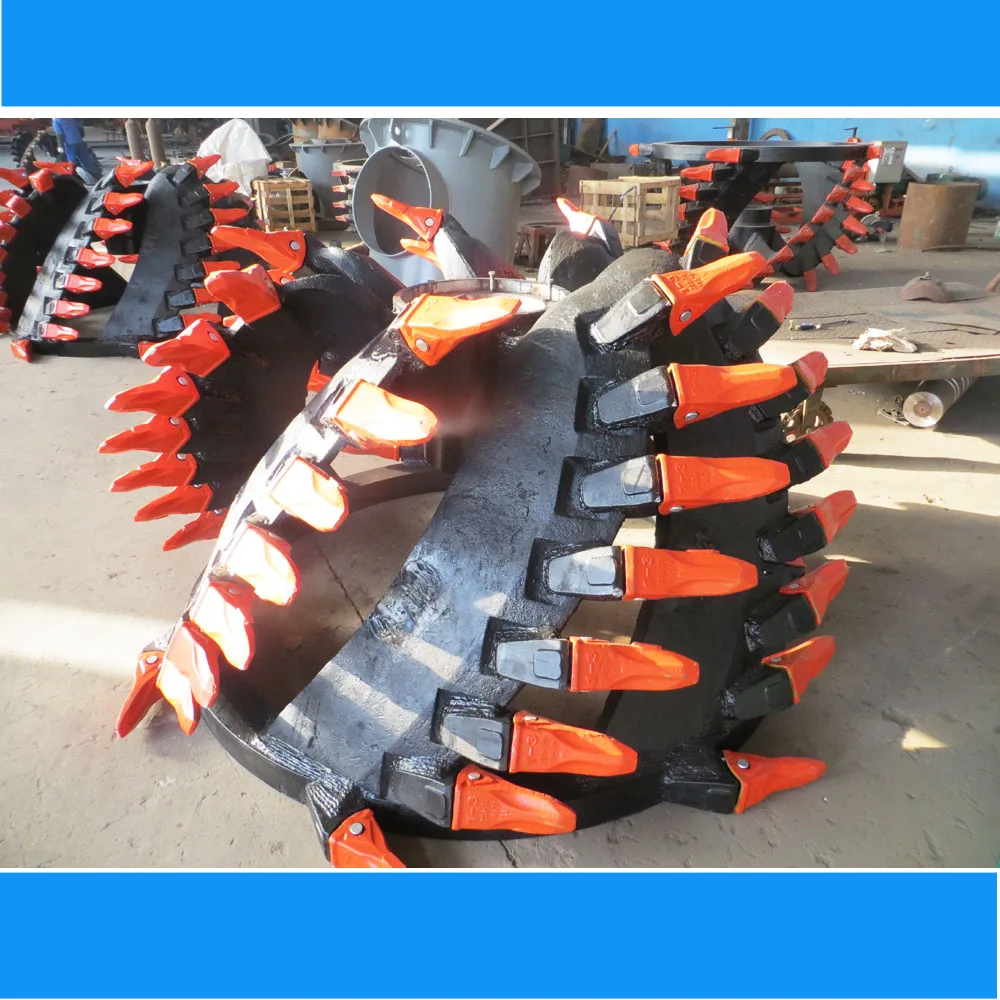

B. Sand mining dredger____ Cutter Head
Cutter head For one cutter head, there are 5 blade, 6 teeth equipped on one blade. There is material Cr. for easy-wearing proof. Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units. |

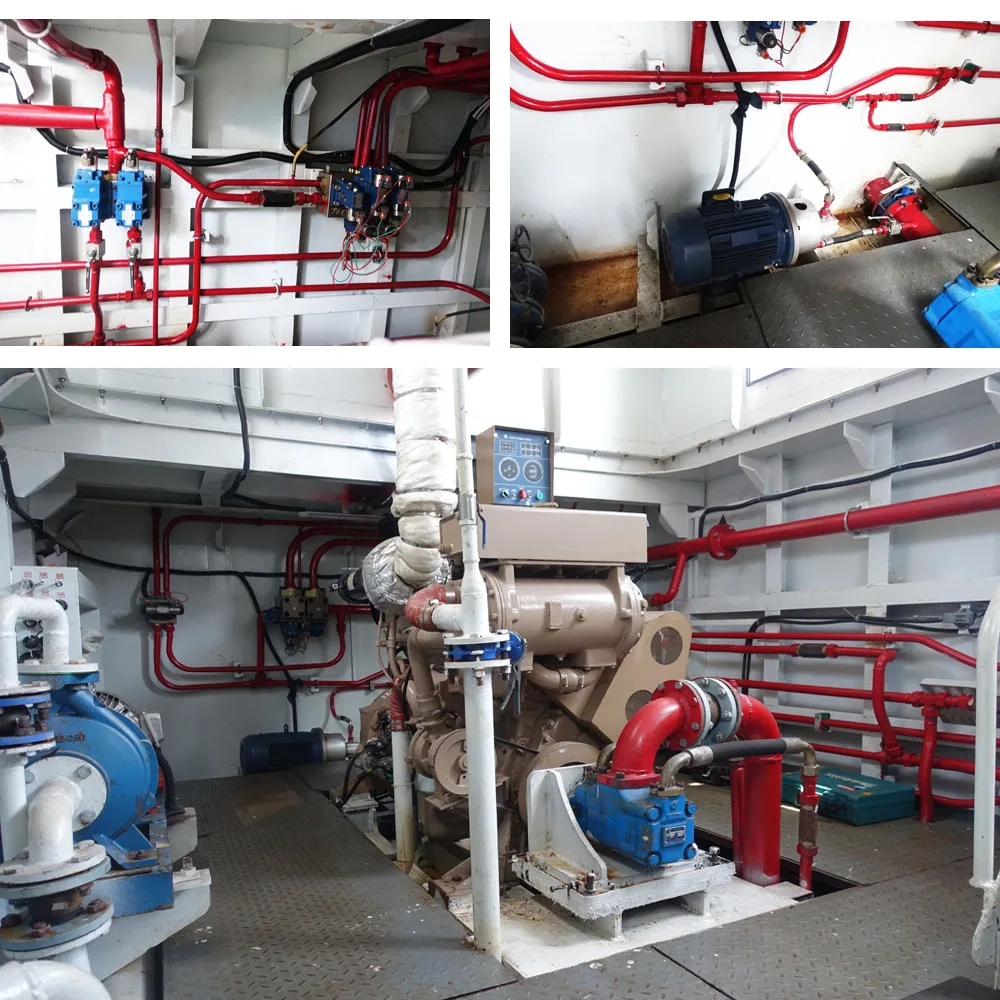

C. Sand mining dredger_____Hydraulic sysyetm
Hydraulic system: The most important parts of sand mining machine and wheel bucket dredger. The hydraulic system requirements are very high and strict; it’s the main artery of the entire sand mining dredger. Lateral traction winches, lifting winch and cutter head of the dredgers are driven by hydraulic motors. |
D. Sand mining dredger ___ Diesel engine____CUMMINS
Cummins engine Testing equipped on the discharge pipeline on the sand mining dredger. The sand mining dredger has Cummins engine and hydraulic system for easily operation. |

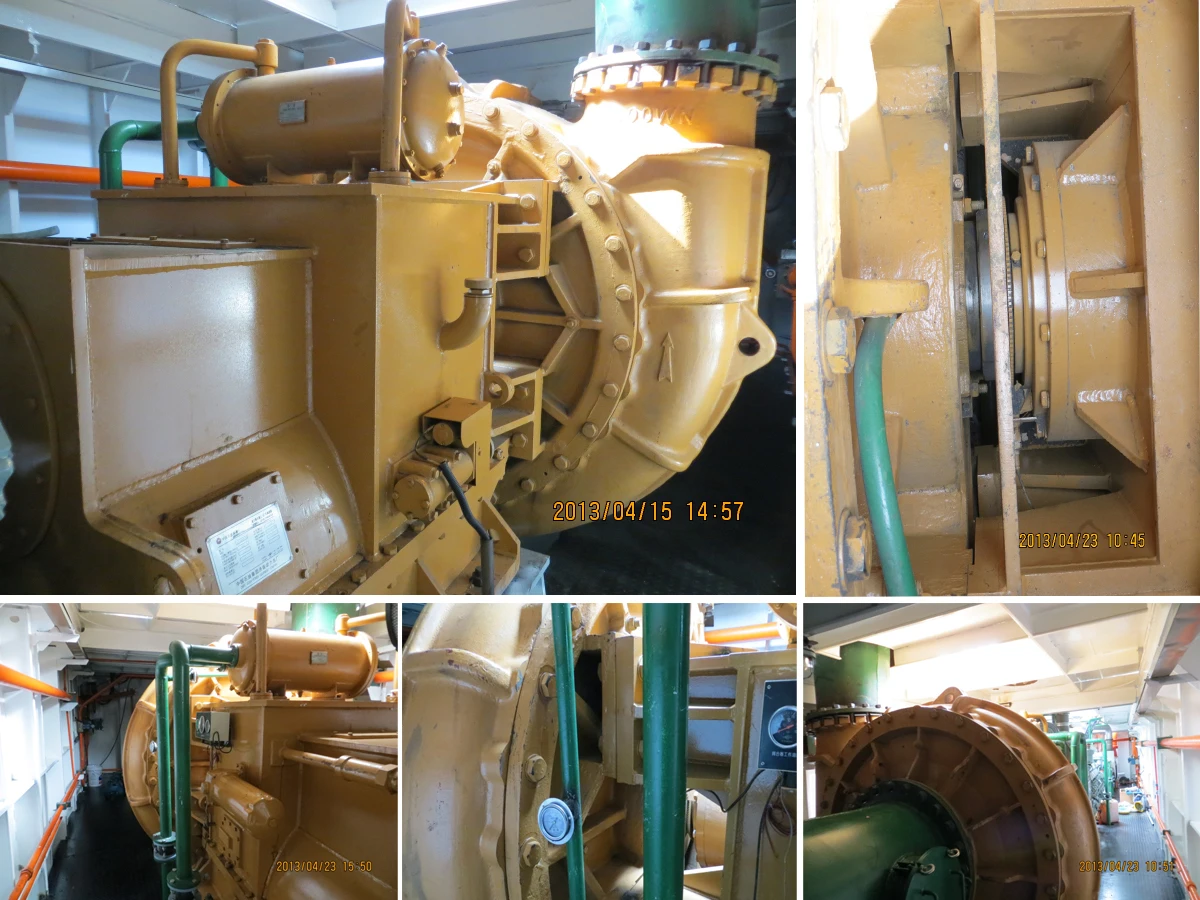

E. Sand mining dredger ______KINDA Pump
Warman Pump Flow passage components use High wear resistant alloy Cr27 to prolonged the pump service life, pump shaft seal use packing seal which is easy to maintain , and antifriction bearings are from Janpanese brand NSK. |

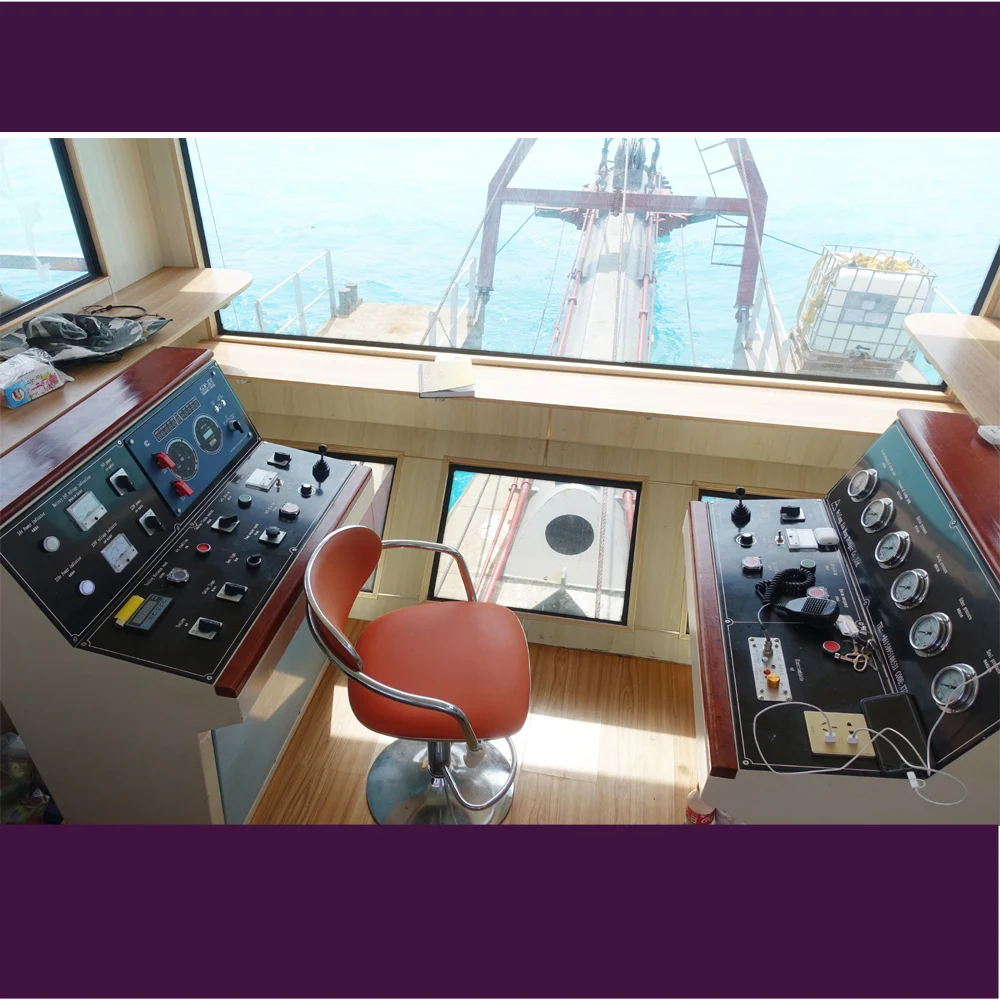

F. Sand mining dredger____ PLC control system SIEMENS
4. FAQ for Sand mining dredger
1). Sand mining dredger test before-ex-factory
Do your sand mining dredger have a test before ex-factory?
Answer: Yes, it must be. Each sand mining dredger must be tested very well before ex-factory so that can guarantee sand miningdredger performance at customers' working sites and save the time and cost for customers. Before test we will send invitation letters to the clients to invite them come and do the performance inspectation by themselves, after get the clients permition and the sand mining dredger will be transported to the port for loading. |

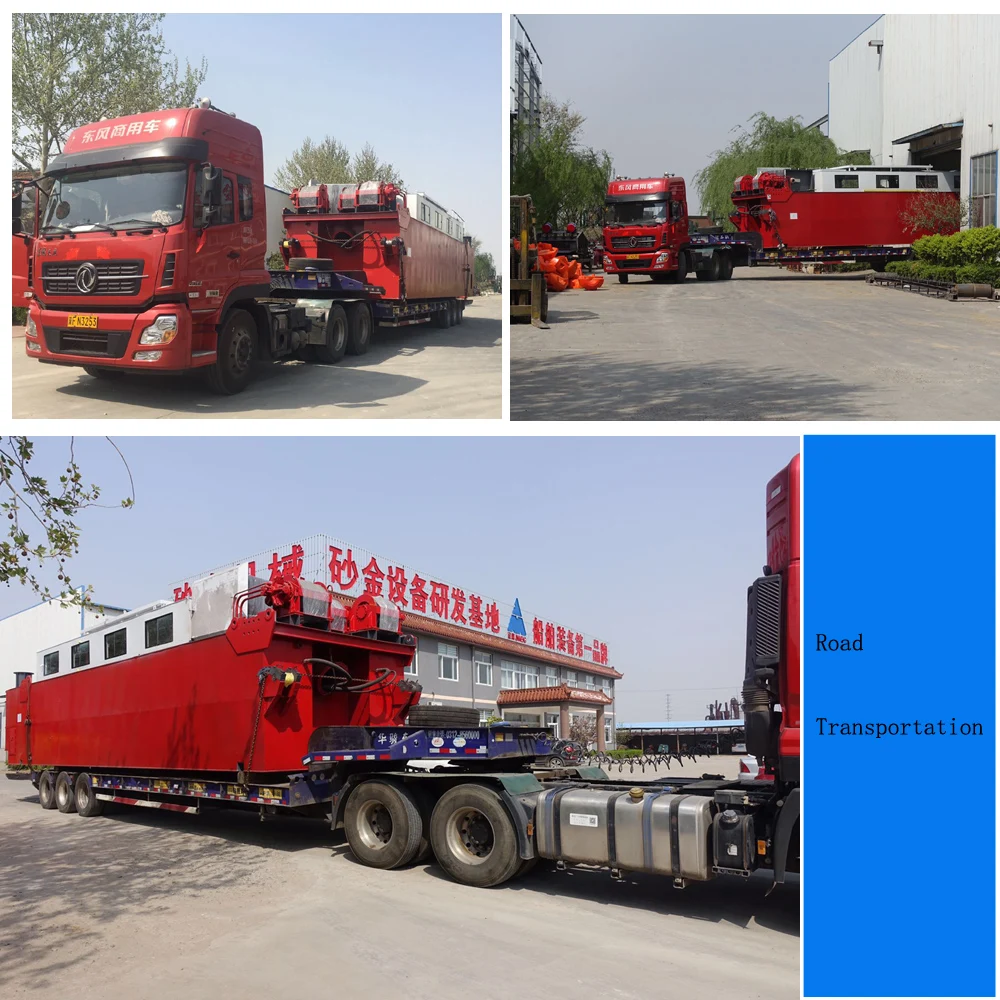

2). Sand mining dredger transportation
How is the sand mining dredger transported?
Answer: There are two ways for sand mining dredger being transported, if the sand mining dredger size smaller than JMD350, it is easy to transported by containers; if the sand mining dredger size is larger than JMD350, it will be transported by bulks. The sand mining dredger structure is dismountable and assembled so that can be easy transported by trucks on road. |
3). Sand mining dredger after sales service
What kind of service will supply after sales?
Answer: After sand mining dredger arrive at clients' working site, we will send two experienced enginneers for sand mining dredger body assembly and native workers' training. With the asist of ancillary equipment like excavators and cranes , the sand mining dredger assembly can be finished within 10days and training can be in one week. |
5. Welcome customers to have a visit in our factory, cars are availabe to pick you up from airport and train stations,so that we can talk sand mining dredger business and more details face to face.
6. Company Culture
Innovation Profession Integrity
