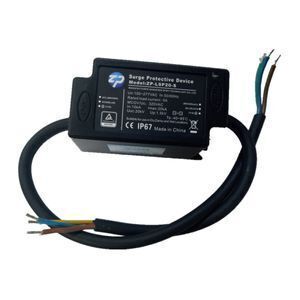

10kA/20kV High Energy LED Power SPD Surge Protect

Supplier: Shenzhen ZPWY Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr James Wu
Price: $4.10 / >=150 pieces
Min. Order: 150 pieces

Click here to contact

Product details

Size:	L79W43H38mm;	Place of Origin:	Guangdong China;
Application:	Power Supply System;	Connection Mode:	Series Connection;
Output Voltage:	277VAC;	Structure:	WIth all kinds of electronics components;
Product Name:	10kA/20kV High Energy LED Power SPD Surge Protect;	Power:	AC;
Output Power:	1000W;	Output Frequency:	50Hz/60Hz;
Supply Ability:	20000 Piece/Pieces per Week;	Payment Terms:	D/A,D/P,T/T,Western Union;
Input Voltage:	100VAC;	Output Current:	5-20KA;
Function:	Protection;	Color:	Black;
Brand Name:	ZP;	Model Number:	ZP-LED-S20A;
Protection Level:	IP67;	Certified:	CE;
Port:	Shenzhen,China;

Part Number	ZP-LED-S20A
Rate supply Voltage/Un(VAC)	100-277V
Maximum Continuous OperatingVoltage/MCOV/Uc(VAC)1	320V
Rated load current/1L(A)	5A
Nominal Discharge Curren/ln(KA)2	10KA
Maxmum Discharge Curren/lmax(kA)3	20KA
Open Circuit Voltage/Uoc(kV)	20KV
Voltage Protective level/Up(V)4	<=1.5KV(L-N,L-G/PE,N-G/PE)
Wire for terminal	Hose cable(0.75mm2)
Connection mode	Series connection
Power System	TN
Protection Degree	IP65
Ambient Temperature	-40℃~+85℃
IEC 61643-11 Test Classification	Test Class 2 and 3
EN 61643-11 Type Classification	Type 2and3

Q1: How to install?

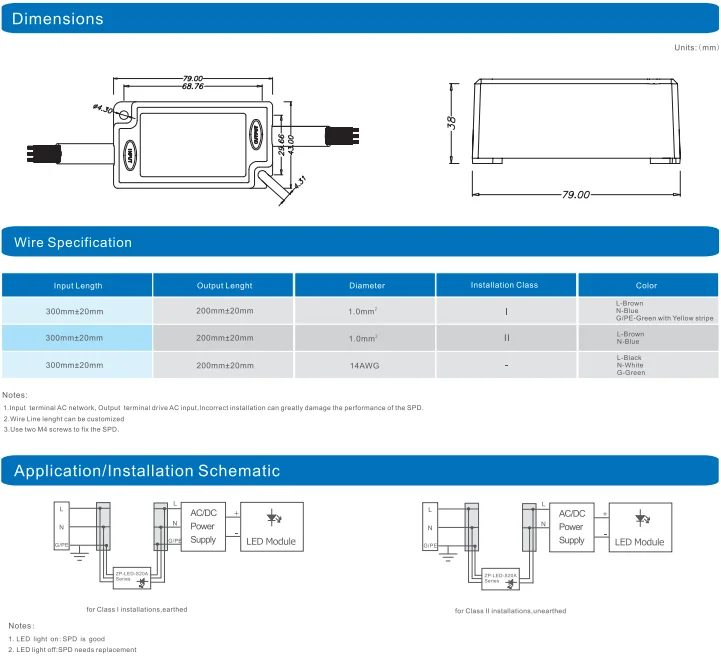

Answer: the product can be installed inside the lamp or inside the lamppost. The product can reserve the screw mounting hole to facilitate the installation and fixation of the product.

Q2:Do you accept customized order?

Answer: we have a professional R & D team that can provide customized products and services to customers and provide OEM and ODM foundry.

Q3: What's the delievery time?

Answer: our product's production cycle is one week, and its monthly production capacity is about 150 thousand.

Q4:What are the terms of payment?

Answer: the payment method we can accept is payment to the delivery, or 50% deposit in advance, and the remaining 50% payment should be paid before delivery.

Q5:Quality warranty?

Answer: the product warranty period is three years, quality problems occur during the warranty period, and new products are replaced free of charge. The service can be extended to extend the warranty period.

Q6:What mode of transportation?

Answer: we can provide shipping and air transportation according to customer's requirements.
