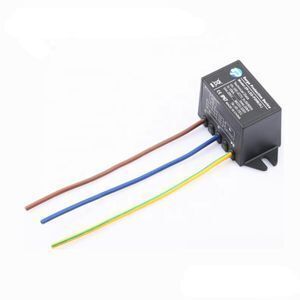

High Power LED SPD P20B(3L) For Street Lamp

Product details
Output Frequency:50Hz/60Hz;Output Current:5-20KA;
Nominal Operating Voltage/Un:100~277VAC;Payment Terms:L/C,T/T;
Size:L74*W33*H32mm;Ingress Protection:IP67;
Nominal Discharge Current/In:10kA(8/20us);Port:Shenzhen,China;
Input Voltage:100VAC;Certification:CE Approved;
Package Preview:;Packaging Detail:Selling Units: Single item Packing quantity: 10pcs/BOX,100pcs/CTN Packing size: 42.8X22.2X20.5cm Gross weight of packing: 11kg/CTN Package Type: Carton (Customized packaging is available);
Place of Origin:Guangdong China;Maximum Continuous Operating Voltage:320VAC;
Brand Name:ZP;Supply Ability:10000 Piece/Pieces per Week;
Model Number:ZP-LED-P20B(3L);Output Voltage:277VAC;
Output Power:1000W;Open-Circuit Voltage/Uoc:20kV(1.2/50us);
Maximum Discharge Current/Imax:20kA(8/20us);Warranty:5 years;
Protection Level/Up:1.5kV;

High Power LED SPD P20B(3L) For Street Lamp





Part Number



ZP-LED-P20B(3L)



Rate supply Voltage/Un(VAC)



100-277V



Maximum Continuous OperatingVoltage/MCOV/Uc(VAC)



320V



Nominal Discharge Curren/ln(KA)



10KA



Maxmum Discharge Curren/lmax(kA)



20KA



Open Circuit Voltage/Uoc(kV)



20KV



Voltage Protective level/Up(V)



<=1.5KV(L-N,L-G/PE,N-G/PE)



Wire for terminal



Hose cable(1.5mm2)



Connection mode



Parallel connection



Power System



TN



Protection Degree



IP67



Ambient Temperature



-40℃~+85℃



IEC 61643-11 Test Classification



Test Class 2 and 3



EN 61643-11 Type Classification



Type 2 and 3



Our company has our own independent intellectual property rights and strictly operates in accordance with the ISO9001 quality management system and IS014001 environmental management system. And our products have passed TUV, CE, UL and other international certifications, complying with EU RoHS environmental protection requirements.

Q1: Is the sample available and free?

A1: Sample is available, but the sample cost should be paid by yourself. The cost of sample will be refunded after further order.

Q2: Do you accept customized order?

A2: Yes, we do. OEM and ODM are accepted.

Q3: What's the delivery time?

A3: It usually takes 7-15days after confirming payment, but specific time should be based on the quantity of the order.

Q4: What are the terms of payment?

A4: The payment we can accept is payment against delivery, or 50% deposit, and the remaining 50% should be paid before delivery.

Q5: Quality warranty?

A5: The quality guarantee period is five years. If any problem happens, please contact our after-sales staff, we will give you the optimal solution.

Q6: What are the modes of transport?

A6: we can provide shipping and air transportation according to customer's requirements.

Q7: Are you a manufacturer or trading company?

A7: We are a manufacturer with more than 10 years experience.
