Packaging Detail: | Packed by Wood or As Clients Require; | Test Passed: | NDE/LT/PT; |
Certification: | CCS/LR; | Design Temperature: | -196 °C/+20 °C; |
Capacity: | 20.8 M3; | Working Pressure: | 0.8 MPa/1.6 MPa/1.7 MPa/2.4 MPa; |
Maximum Operation Weight: | 34000 kg; | Insulation Type: | Super Vacuum Multi-layer Thermal Insulation; |
External Dimensions(l x W x H)(mm): | 6058X2438X2591; | Type: | Tank Container; |
Length (feet): | 20'; | Payment Terms: | L/C,T/T; |
Acid-proof/Alkaline-Proof: | Yes; | Tank Container Usage: | Liquid Gas Storage; |
Tank Container Material: | S204/S304/316L/SA516/Q345R; | Brand Name: | SEFIC; |
Place of Origin: | Shanghai China; | Tank Color: | White With Blue Frame; |
Port: | Shanghai; | Supply Ability: | 100 Set/Sets per Month T75 Tank Container; |
Tank Container Standard: | GB150/ASME; |
SEFIC 20ft 20.8 M3 GB150/ASME T75 Tank Container Shipping Container
ISO Tank Container Description:
Tank Container
1.Capacity:20.8m3
2.WP:0.8/1.6/1.7/1.8/2.4MPa
3.Standard:GB150/ASME
4.Certification:CCS/LR
ISO Tank Container Introduction:
A tank container is built to the ISO Standard, making it suitable for different modes of transportation. Both hazardous and non-hazardous products can be transported in tank containers.
ISO Tank Container Specification:
Model Number | SEFIC-T75 |
Tank Container Standard | ASME/GB150 |
Tank Container Capacity | 20 M3 |
Working Pressure | 1.6 MPa |
Design Pressure | 2.1 MPa |
Tank Container Medium | LOX/LIN/LAr/LCO2/LNG/LC2H4 |
Insulation Type | Multi-layer Super Vacuum Thermal Insulation |
Overall Dimension | 6058 mm X 2438 mm X 2591 mm |
Maximum Loading Weight | 34000 kg |
Test Report | RT/Ultra/Impact/PT/HT/Helium Test/Painting Report |
Certification Provided | BV/CCS/LR |
Delivery Time | 90 Days After Deposit Received |

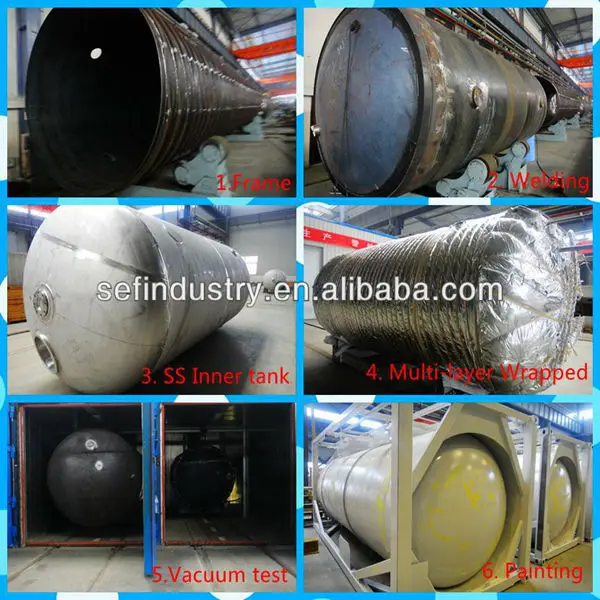

ISO Tank Container Production Process Picture:

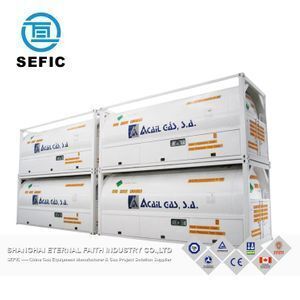

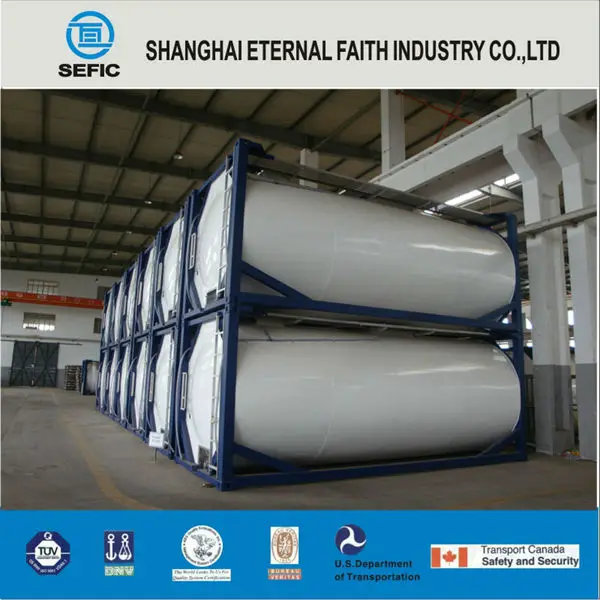

ISO Tank Container Picture-1:

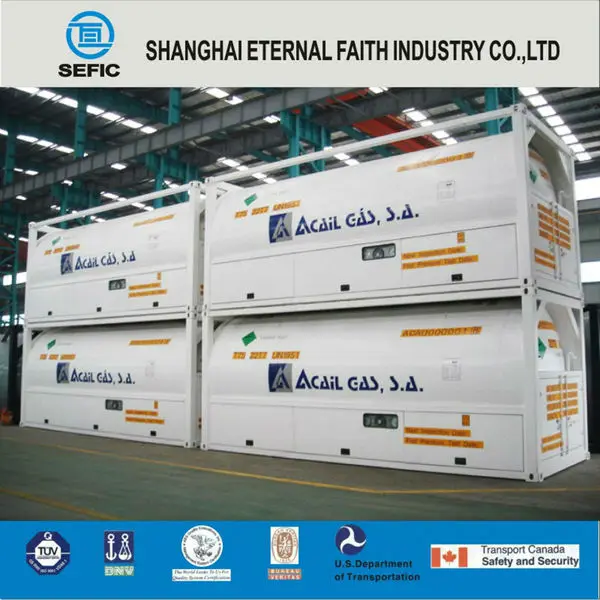

ISO Tank Container Picture-2:

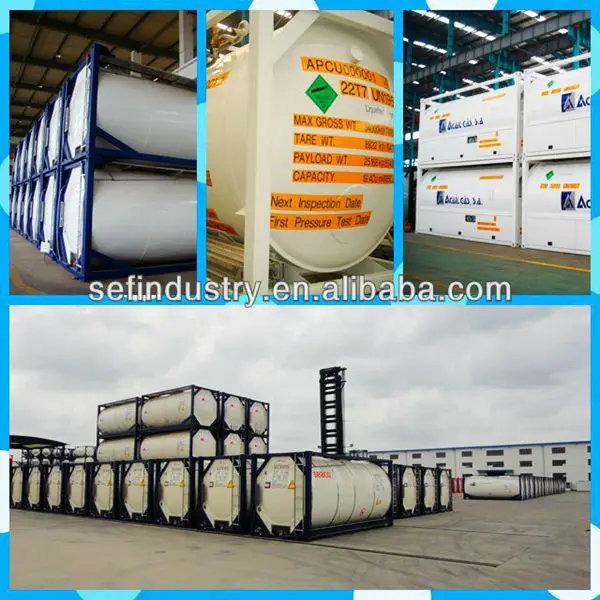

ISO Tank Container Packaging:
