ISO Standard LNG Liquid Storage Tank Price

Supplier: Shanghai Eternal Faith Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr David SEFIC
Price: $10000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Key Selling Points:	Competitive Price;	Working Pressure:	0.8/1.6/1.7/1.8/2.4MPA;
Capacity:	42M3;	Max Working Pressure(MPa):	2.4 MPa;
Packaging Detail:	PACKED BY WOOD OR BY CLIENTS REQUIREMENT Nitrogen Gas Tank Container;	Experice:	10 years;
Place of Origin:	Shanghai China;	Payment Terms:	L/C,T/T;
Material:	Q345D;	Local Service Location:	None;
Water Capacity:	42000L;	Insulation:	high vacuum multi-layer;
Certification:	ASME CCS/LR/DNV;	Port:	Shanghai;
Loading Medium:	LNG;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Design Standard:	ISO Asme CCS/Lr/Dnv;	Weight:	18800KG;
Warranty:	12 month;	Supply Ability:	30000 Unit/Units per Year Nitrogen Gas Tank Container;
Applicable Industries:	Manufacturing Plant;	Design Temperature:	-196 Centigrade;
Dimension(LWH):	12192mmx2438mmx2591mm;	Max. gross weight:	36000Kg;
Condition:	New;	After-sales Service Provided:	Overseas third-party support available;
Showroom Location:	None;	Brand Name:	SEFIC;

ISO IMO7/ T75 Nitrogen Gas Tank Container

(1) Capacity: 42M3/42000L

(2) WP: 0.8/1.6/1.7/1.8/2.4MPA;

(3) Standard: GB150/ASME

(4) Certificate; CCS/LR/DNV

Introduction:

A tank container is built to the ISO Standard, making it suitable for different modes of transportation. Both hazardous and non-hazardous products can be transported in tank containers.

Technical Details:

(1) Model: ISO-T75 20M3-1.6MPA

(2) Standard: ASME

(3) Capacity: 42m3;

(4) WP: 1.6MPA;

(5) Design Pressure: 2.11MPA;

(6) Medium: Liquid Oxygen; Liquid Argon; Liquid Nitrogen; Liquid Natural Gas;

(7) Insulation: Multi-Layer super vacuum insulation;

(8) Dimension: 12192mmx2438mmx2591mm

(9) Max Loading Weight: 36000Kg ;

(10) Testing: RT / Ultra / Impact / Penetration / Cleaning / Heat Treatment / Pressure / Mechanical / Helium / Painting

(11) Certificate: LR

(12) Delivery Time: 60DAYS.

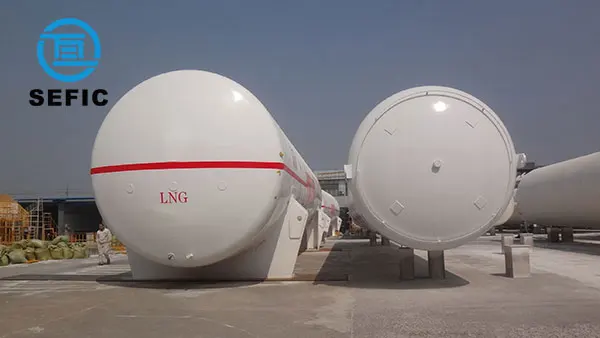

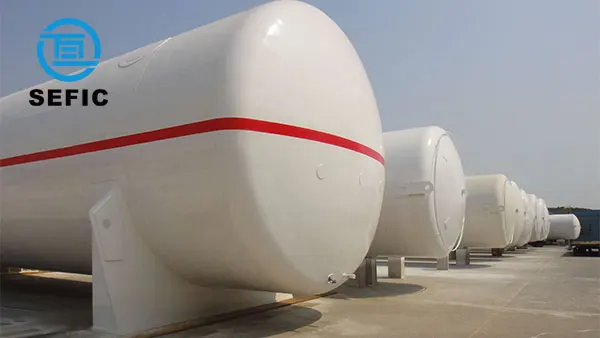

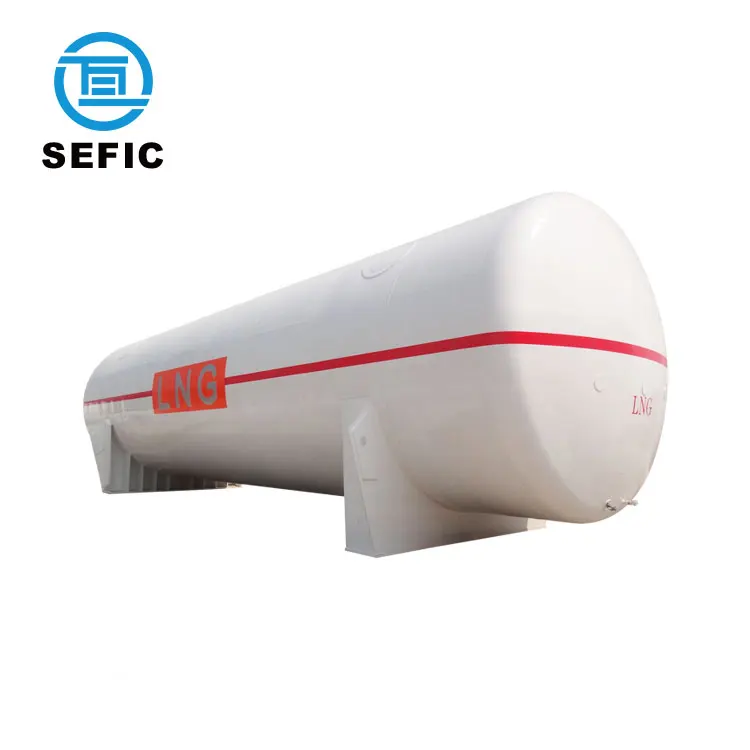

Tank Container Picture Show:

Tank Container Process picture:

Company Information

Located in Shanghai, SEFIC is a professional supplier of gas and gas equipment. Founded in the 90s, the company has already accumulated enough experience and became one of the best suppliers of all kinds of gas and gas equipment. Besides, it is one of the earliest in the country to gain the License of Pressure Vessel Type A2 and C2, ISO9001 and ISO14000 Certification, Private Hi-Tech Enterprise, Hi-Tech Enterprise, and Special Equipment Manufacture Permission. We almost can supply all kinds of gas cylinders with TUV, TPED, CE and DOT certification.Located s, vaporizeia, Africa countries, such as Angola and South Africa.

Quality and Safety:

We have implemented a strict and complete quality control system, which ensures that each product can meet the quality requirement of customers. In addition, all of our products have been strictly inspected before shipment. Our products have attained the CE/DOTTPED certification.

HIGH QUALITY

SEFIC has implemented a strict and complete quality control system, which ensures that each gas cylinder can meet quality requirements of customers, and all cylinders have been strictly inspected before shipment.

LOWER PRICE

SEFIC always supply the lower price! We never stop trying to find new ways to reduce the gas cylinder cost, so that we can offer our customers a competitive price. Cooperate with SEFIC, Choose a Trustworthy Partner!

QUICK DELIVERY TIME

We are committed to work hard to ensure that every shipment of the gas cylinders are safe, punctual arrival, we have a lot of partners which always provide the most rapid means of transportation.

GOOD SERVICE

SEFIC has different series and models, for different standards in different countries, and we are committed to providing the best service. Cooperate with SEFIC, Choose a Trustworthy Partner!

ORIGINAL Manufacturer

Cooperation with SEFIC to achieve the sales relationship from the manufactory to the customer, can improve the production and delivery efficiency of the gas cylinder.

LARGE OUTPUT

SEFIC has professional equipments for gas cylinders. We have the capability to produce more than 50, 000pcs of Gas Cylinders per month.

EXPORTING Experience

SEFUC has implemented a strict and complete quality control system, which ensures that each gas cylinder can meet quality requirements of customers, and all cylinders have been strictly inspected before shipment.

OEM ACCEPTED

We accept OEM work, SEFIC can manufacture gas cylinder handle, gas cylinder cap, gas cylinder valve, gas cylinder Mark and gas cylinder color as your required.

If you need help, please feel free to contact with us.

Best Regard!
