SG-GM380 semi-automatic desktop box/paper board cold gluing machine for small packaging box/carton

Supplier: Hangzhou Fuyang Sigo Office Supplies Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ella Ju
Price: $288.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Supply Ability:	100 Unit/Units per Week . Large Order for Gluing Machine, Pls Contact me.;	Automatic Grade:	Semi-Automatic;
Brand Name:	SIGO;	Driven Type:	Electric;
Max. gluing width:	380mm(15");	Gluing speed:	Can not Adjustable;
Condition:	New;	Packaging Detail:	SG-GM380 semi-automatic desktop box/paper board cold gluing machine for small packaging box/carton 1 pcs/wooden box Machine size: 863934cm Carton size: 723540cm G.W: 60KG;
Pacakge:	Wooden case;	Place of Origin:	Zhejiang China;
Max. gluing thickness:	80-400gsm;	Type:	Gluing Machine;
Packaging Material:	Paper;	Power:	180W;
After-sales Service Provided:	Engineers available to service machinery overseas;	Feed paper speed:	0-21m/min;
Dimension(LWH):	863934cm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Port:	Shanghai/Ningbo Port;	Packaging Type:	Case;
Application:	Apparel,Commodity,Food,Medical,Textiles;	Voltage:	110V/220V;
Certification:	CE ISO9001;	Application:	Box Package;
Sample:	Acceptable;	Weight:	60KG;
Mateiral:	Iron;	Consumables:	White Latex(Glue);
Product name:	Semi-automatic desktop box/paper board cold gluing machine;

Product Description

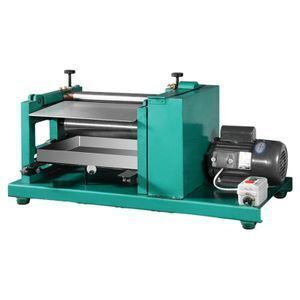

SG-GM380 semi-automatic desktop box/paper board cold gluing machine for small packaging box/carton
SG-720A Gluing Machine stainless steel desktop speed control glue machine is the printing and packaging industry, the paper on the special equipment, the machine uses a large number of stainless steel components, aluminum alloy components, greatly improving the corrosion resistance of the device, the machine uses advanced speed motor To meet the needs of a variety of paper on the plastic, the machine beautiful appearance, simple structure, smooth transmission, easy maintenance.

The machine consists of:

1. glue basin loading and unloading handle

2. with rubber roller

3. on the roller

4. pressure roller
5. Platen roller adjustment handle

6. Protective cover

7. Motor speed knob

8. Glue tray

9. Bracket

10. Manual handle and other components

Model	GM380	GM530	500A	720A	720B	720C
Type	Hot & cold gluing machine				Cold gluing machine
Max. gluing length	380mm	530mm	500mm	700mm	700mm	700mm
Max. gluing thickness	80-400gsm		40-300gsm
Speed	0-21m/min		0-23m/min
Cold gluing (white glue)	Yes
Hot gluing (hot melt glue)	No				Yes
Heating system	No				Yes
Machine weight	60kg	85kg	45kg	65kg	85kg	96kg
Machine size	863934	1215038	834535	1034535	1034555	1063282
Carton size	723540	873540	884738	1084738	1084758	1144987

Detailed Images

SG-GM380 semi-automatic desktop box/paper board cold gluing machine for small packaging box/carton

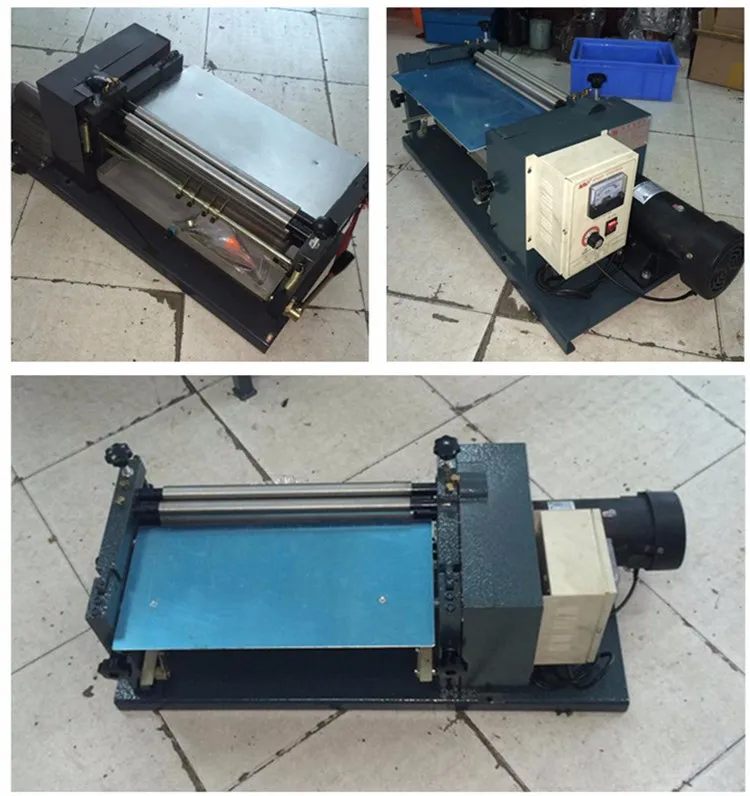

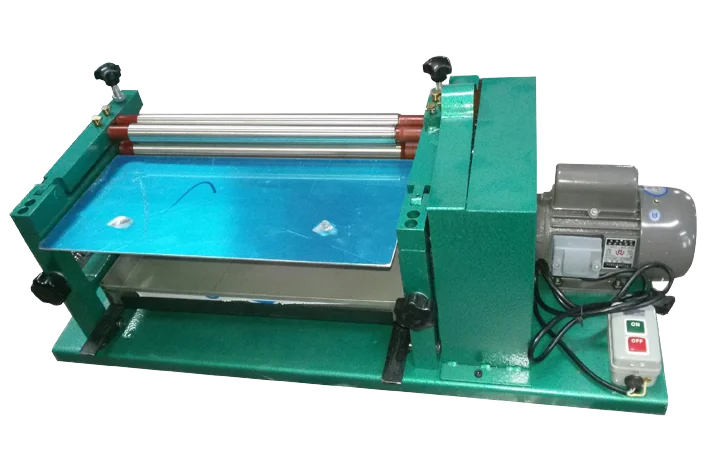

SG-GM380 & SG-GM530

All the body are stainless steel.

So that it can be make sure good quality.

It can be use more than 10 years.

steel roller

Perfect qualty for roller.

White glue

SG-720A is cold gluing machine. It have no heating system.

The consumables white glue can fit with this equipment.

Finished Products Shows:

User Manual

1.1 Installation:
The machine must be placed on the level of the face, not a serious tilt phenomenon, otherwise, will make the glue to the end of the accumulation of glue out of the water tray
1.2 test machine:
(200V / 50Hz) Turn on the power switch (the switch and the motor knob are in the same way) when the handle is turned manually (clockwise) A motor board, the motor speed control knob, the machine began to slow to fast rotation.

1.3 Adjustment:
A. The thickness of the adhesive layer adjustment: at the same time rotating rubber layer thickness adjustment handle (the handle left and right each one), so that with a rubber roller before and after the move, and the gap between the roll changes,
Satisfied thickness of the adhesive layer. Then, tighten the screw on the screw can be. Adhesive thickness adjustment range of 0.03 ~ 0.10MM.
B. Adjustment of the platen roller: Loosen the star handle on the handle (the left and right) of the platen roller to rotate the nut under it, and move the platen roller up and down. Which brought out the paper gap, pay attention: This gap should be at least greater than the above mentioned thickness of the adhesive layer. Otherwise it will make the paper roll with glue.
1.4. Disassembly of plastic disk:
The plastic frame structure for the parallelogram mechanism, simply press the counterclockwise direction gently pull the tray handle to the next limit can be removed, remove the plastic plate, let go, the frame will automatically reset, heavy Repeat the above procedures, can be installed on the plastic.

Maintenance and repair

1.When using the motor speed control knob, only slowly rotate until you are satisfied with the speed.
2.When the tray tray is reset, it must hold the glue tray to handle the handle and let it slowly reset.
3.The relative movement point must always add lubricating oil.
4.After each class, you must clean the machine residual glue to prevent corrosion of parts

Packing & Delivery

SG-GM380 semi-automatic desktop box/paper board cold gluing machine for small packaging box/carton

Certifications

Gluing Machine System Certification:
*GBT/TB28001-2011 Occupational health and Safety Management System;
*The generator passed CCC, CE,GS,SGS,EU2,SASO,SONCAP certifications, etc.

FAQ

Q1. Can I have a sample order for gluding machine?

A: SG-720A and SG-720B have 15years produce experience with very perfect quality. We welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity more than

Q3. Do you have any MOQ limit for gluing machine?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx , TNT or Airplane. It usually takes 4-7 days to arrive. Airlane and sea shipping also optional.

Q5. How to proceed an order for gluing machine?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on gluing machine?

A: No, we provide free sample without LOGO. If you need to do, you should pay for printing charge. And you can send your logo to us directly so that we can paste it on machine.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q8: Are you a factory or trading company ?

A: Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around 1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
