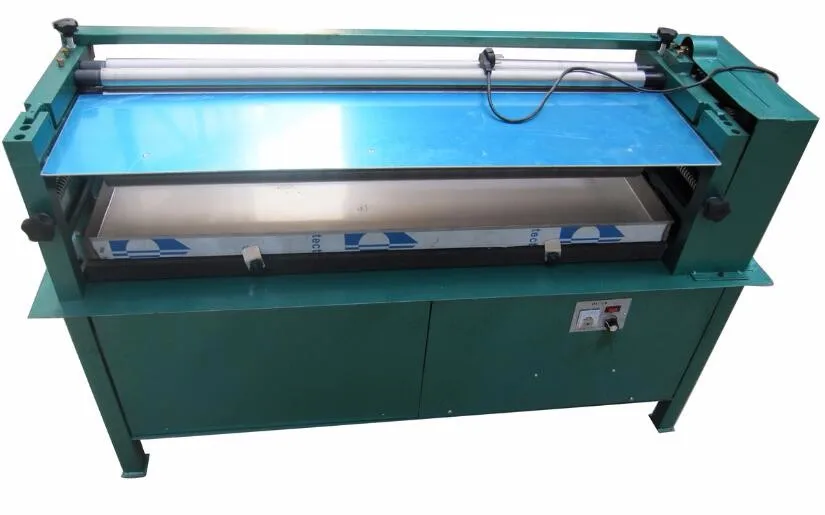

SG-720C High speed cheap automatic 28" cold and hot melt gluing machine with holder

Supplier: Hangzhou Fuyang Sigo Office Supplies Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ella Ju
Price: $620.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Consumables:	White Latex(Glue);	Warranty:	1 YEAR;
After Warranty Service:	Online support;	Applicable Industries:	Printing Shops;
Max. gluing thickness:	0.03-0.10mm;	Place of Origin:	Zhejiang China;
Brand Name:	SIGO;	Gluing speed:	Adjustable;
Certification:	CE ISO9001;	Automatic Grade:	Automatic;
Key Selling Points:	Easy to operate;	Product name:	SG-720C Cold and hot melt gluing machine with holder;
Holder:	Yes;	Condition:	New;
Driven Type:	Electric;	Local Service Location:	none;
Single package size:	108X47X58 cm;	After-sales Service Provided:	Online support,Engineers available to service machinery overseas;
Selling Units:	Single item;	Voltage:	110V/220V;
Packaging Type:	case;	Dimension(LWH):	1144987cm;
Feed paper speed:	0-23m/min;	Type:	Gluing machine;
Packaging Material:	PAPER;	Weight:	96KG;
Packaging Detail:	SG-720C High speed cheap automatic 28" cold and hot melt gluing machine with holder 1 pcs/wooden box Machine size: 1063282cm Carton size: 1144987cm G.W: 96KG;	Showroom Location:	none;
Single gross weight:	85.0 KG;	Application:	APPAREL,commodity,Food,Medical,Textiles,Box Package;
Mateiral:	Metal;	Max. gluing width:	720mm(28");

Product Description

SG-720C High speed cheap automatic 28" cold and hot melt gluing machine with holder

SG-720C is 720 mm paper gluing machine for printing and packaging area is designed with CE standard.

1. This 720 mm paper gluing machine for printing and packaging area is available to various medium (non-waterproof paper,waterproof paper,chrome paper,laser sheet,photo paper, gift box, etc).
2. Machine speed and gluing medium thickness can be adjusted.
3. Important parts inside are made of stainless steel with extraordinary reliability.
4. The Glue latexing machine is widely used in printing industry, albums, recipes, gift boxes and cartons and so on.
5. The performance of the Glue latexing machine is stable; and using advanced motor; This machine has beautiful shape, high efficiency, transmission balance, and low labor intensity.
6. The Glue latexing machine is no noise , high production effciency.

Model	SG-5000A	SG-720A	SG-720B	SG-720C
Type	Cold gluing machine	Hot&cold gluing machine	Hot&cold gluing machine	Hot&cold gluing machine
Max. gluing length	500mm	700mm	700mm	720mm
Max. gluing thickness	40-3000gsm	40-3000gsm	40-3000gsm	40-3000gsm
Speed	0-23m/min	0-23m/min	0-23m/min	0-23m/min
Cold gluing(white glue)	Yes	Yes	Yes	Yes
Hot gluing(hot melt glue)	No	No	No	No
Heating system	No	No	No	No
Machine weight	65kg	65kg	85kg	96kg
Machine size	1034535cm	1034535cm	1034555cm	1063282cm
Carton size	1084738cm	1084738cm	1084758cm	1144987cm

Detailed Images

SG-720C High speed cheap automatic 28" cold and hot melt gluing machine with holder

White glue

SG-720C is hot and cold gluing machine. It have heating system.

The consumables white glue can fit with this equipment.

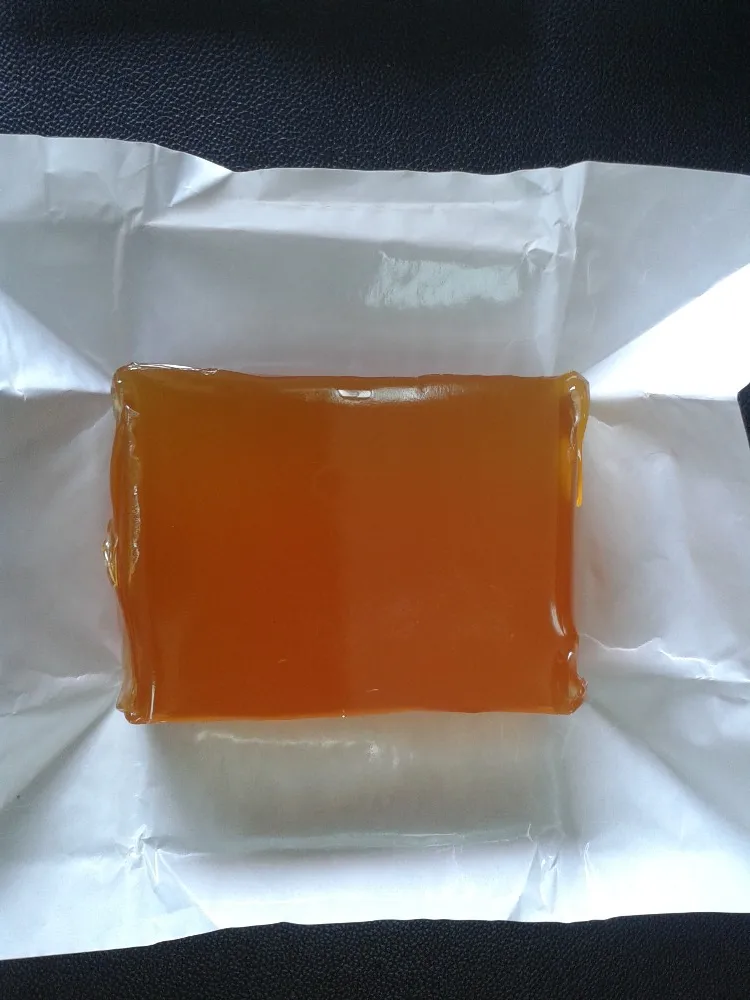

Hot melt glue

SG-720C is hot and cold gluing machine. It have heating system.

The consumables hot melt glue can fit with this equipment.

Finished Products Shows:

User Manual

1.1 Installation:
The machine must be placed on the level of the face, not a serious tilt phenomenon, otherwise, will make the glue to the end of the accumulation of glue out of the water tray
1.2 test machine:
(200V / 50Hz) Turn on the power switch (the switch and the motor knob are in the same way) when the handle is turned manually (clockwise) A motor board, the motor speed control knob, the machine began to slow to fast rotation.

1.3 Adjustment:
A. The thickness of the adhesive layer adjustment: at the same time rotating rubber layer thickness adjustment handle (the handle left and right each one), so that with a rubber roller before and after the move, and the gap between the roll changes,
Satisfied thickness of the adhesive layer. Then, tighten the screw on the screw can be. Adhesive thickness adjustment range of 0.03 ~ 0.10MM.
B. Adjustment of the platen roller: Loosen the star handle on the handle (the left and right) of the platen roller to rotate the nut under it, and move the platen roller up and down. Which brought out the paper gap, pay attention: This gap should be at least greater than the above mentioned thickness of the adhesive layer. Otherwise it will make the paper roll with glue.
1.4. Disassembly of plastic disk:
The plastic frame structure for the parallelogram mechanism, simply press the counterclockwise direction gently pull the tray handle to the next limit can be removed, remove the plastic plate, let go, the frame will automatically reset, heavy Repeat the above procedures, can be installed on the plastic.

Maintenance and repair

1.When using the motor speed control knob, only slowly rotate until you are satisfied with the speed.
2.When the tray tray is reset, it must hold the glue tray to handle the handle and let it slowly reset.
3.The relative movement point must always add lubricating oil.
4.After each class, you must clean the machine residual glue to prevent corrosion of parts

Packing & Delivery

SG-720C High speed cheap automatic 28" cold and hot melt gluing machine with holder

Certifications

Gluing Machine System Certification:
*GBT/TB28001-2011 Occupational health and Safety Management System;
*The generator passed CCC, CE,GS,SGS,EU2,SASO,SONCAP certifications, etc.

FAQ

Q1. Can I have a sample order for 720mm gluding machine?

A: SG-720A and SG-720B have 15years produce experience with very perfect quality. We welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity more than

Q3. Do you have any MOQ limit for fast speed gluing machine with holder?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx , TNT or Airplane. It usually takes 4-7 days to arrive. Airlane and sea shipping also optional.

Q5. How to proceed an order for cold and hot glue machine?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on paper gluing machine?

A: No, we provide free sample without LOGO. If you need to do, you should pay for printing charge. And you can send your logo to us directly so that we can paste it on machine.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q8: Are you a factory or trading company ?

A: Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around 1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
