Low price hot sale Dual Channel Medium Frequency Signal Generator with 20ppm Frequency Accuracy

Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Sophia Chen
Price: $66.25 /piece
Min. Order: 1 piece

Click here to contact

Product details

frequency stability:	±1ppm/3 hours;	Package Type:	Carton with spoam inside the box to protect Dual Channel Medium Frequency Signal Generator PE foam and carton for sample. PE foam, carton, packing strap and plastic wrap for bulk order.;
Selling Units:	Single item;	Brand Name:	metrontec;
Product Name:	Dual Channel Medium Frequency Signal Generator;	Model Number:	DS2800-15MHZ;
Place of Origin:	China;	application:	factory, school, laboratory;
Single package size:	22X16X8 cm;	Keywords:	signal generator;
wave length:	2048 points;	waveform sampling rate:	266MSa/s;
protection:	short circuit 60S will not be damaged;	waveform vertical resolution:	14 bits;
Single gross weight:	1 KG;	Frequency range:	0-15MHz;
Type:	signal generator;	frequency accuracy:	±20ppm;

HOT SALE SIGNAL GENERATOR

We can offer different style signal generator to meet for your Variety of needs,If you need samples, please contact us.

Low price hot sale Dual Channel Medium Frequency Signal Generator

Product Description

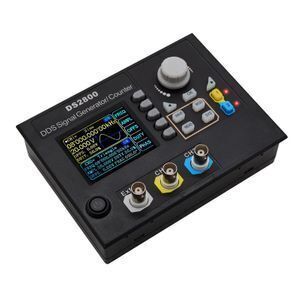

DS2800 series Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc. The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.

Product Parameter

Frequency characteristics
Model		DS2800-15MHZ
Sine wave frequency range		0~15MHz
Square wave frequency range		0~15MHz
Triangle wave frequency range
Pulse wave frequency range		0~6MHz
TTL digital wave frequency range
Arbitrary frequency range
Pulse width adjustment range		100nS~4000S
Square wave rise time		≤25ns
Frequency stability		±1ppm/3hours
Waveform characteristics
Waveform type		Sine,Square,pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangular wave, partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), half wave, full Wave, positive staircase wave, anti-ladder wave, noise wave, exponential rise, exponential drop, multisonic wave, Symplectic pulse and Lorenz pulse and 60 arbitrary waveforms
Wave length		2048 points
Waveform sampling rate		266MSa/s

Waveform vertical resolution		14-bits
Sine wave		Harmonic Suppression	≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
		Total harmonic distortion	<0.8%(20Hz~20kHz,0dBm)
Square wave and pulse wave		Overshoot	≤5%
Pulse wave		Duty cycle adjustment range	0.1%~99.9%
Partial sine wave		Duty cycle adjustment range	0.1%~99.9%
Sawtooth wave		Linearity	≥98%(0.01Hz~10kHz)
External measurement function
Frequency meter function		Frequency measurement range	1Hz~100MHz
		Measurement accuracy	Gate time 0.01S~10s continuous adjustment
Bursting function
Burst mode		Manual burst, CH2 burst, external burst (AC), external burst (DC)
General specifications
Display	Display type		2.4 inch TFT color LCD display
Interface	Interface mode		USB to serial interface
	Communication speed		Adopt standard 115200bps
	Protocol		Using the command line the protocol is made public
