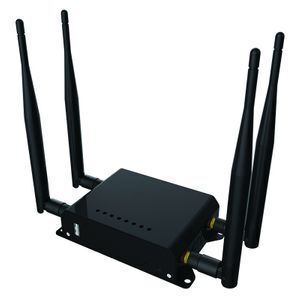

wholesale 300Mbps MT7620A 4g lte hotspots router for USA AT&T, T-Mobile

Supplier: Shenzhen Zhibotong Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Anna Lee
Price: $60.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Product name:	4g lte hotspots router;	Products Status:	Used;
2.4G Wi-Fi Transmission Rate:	300 Mbps;	Type:	Wireless;
LAN Ports:	4;	Function:	Firewall,QoS,VPN;
Application:	Enterprise;	Wireless Speed:	Up to 300Mbps;
Wireless standard:	802.11b/g/n AC could be support;	WAN Ports:	1;
Standards And Protocols:	Wi-Fi 802.11ac,Wi-Fi 802.11g,Wi-Fi 802.11n;	Certification:	CE FCC ROHS;
Single package size:	24X19X6.5 cm;	FLASH / RAM:	16MB / 128MB;
With Modem Function:	No;	Brand Name:	OEM;
System:	openWRT&lede;	Wired Transfer Rate:	10/100Mbps;
Package Preview:	https://sc01.alicdn.com/kf/HLB1cJ9Kbe6sK1RjSsrbq6xbDXXac.jpg_640x640.jpg;	Max. LAN Data Rate:	300Mbps;
Wi-Fi Supported Frequency:	2.4G & 5G;	Package Type:	hard carton wholesale 300Mbps MT7620A 4g lte hotspots router for USA AT&T, T-Mobile;
Encryption Type:	WPA-PSK;	Antenna:	4 * 5dBi;
Network:	FDD-LTE;	Wi-Fi Transmission Standard:	802.11ac;
Main Chipset:	MT7620A;	Protocol:	IEEE802.11b / g /n;
Selling Units:	Single item;	Single gross weight:	1 KG;
Max Power Consumption:	<12W;	Place of Origin:	Guangdong China;

wholesale 300Mbps MT7620A 4g lte hotspots router for USA AT&T, T-Mobile

America Version

This version is suitable for Americas, Emea, etc:

Frequency		Region
3G	B1/ B2/ B3/ B4/ B5/ B8	Americas,EMEA, etc
4G	B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B20/ B25/ B26/ B29/ B30/ B41	Americas,EMEA, etc

If this version is not suitable for you, please check the frame below and click the version you need:

Frequency

Region

FDD LTE:B1/B3/B5/B7/B8/B20
TDD LTE:B38/B40/B41
UMTS:B1/B5/B8
GSM:850/900/1800/1900MHz

Italy, Germany, Finland, Poland, UK, Netherlands etc

Click

LTE-FDD: B1/B2/B3/B4/B5/B6/B7/B8/B28

LTE-TDD: B40

WCDMA: B1/B2/B5/B8

GSM: B2/B3/B5/B8

Latin America, Australia, New Zeland, Taiwan

Click

Introduction

The WE826 uses the latest wireless solution, performs better and more function. Stable wireless performance, more functions, 2.4G 300Mbps, Also support 3G, 4G (3G,4G PCIE mode is necessary), it could also dial-up via the USB port (should mount the 3G,4G network card). Provide 1 USB2.0 interface, 1 Micro slot.

Feature

u Support 802.11A/802.11N/802.11G/802.11B network protocol, the max transmission rate could be 2.4G 300Mbps

u Support 802.113/802.11U protocol, 5* 10/100M bps Auto MDI/MDIX

u 1 USB 2.0 date interface

u 1 Micro SD Card Slot

u Support 3G/4G

u Many kinds of encryptions to protect your data transmission;

Specification

Hardware
Main Chipset		MT7620A
RAM		DDR2 128MB (MAX DDR2 256MB)
SPI FLASH		16MB (MAX 32MB)
Protocol		IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
RT Power		802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm;
Reception Sensitivity		802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER
Work Channel		2.4GHz choose :1-13 5GHz choose :149, 153, 157, 161, 165
Wireless Rate		Max 300Mbps
Work Frequency		2.4GHz
Antenna		4*detachable antennas
Interface		1PCI-E slot 1SIM card slot 1USB 2.0 port 1Micro SD card slot 110/100/100M WAN port(Auto MDI/MDIX) 410/100/100M LAN port(Auto MDI/MDIX)
LED		Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button		Reset/WPS
Max Power consumption		< 12W
Dimension(LWH)		*1418526MM*
Software
WAN Type	PPPoE,Dynamic IP, Static IP
Work Mode	AP; Router;
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwareding	Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security	Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding
DDNS	Support
VPN Pass-Through	PPTP, L2TP, IPSec (ESP Head)
Band Ctrl	Support
Static Router	Support
System Log	Support
Other Function	Mac clone NTP Synchronize Web firmware upgrade
Others
Work Environments	Operating Temperature:0℃ ~ 40℃; Storage Temperature:-40℃~ 70℃; Operating Humidity:10%~90% non-condensing Storage Humidity:10%~90% non-condensing
Adapter	12V 1A

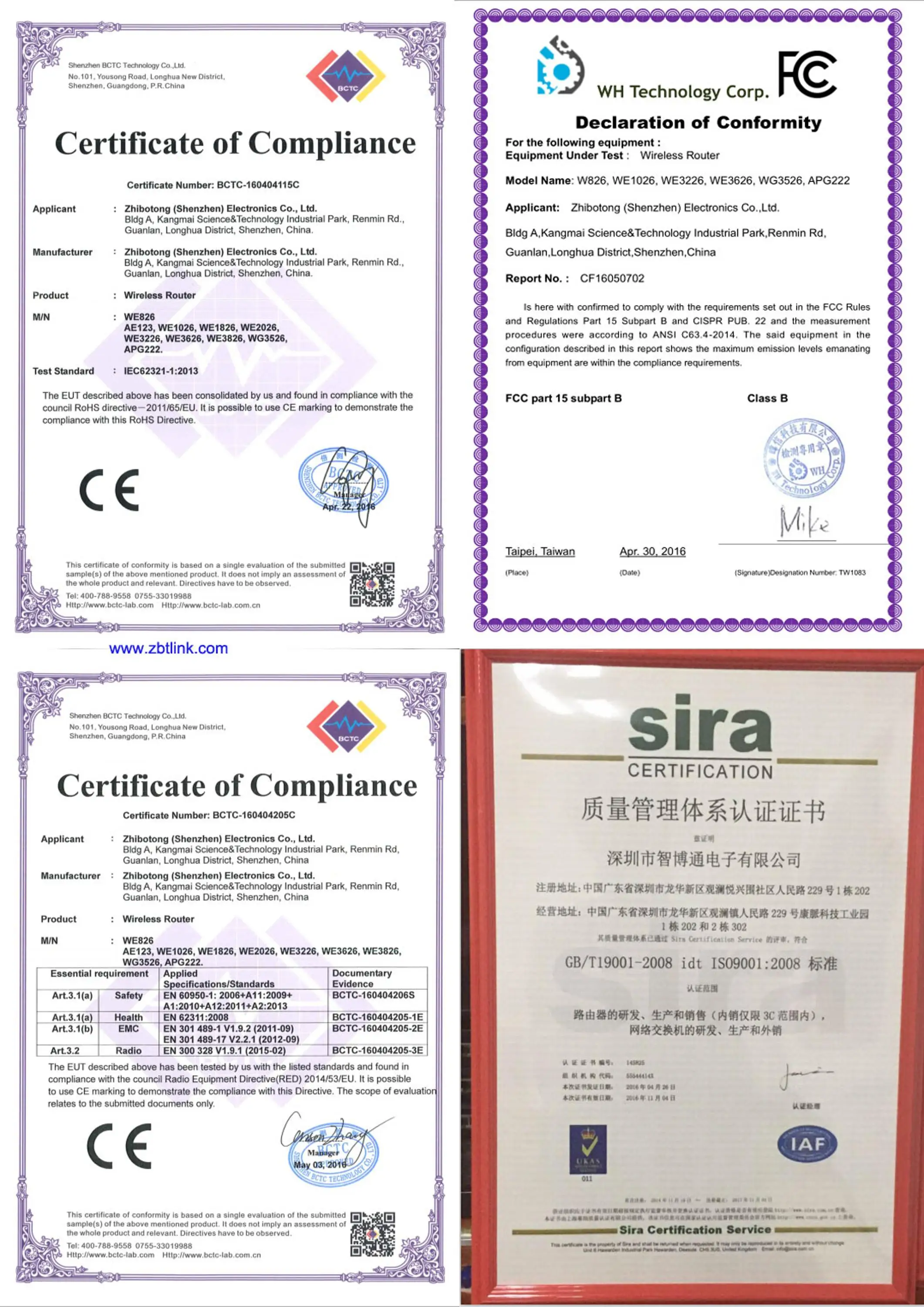

Authentication	CE, FCC, RoHs
Other accessories	Power adapter
