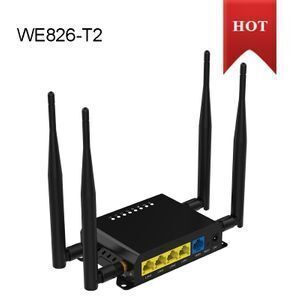

shenzhen zbt access point vpn gsm openwrt lte wireless wifi 3g 4g router with sim card slot

Supplier: Shenzhen Zhibotong Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Anna Lee
Price: $17.25 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Function:	Firewall,QoS,VPN;	Wi-Fi Supported Frequency:	2.4G;
Single gross weight:	0.7 KG;	Interface:	5*10/100M ethernet ports, 1 USB 2.0 port;
Type:	Wireless;	Package Preview:	https://sc02.alicdn.com/kf/HLB1nBAgXEjrK1RkHFNRq6ySvpXad.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB1exMhXtfvK1RjSspoq6zfNpXaq.jpg_640x640.jpg;
2.4G Wi-Fi Transmission Rate:	300 Mbps;	Selling Units:	Single item;
Wired Transfer Rate:	10/100Mbps;	Place of Origin:	Guangdong China;
Product name:	openwrt lte wireless wifi 3g 4g router with sim card slot;	WAN Ports:	1;
Certification:	CE FCC ROHS;	LAN Ports:	4;
Flash/Ram:	16MB/128MB;	With Modem Function:	No;
support:	An opition:add 3g 4g module;	Standards And Protocols:	Wi-Fi 802.11b,Wi-Fi 802.11g,Wi-Fi 802.11n;
Single package size:	28X18X8 cm;	Material/Dimentions:	metal case/1108030mm;
Antenna:	2 or 4* 5dBi ominderectional Antennas;	Max. LAN Data Rate:	300Mbps;
Main Chipset:	MT7620A;	Application:	Soho;
Wireless speed:	Upto 2.4Ghz 300Mbps;	Products Status:	Stock;
other Interface:	1 SD card 1 SIM card slot 1USB2.0;	Brand Name:	OEM;
Package Type:	gift box;	Wireless standard:	IEEE802.11b/g/n;
Wi-Fi Transmission Standard:	802.11n;

shenzhen zbt access point vpn gsm openwrt lte wireless wifi 3g 4g router with sim card slot

Warm Reminder

The above price is not including any 3G or 4G module.

That means that if you want to use SIM card to dial up Internet, you need to order 3G or 4G module.

Please ask me if you have any question about 3g or 4g wireless router before order here! Thanks!

Product Description

Hardware
Main Chipset	MT7620A
RAM	DDR2 128MB (MAX DDR2 256MB)
SPI FLASH	16MB (MAX 16MB)
Protocol	IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac ,IEEE802.11a IEEE 802.3,IEEE 802.3u
RT Power	802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; 802.11ac depends on the 11AC mode;
Reception Sensitivity	802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11AC mode;
Work Channel	2.4GHz choose :1-13 5GHz choose :149,153,157,161,165
Wireless Rate	Max 300Mbps
Work Frequency	2.4GHz
Antenna	2*detachable 5dBi antenna
Interface	1PCI-E slot 1SIM card slot 1USB 2.0 port 1Micro SD card slot 110/100/100M WAN port(Auto MDI/MDIX) 410/100/100M LAN port(Auto MDI/MDIX)
LED	Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button	Reset/WPS
Max Power consumption	< 12W
Dimension(LWH)	1418526MM
Software
WAN Type	PPPoE,Dynamic IP, Static IP
Work Mode	AP Router
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwareding	Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security	Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding
DDNS	Support
VPN Pass-Through	PPTP, L2TP, IPSec (ESP Head)
Band Ctrl	Support
Static Router	Support
System Log	Support
Other Function	Mac clone NTP Synchronize Web firmware upgrade
Others
Work Environments	Operating Temperature:0℃ ~ 40℃; Storage Temperature:-40℃~ 70℃; Operating Humidity:10%~90% non-condensing Storage Humidity:10%~90% non-condensing
Adapter	12V 1A
Authentication	CE,FCC,ROHS

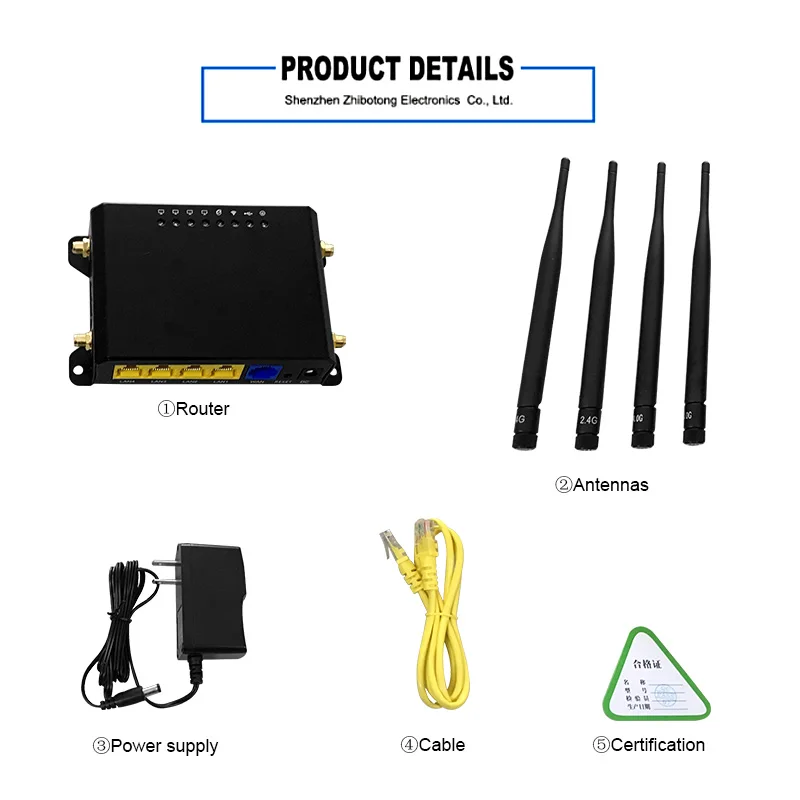

Other accessories
